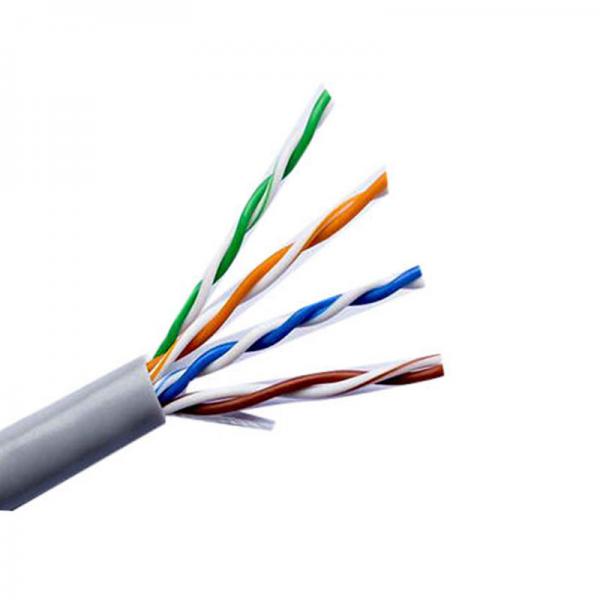

305m Roll Cat 5 Communication Cable RoHS 0.48mm 0.5mm Cat 5e UTP FTP SFTP
305m Roll Cat 5 Communication Cable RoHS 0.48mm 0.5mm Cat 5e UTP FTP SFTP image
Brand Name :
JHY CABLE
Model Number :
network cable
Certification :
RoHS/CE/CCC
Place of Origin :
SHENZHEN CHINA
MOQ :
10 boxes
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20 kilometer/ day
Delivery Time :
10~15 working days
Packaging Details :
305 meters per box or according to the customer’s request.
Conductor :
Plain annealed copper wire
Conductor Size :
0.35mm–0.52mm
Type :
Cat 5e
Insulation Material :
HDPE
Insulation diameter :
0.88-0.92mm
Jacket Material :
PE LSZH PVC
Jacket Outer Diameter :
5.0-5.5mm
Number of Conductor :
8
Cable length :
305m/box
unripe rope :
Yes
Certificate :
CE ROHS
Application :
computer, internet
UTP non-shielding ethernet cable Cat 5e patch cord cable with ripcord for network
Production Description:
1. Production Parameters
|
Item (n) |
structure (mm) |
Insulation Thickness (mm) |
Approx overall dia. (mm) |
| UTP Cat 5e | 4×0.48 | 0.90 | 5.2 |
| UTP Cat 5e | 4×0.50 | 0.91 | 5.3 |
| UTP Cat 5e | 4×0.52 | 0.93 | 5.3 |
| FTP Cat 5e | 4×0.48 | 0.92 | 6.4 |
| FTP Cat 5e | 4×0.50 | 0.94 | 6.5 |
| FTP Cat 5e | 4×0.52 | 0.96 | 6.5 |
2. Core Identification
3. Production Features
| Category | CAT5e 4Pair LAN Cable | |||
|
Conductor |
Material | Copper, CCA | ||
| O.D. | 24awg / 0.51mm | |||
|
Insulation
|
Material | HDPE | ||
| External O.D. | 0.92±0.02 mm | |||
|
Color |
Pair 1 – White/Orange & Orange Pair 2 – White/Blue & Blue Pair 3 – White/Green & Green Pair 4 – White/Brown & Brown |
|||
|
Jacket
|
Material | PVC | ||
| External O.D. | 5.2±0.1mm | |||
| Color | Customized | |||
|
Rip-cord |
Yes | Drain Wire | Customized | |
4. Company Certificates
ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.
5. Application
- 4-Pair Easily Identified Color-Striped Pairs
- Excellent Attenuation and Crosstalk Characteristics
- Exceeds EIA/TIA 568 C.2-1, CSA and ISO/IEC 11801 specifications
- ETL Listed, RoHS Compliant .
6. Tabular data
Construction
| 1. Conductor material: | Solid bare copper 0.50mm | |
| 2. Insulation material: | HDPE (High density Polyethylene) | |
| 3. Outer sheath material: | PVC | |
| 4. Rip cord: | Nylon |
Packaging
| Approx.Weight | Package | Package Dimension(cm) | Outer packing |
| 10.4 kg | 305 m per box | 36 x 36 x 21 |
Carton box |
7. Product Image
Product compare
Jinhuanyu product other products
Fluke Test Report
8. Company certificate
ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.
