300KN Breaking Load Anti Twist Wire Rope , Hot Dip Galvanised Steel Wire Rope

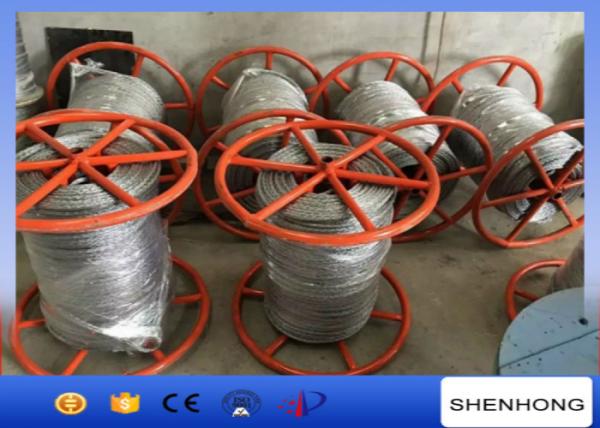

300KN Breaking Load Anti Twist Wire Rope , Hot Dip Galvanised Steel Wire Rope image
Brand Name :
SHENHONG
Model Number :
20
Certification :
ISO
Place of Origin :
MADE IN CHINA
MOQ :
1000M
Price :
USD2-3/m
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000M per day
Delivery Time :
15 days after deposit
Packaging Details :
with spool
Type :
Anti twist Wire Rope
Structure :
Hexagon with 18 strands
Standard Length (m) :
1000
Diameter :
20mm
Application :
Transmission Line Stringing
Breaking Load :
300KN
300KN Breaking Load Anti Twist Wire Rope , Hot Dip Galvanised Steel Wire Rope
Scope of application
This wirerope is widely applicable in electrical wiring, mining, high-lift hoisting machinery, ship bulding, port etc.
Wirerope description
This type is designed for specail engineering needs, and made of fine hot galvanized steel wire through specail production process. The wirerope is inter-braided with multiple strands into a rope with square or hexagonal and face.
As the center of the end face counteracts the resultant monent. The rope maintains torsion-proof when affected by force, and it greatly reduces corrosion and rust.
Parameters
Type | Nominal Diameter (mm) |
Structure | Weight (Kg/m) |
Wirerope Breaking Force(T) | Standard Length (m) |
||
Strand Structure | |||||||
1×19 | 1x19w | 1T25 1T29 | |||||
YS6-8×19 | 6 | Square8-Strand | 0.115 | 16 | 17.5 | 1000 | |
YS7-8×19 | 7 | Square8-Strand | 0.185 | 32 | 36 | 1000 | |
YS8-8×19 | 8 | Square8-Strand | 0.220 | 38 | 40 | 1000 | |
YS9-12×19 | 9 | Square12-Strand | 0.280 | 50 | 55 | 1000 | |
YS11-12×19 | 11 | Square12-Strand | 0.480 | 70 | 80 | 1000 | |
YS13-12×19 | 13 | Square12-Strand | 0.630 | 105 | 120 | 1000 | |
YS16-12×19 | 16 | Square12-Strand | 0.925 | 140 | 158 | 1000 | |
YS18-12×19 | 18 | Square12-Strand | 1.150 | 185 | 540 | 1000 | |
YS20-12×19 | 20 | Square12-Strand | 1.320 | 250 | 1000 | ||
YS22-12x1T25 | 22 | Square12-Strand | 1.882 | 320 | 1000 | ||
YS24-12x1T25 | 24 | Square12-Strand | 2.034 | 360 | 1000 | ||
YS26-12x1T25 | 26 | Square12-Strand | 2.350 | 420 | 1000 | ||
YS28-12x1T29 | 28 | Square12-Strand | 3.012 | 480 | 1000 | ||
YS30-12x1T29 | 30 | Square12-Strand | 3.320 | 540 | 1000 | ||
YL9-12×19 | 9 | Hexagon12-Strand | 0.297 | 50 | 1000 | ||
YL11-12×19 | 11 | Hexagon12-Strand | 0.480 | 70 | 1000 | ||
YL13-12×19 | 13 | Hexagon12-Strand | 0.630 | 105 | 1000 | ||
YL16-12×19 | 16 | Hexagon12-Strand | 0.925 | 140 | 1000 | ||
YL18-12×19 | 18 | Hexagon12-Strand | 1.150 | 185 | 1000 | ||
YL20-12×19 | 20 | Hexagon12-Strand | 1.320 | 250 | 1000 | ||
YL22-12xT25 | 22 | Hexagon12-Strand | 1.822 | 320 | 1000 | ||
YL24-12xT25 | 24 | Hexagon12-Strand | 2.034 | 360 | 1000 | ||
YL26-12xT25 | 26 | Hexagon12-Strand | 2.350 | 420 | 1000 | ||
YL28-12xT29 | 28 | Hexagon12-Strand | 2.882 | 480 | 1000 | ||
YL30-12xT29 | 30 | Hexagon12-Strand | 3.120 | 540 | 1000 | ||
YL13-18×19 | 13 | Hexagon18-Strand | 0.645 | 105 | 120 | 1000 | |
YL16-18×19 | 16 | Hexagon18-Strand | 0.925 | 140 | 158 | 1000 | |
YL18-18×19 | 18 | Hexagon18-Strand | 1.198 | 185 | 210 | 1000 | |
YL20-18×19 | 20 | Hexagon18-Strand | 1.598 | 280 | 300 | 1000 | |
YL22-18xT25 | 22 | Hexagon18-Strand | 1.898 | 389 | 1000 |
Breaking Force:
It's a tensile force value when the wirerope is broken. Based on the experiments analysis, the conclusion is that has obvious linear correlation between the breaking force of the steel wire rope and the diameter of the steel wire; the breaking force of rope has obvious linear correlation with the diameter, number of bends, tensile strengty.
We are China 300KN Breaking Load Anti Twist Wire Rope , Hot Dip Galvanised Steel Wire Rope manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: Anti Twist Wire Rope, galvanized steel wire rope, non rotating wire rope
