300/500V Soft Robotic Flexible Cables OFC Copper Conductor Control Drag Chain Of Robot Electrical Cable

300/500V Soft Robotic Flexible Cables OFC Copper Conductor Control Drag Chain Of Robot Electrical Cable image

Get a Quote Email to us

Brand Name :
JHY CABLE

Model Number :
TRVV cable

Certification :
CCC/ CE/ CB/ ISO

Place of Origin :
SHENZHEN CHINA

MOQ :
1000m

Price :
Negotiable

Payment Terms :
L/C, T/T

Supply Ability :
70 kilometer/ day

Delivery Time :
5~7 working days

Packaging Details :
100 meters per roll or according to the customer’s request.

Model :
TRVV

Conductor :
flexible copper

Insulation :
special PVC

Jacket :
special PVC

Rated Voltage :
300/500V

Package :
100 meters/roll

Application :
Industrial, Electrical Equipment

300/500V soft flexible OFC copper conductor control drag chain of robot electrical cable

Production Description:

1. Structure of TRVV cable

Conductor: multiply annealing bare copper stranding
Insulation: special PVC insulation
Sheath: special PVC sheath.
Rated voltage: U₀/U 300/500V

2. Characteristics

Methods: the superfine copper wire stranded conductor strand with VDE 0295, 6 class standard
Insulation resistance: minimum 200 Mohm x km
Temperature range: Fixed installation: -10℃ to +80 ℃； Mobile installation: -0℃ to +70 ℃
Bending radius: 5 x cable diameter

3. Technical data

Model	Nominal cross-section (mm²)	Stucture of conductor (No./mm)
TRVV	2×0.2	2×10/0.08AS x 4 strands
TRVV	2×0.3	2×10/0.08AS x 6 strands
TRVV	2×0.5	2×10/0.08AS x 10 strands
TRVV	2×0.75	2×20/0.08AS x 7 strands+10/0.08AS x 1 strands
TRVV	3×0.2	3×10/0.08AS x 4 strands
TRVV	3×0.5	3×10/0.08AS x 10 strands
TRVV	3×1.0	3×20/0.08AS x 10 strands
TRVV	4×1.5	4×20/0.08AS x 15 strands
TRVV	4×2.5	4×20/0.08AS x 25 strands
TRVV	5×1.5	5×20/0.08AS x 15 strands
TRVV	5×2.5	5×20/0.08AS x 25 strands

4. Application

It is suitable for power and control system of roberts and widely used in free bending or moving drag chain system without strong stress, no matter in dry or wet rooms, Suitable for robot, tank chain, UV printer, automation equipment, crane machine grinder and other equipment.

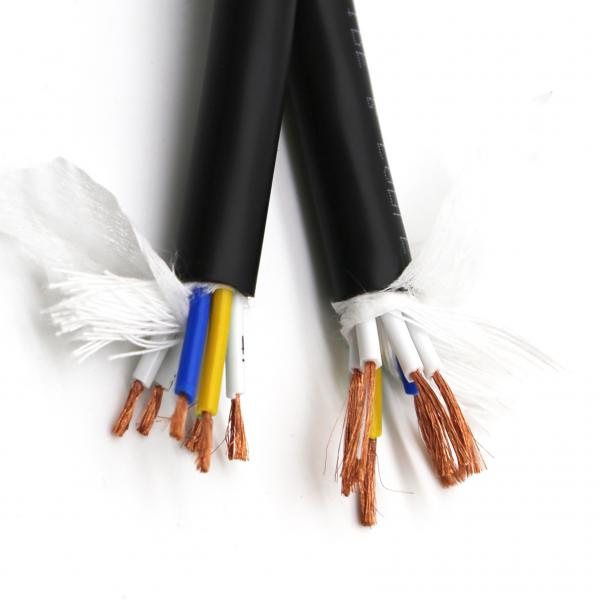

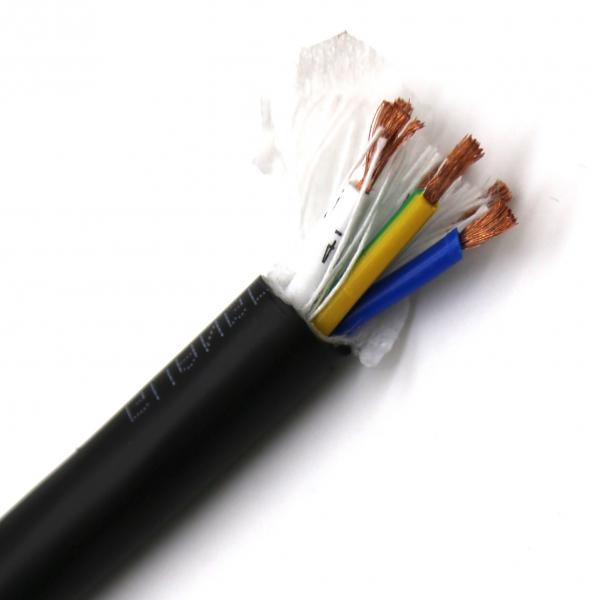

5. Product Image

6. Product standard

JB8734.3-2012, IEC 60227,TIS 11 part 3-2553

7. Company certificate

ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.

8. Company information

Company Contact Information:

OUR SERVICE

To provide quality products and excellent service are our missions. OEM and ODM are welcome.

Above we provide a wide range of products’ information, any further information you need please contact us as below:

Our entire team can serve you and look forward to working with you.

Shenzhen Jinhuanyu Wire and Cable Co., Ltd.

Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc

Company established time: Since 1993
26 years of cable manufacturing and sales experience
Annual sales of about 600 million US dollar
150,000 m2 Production area
Over 1000 Will-trained employees
4 industrial parks
Over 30 professional engineers R&D team

Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106

We are China 300/500V Soft Robotic Flexible Cables OFC Copper Conductor Control Drag Chain Of Robot Electrical Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.

300/500V Soft Robotic Flexible Cables OFC Copper Conductor Control Drag Chain Of Robot Electrical Cable

300/500V soft flexible OFC copper conductor control drag chain of robot electrical cable
