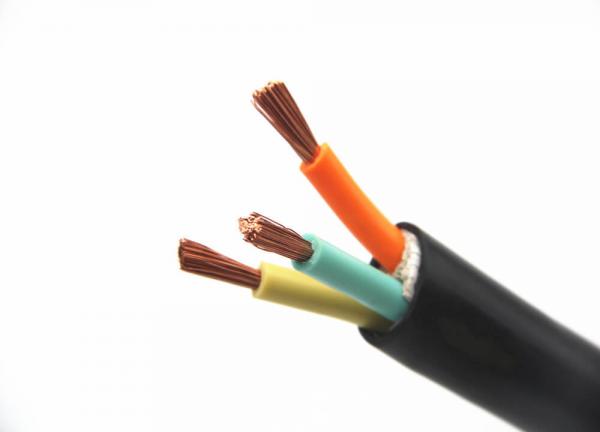

300/1100V Pvc Flexible Cable , Flexible Power Cable Customized Core Colours

300/1100V Pvc Flexible Cable , Flexible Power Cable Customized Core Colours image

Get a Quote Email to us

MOQ :
100m

Price :
USD 0.87-2.66/M

Payment Terms :
L/C, T/T

Delivery Time :
7 Days after received deposit

Packaging Details :
Wooden drum

Product name :
Flexible Electrical Cable

Conductor Type :
Flexible

Application :
Industrial,Household

Sheath color :
Optional

Conductor Material :
Pure Copper

Insulation Material :
PVC

Brand Name :
HOLD-ONE

low voltage flame retardant power cable

Flexible Electrical Cable

Conductors:	Conductor material Cu, bare.class1 or class2 acc to VDE0295(IEC60228/HD 383) Solid or stranded Green and Yellow available please see table below.
Core colours:	1 core: Green / Yellow 3 core: Green/Yellow, Blue, Brown 4 core: Green/Yellow, Brown, Black and Grey 5 Core: Green/Yellow, Blue, Brown, Black and Grey 7 core: Numbered
Insulation:	PVC
Sheath/Jacket:	PVC
Colour:	-O: without yellow/green core ; -J: with yellow/green core
Voltage:	Nominal voltage U0 300 V, Nominal voltage U 500 V
Max. conductor temperature:	70 °C
Operating temperature:	Flexible: -5°C to +70 °C, Fixed: – 40°C to +70 °C
Minimum bending radius:	1 core: 15 x diameter 3 core and above: 4 x overall diameter
Max short circuit temp:	160 °C

Flexible Electrical Cable Application

Applicable to the cables and wires of rated yolatage 450/750V and less than 450/750V AC for power
plant, householdelectrical applance,insurment and telecommunication equipment.
copper cable electric cable wire

Product Name		Flexible Electrical Cable
Coductor		Copper / Aluminum, based on client's requirements
Construction		Bare copper wire
		Insulation jacket
		PVC sheath
Colors		Assorted upon request
Voltage		300/1100V
Application		These cables are used in connecting for audio appliances,home appliances,small electric tolls and instruments.
Specifications		CCC ISO certificated
		Strict QC
		Prompt delivery
OEM/ODM		Available
Sample		Free, freight charge prepaid or negotiation

PACKING AND SHIPPING

We are capable of meeting the strictest delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.

We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.

We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!
