30 Cores Al – Foil Screen PVC Sheathed Industrial Control Cables , Copper Wire Multicore Screened Cable

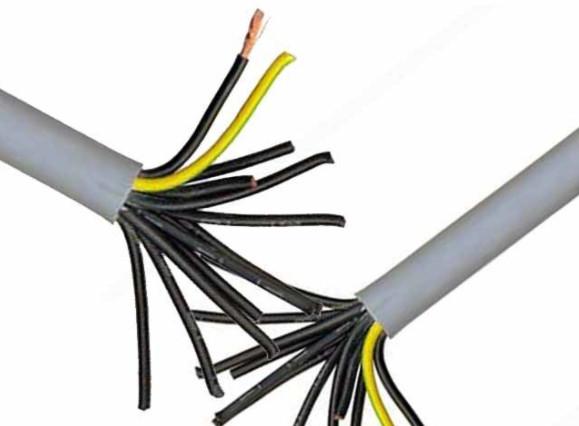

30 Cores Al – Foil Screen PVC Sheathed Industrial Control Cables , Copper Wire Multicore Screened Cable image
Brand Name :
JHY CABLE
Model Number :
KVVP
Certification :
ISO9001/ISO14001/OHSAS18001/CCC/CE/RoH
Place of Origin :
SHENZHEN CHINA
MOQ :
500M
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000M/Day
Delivery Time :
10~15 Days
Packaging Details :
100M/Roll or customer’s request
Application :
Construction,Industrial,Underground,Power Station,BUILDING
Type :
Control Cable
Conductor material :
Copper
Insulation material :
PVC
Jacket material :
PVC
Color :
blue,Black,yellow,red,Customized
30 Cores Al-foil Screen PVC Sheathed Control Cable Copper Wire Braid Screened Cable
1. Construction
Conductor:Copper/Tinned copper
Insulation:PVC/PE/XLPE
Shield: Copper Wire Braid, Al-foil Individual and Overall Screen/ unshielded
Armour: Steel Wire Armored/galvanized steel wire armoured/ unarmoured
Sheath: PVC / ZR-PVC / PE / LSZH
Standard:IEC,ASTM,BS etc.
Voltage:450/750V
Packaging:Iron or Wooden Drum.
2. Applications
2.1 Rated voltage U0/U should be 450/750~600/1000V
U0~valid of the voltage between main insulated conductor and earthing (metal shield ,metal sheath of environment dielectric).
U~vaild of voltage between any two phase conductor in multicourse cable or single core cable system.
when AC.System is applied ,the rated voltage of cables should be at least equal to the nominal voltage of the system .When DC.System is applied ;the nominal voltage of this system should not be more than the rated voltage of the system by 1.5 times.
2.2 The permitting long-term operating temperature of cable conductor should be PVC insulation :70℃
Chemical Sioplascable:90℃
Irradiation XLPE:105~135℃
3. Data sheet
| No. of core | Nominal cross-sectional area | No.& dia. of wires |
Thickness of insulation |
Thickness of sheath |
Overall diameter (Approx.) | Maximum conductor resistance (at20C) |
Minimum insulation resistance (at70C) |
Cable | Standard Length |
| weight (Approx.) | |||||||||
| mm2 | No./mm | mm | mm | mm | Ohm/km | Ohm/km | kg/km | m | |
| 30 | 0.5 | 7/0.30 | 0.8 | 1.8 | 22 | 36 | 0.0162 | 540 | 500/D |
| 0.75 | 7/0.37 | 0.8 | 1.8 | 23 | 24.5 | 0.0142 | 665 | 500/D | |
| 1 | 7/0.40 | 0.8 | 1.8 | 24 | 18.1 | 0.0135 | 725 | 500/D | |
| 1.5 | 7/0.50 | 0.8 | 1.8 | 26 | 12.1 | 0.0115 | 940 | 500/D | |
| 2.5 | 7/0.67 | 0.8 | 1.8 | 30 | 7.41 | 0.0093 | 1395 | 500/D | |
| 4 | 7/0.85 | 1 | 2 | 37 | 4.61 | 0.0092 | 2180 | 500/D | |
| 6 | 7/1.04 | 1 | 2.2 | 41.5 | 3.08 | 0.0078 | 2990 | 500/D |
4. Construction
| 1. Conductor material: | Copper Core | |
| 2. Jacket Material | PVC | |
| 3.Insulation Material | PVC | |
| 4.Jacket Colour | Black | |
| 5.Insulation Colour | Red, black, blue, yellow, white, green/yellow, grey, brown, or customer request |
5. Product Image
Company Information:
| OUR SERVICE | |
|
Shenzhen Jinhuanyu Wire and Cable Co., Ltd.
Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106 |
|
We are China 30 Cores Al – Foil Screen PVC Sheathed Industrial Control Cables , Copper Wire Multicore Screened Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: Flexible Control Cable, multicore control cable, shielded control cableSimilar Or Related
-
Up To 600 / 1000V Copper Conductor Cable , Flexible Control Cable PVC / XLPE Insulated Braiding
-
450/750V Multi Cores Shielded Control Cable 1.5mm2 Unarmored Copper PVC Sheath IEC Standard
-
30 Cores Al – Foil Screen PVC Sheathed Industrial Control Cables , Copper Wire Multicore Screened Cable
-
Copper Conductor Shielded Control Cable PVC Insulated Sheathed Tinned Copper Wire Braided
