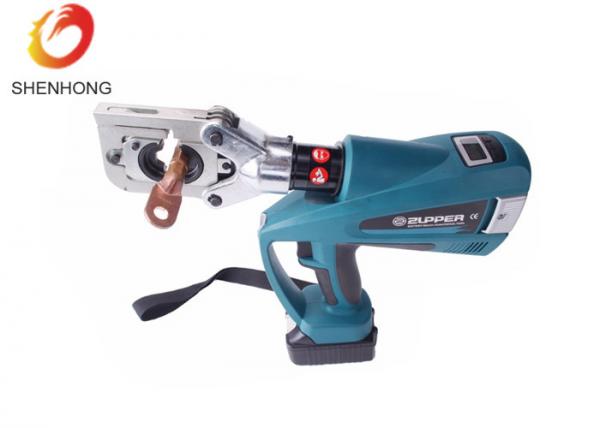

3 In 1 Function Battery Hydraulic Tool Copper For Aluminum Terminal Cable Lug Max Cutting 40mm
3 In 1 Function Battery Hydraulic Tool Copper For Aluminum Terminal Cable Lug Max Cutting 40mm image
Brand Name :
SHENHONG
Model Number :
NEC-300
Certification :
ISO
Place of Origin :
Jiangsu,China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
1000pcs per month
Delivery Time :
7days after payment
Packaging Details :
plastic box
Crimping type :
Hexagon
Crimping range :
16-300mm2
Crimping force :
60KN
Crimps per charge :
320 times (Cu 150mm2)
Name :
Electric Battery powered hydraulic crimping tools
Charging time :
45mins
3 in 1 function battery hydraulic tool copper for aluminum terminal cable lug,max cutting 40mm
Features:
- One tool for multifunction. crimping, cutting and punching
- Flip top style, easy connector pick&place, crimping head rotates 360°, suitable for different angle
- Built-in micro chip controller, protect tool body.
- Built-in safety valve, automatic preasure-relief at Max. preasure
- High power capacity, high performance 18V Li-ion battery with quick charger
- With working light, more convenient to work
Data Sheet
| Technical data | |
| Crimping force | 60KN |
| Stroke | 42mm |
| Cutting/Charge | 70times |
| Cutting Range | Ø40m(Cu/Al armoured cable) |
| Crimping range | 16-300mm2 |
| Punching range | Ø22.5-Ø61.5mm |
| Working cycle | 3-15s |
| Accessories | |
| Crimping dies | 16,25,35,50,70,95,120,150,185,240,300m2 |
| Punches&Die(type C) | 22.5,28.3,34.6,43.2,49.6,61.5mm |
| Blade | 1 set |
| Adapter for crimping | 1 pc |
| Adapter for punching | 1 pc |
We are China 3 In 1 Function Battery Hydraulic Tool Copper For Aluminum Terminal Cable Lug Max Cutting 40mm manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: cable installation tools, Underground Cable Installation Tools, wire installation toolsSimilar Or Related
-

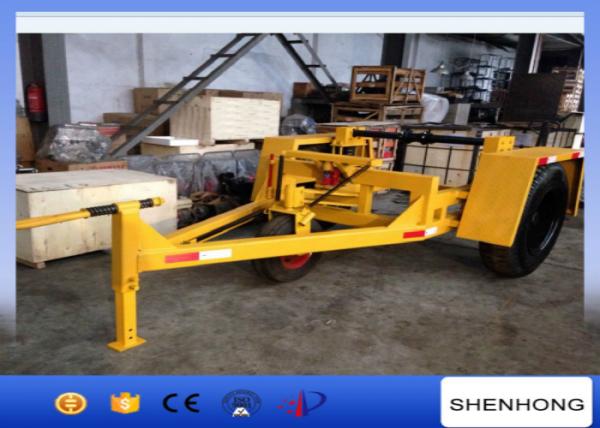

Cable Drum Trailer Underground Cable Installation Tools 2 Ton for Transport Cable
-

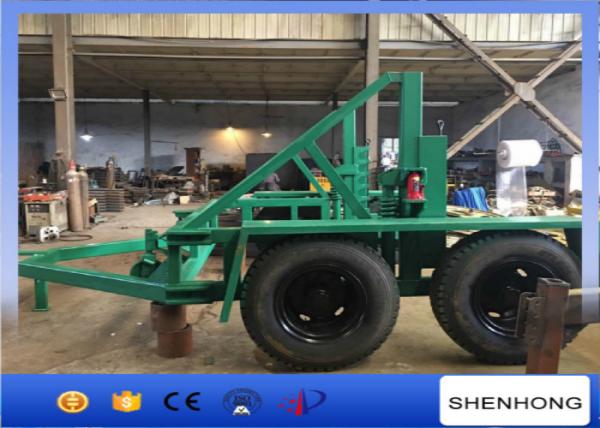

4 Tyre Underground Cable Installation Tool Cable Drum Carrier 12 Ton Load Capacity
-

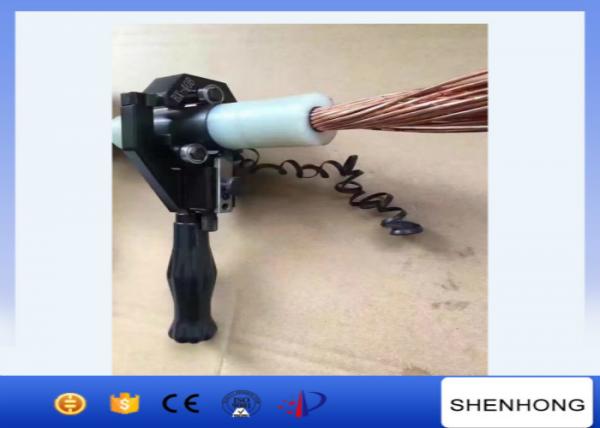

Adjustable Underground Cable Installation Tools BX-40 Manual Insulation Layer Stripper
-
