3 Cores 70mm2 Copper Tape Armoured Electrical Cable
3 Cores 70mm2 Copper Tape Armoured Electrical Cable image
Brand Name :
SHANCABLE
Model Number :
YJLV32-6.35-11KV
Certification :
ISO,CE,IEC,TUV,KEMA
Place of Origin :
Shanghai, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100KM/Week
Delivery Time :
10 Days
Packaging Details :
Wooden Drum
Product name :
Armoured Power Cable
Conductor :
copper conductor, Cl.2 as per IEC 60228
Insulation :
XLPE(cross-linked polyethylene) rated at 90 OC
Shield :
Copper Tape
Inner sheath :
PVC
Armored :
Galvanized Steel Wire
Sheath :
PVC Sheath
Free Smaple :
YES
PVC Sheath Outdoor Armoured Power Cable / Copper Tape Armoured Cable

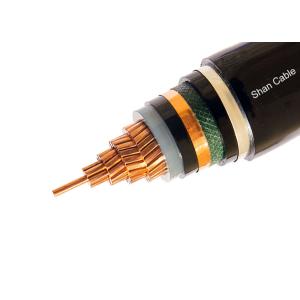

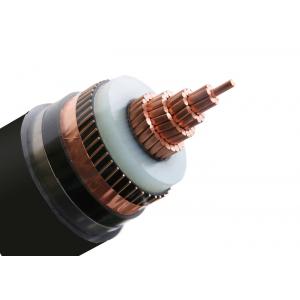

Armoured Power Cable Construction
Conductor : copper conductor, Cl.2 as per IEC 60228
Insulation : XLPE rated at 90 OC
Shield : Copper Tape
Inner sheath :PVC
Armored :Galvanized Steel Wire.
Sheath : PVC or FR-PVC type ST2 to IEC 60502, black
Armoured Power Cable Technical data:
Rated voltage:6.35/11KV
Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 12 x cable O.D for Three Core
Armoured Power Cable Standard
International: IEC 60502-2, IEC 60228,
China: GB/T 12706, (GB/T 12706.1-2008
Other standards such as BS,DIN and ICEA upon request
Certificate
CE, RoHS, , KEMA and more others at request
Commercial Items: MOQ: 500m
Payment terms: 30% T/T before production, 70% T/T before delivery
Packing : Wooden Iron drum
Armoured Power Cable Specifications
| Nom. Cross-section of conductor | Strands No./Dia. Of Conductor | Insulation Thickness | Inner Covering Thickness | Steel Wire Dia. | Sheath Thickness | Approx Overall Diameter of Cable | Approx. Weight |
Max. D.C Resistance of Conductor (20 ℃)Ω /km | Testing Voltage A.C |
| mm2 | pc/mm | mm | mm | mm | mm | mm | kg/km | Ω /km | kV/5min |
| 3 × 25 | 7/2.14 | 3.4 | 1.3 | 2.5 | 2.3 | 43.2 | 3726 | 1.2 | 21 |
| 3 × 35 | 7/2.52 | 3.4 | 1.3 | 2.5 | 2.4 | 46.2 | 4699 | 0.868 | 21 |
| 3 × 50 | 10/2.52 | 3.4 | 1.4 | 2.5 | 2.5 | 48.9 | 5395 | 0.641 | 21 |
| 3 × 70 | 14/2.52 | 3.4 | 1.4 | 2.5 | 2.6 | 52.6 | 6309 | 0.443 | 21 |
| 3 × 95 | 19/2.52 | 3.4 | 1.5 | 2.5 | 2.8 | 56.7 | 7435 | 0.320 | 21 |
| 3 × 120 | 24/2.52 | 3.4 | 1.6 | 2.5 | 2.9 | 59.9 | 8449 | 0.253 | 21 |
| 3 × 150 | 30/2.52 | 3.4 | 1.6 | 2.5 | 3.0 | 63.5 | 9683 | 0.206 | 21 |
| 3 × 185 | 37/2.52 | 3.4 | 1.7 | 2.5 | 3.1 | 67.2 | 11025 | 0.1640 | 21 |
| 3 × 240 | 48/2.52 | 3.4 | 1.8 | 3.15 | 3.2 | 72.1 | 13907 | 0.1250 | 21 |
| 3 × 300 | 61/2.52 | 3.4 | 1.9 | 3.15 | 3.7 | 77.7 | 16312 | 0.1000 | 21 |
| 3 × 400 | 61/2.97 | 3.4 | 2.0 | 3.15 | 3.7 | 85.3 | 19943 | 0.0778 | 21 |
Armoured Power Cable Details
PACKING AND SHIPPING
All cable For exporting are well packed and protected by wooden drum or Wood and Steel Drum. The packing material is depended on the weight and size of cable. After the well packed cable drums sent to Sea Port, they are loaded into 20 FT container or 40 FT container. All cable drum are firmly fixed by safety belt to make sure, no movement during the sea freight. The size of the container is chosed according to weight of total loaded goods or as per the client's requirement.
Services
♦ We are the one of biggest manufacture of electric wire and power cable in China and has more than 20 years producing and marketing experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and own design are welcome. We will produce according to your requirement and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.
A: Most quotes are returned within 24 hours, however, if it is for a special construction, it could take more days.
Q: What warranties do your products carry?
A: SHAN cable guarantees that all of our products, wires cables,and more are free from defects. We will take back any product that does not meet the agreed quality by both parties. The specific terms are as follows :
1. We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire
2. We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.
3. The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.
4. During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
We are China 3 Cores 70mm2 Copper Tape Armoured Electrical Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: 70mm2 Armoured Electrical Cable, 70mm2 armoured wire cable, Armoured Electrical Cable, Copper Tape Armoured Electrical Cable
