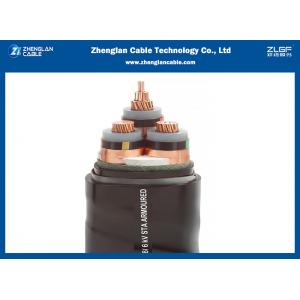

3 Core Medium Voltage Power Cables Copper Wire CU/XLPE/STA/PVC Electrical Cable Armored
3 Core Medium Voltage Power Cables Copper Wire CU/XLPE/STA/PVC Electrical Cable Armored image
Brand Name :
Zhenglan Cable
Model Number :
medium voltage copper cable 3Cx95sqmm IEC60502-2 CU-XLPE-STA-PVC
Certification :
3C; ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007
Place of Origin :
Henan, China
MOQ :
1500m
Price :
Negotiable
Payment Terms :
L/C, T/T,, Western Union
Delivery Time :
10-15 workdays for bulk order
Packaging Details :
Wooden drum, wood and steel drum,as customer’s request
Material :
CU
Out Sheath Color :
Black
Core :
3 core
Cable Drum Length :
as per request
characted :
STA
Specification :
cu/xlpe/sta/pvc
Name :
medium voltage copper cable 3Cx95sqmm MV copper cable IEC60502-2 cu-xlpe-sta-pvc
Referece standard :
IEC60502-2
medium voltage copper cable 3Cx95sqmm MV copper cable IEC60502-2 cu-xlpe-sta-pvc APPLICATIONS:
This product is applicable to the power transmission and distribution line with AC rated voltage(U0/U) of 3.6/6kV-26/36kV system.It is routed in air (cable bridge frame,indoor wall support,and tray) and soil(direct buried, cable trench,pipe ect.) respectively according to difference of the protection layer structure.
STANDARD:
International: IEC 60502-2(3.6/6KV to 18/30KV)

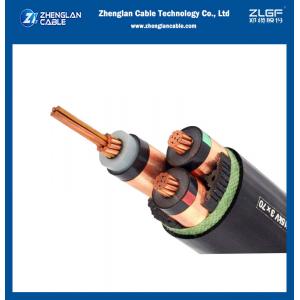

Cable Construction
We adopt highly specialized plant, state-of-the-art research facilities and meticulous quality control procedures that are required for the manufacturing of xlpe insulated cables for use up to 6KV and XLPE insulated cables for use at voltages up to 35 KV.
Conductors
Copper conductor, circular stranded compacted, water blocked.
Conductor Screen
Extruded semi-conductive compound.
Insulation
XLPE(Cross-linked polyethylene)
Insulation Screen
This will be a layer of semi-conducting crosslinkable compound which will be applied by triple extrusion process over the insulation.
Metallic Screen
It will consist of a layer of copper tape applied helically with overlap over insulation screen. Other combinations of metallic screens as per customer ’s requirement can also be provided on request.
Laying-Up
In case of three core cables, the three cores are laid up with non-hygroscopic fillers like polypropylene(PP) fillers at interstices and a binder tape is applied with an overlap. These binder tapes can be of PVC or foamed Polyethylene.
Over Sheath
PVC, FR-PVC, PE or LSOH
Fire Performance on Cable Sheaths
Cables can also be supplied with special flame retardant PVC over sheaths to comply with the IEC 60332 standard. We can also supply cables with Low Smoke Halogen Free (LSZH) sheaths according to BS 7211 and BS 6724 standards or other equivalent international standards.
medium voltage copper cable 3Cx95sqmm MV copper cable IEC60502-2 cu-xlpe-sta-pvc reference technical parameters
Three core 6/10kv without armor
| Normal cross sectional area(mm²) | Appro conductor dia(mm) | Nom insulation thickness(mm) | Copper tape thickness(mm) | Copper wire screen area(mm²) | Appro. Insulation dia(mm) | Nom sheath thickness(mm) | Appro overall diameter(mm) | Appro weight(kg/km) | |
| CU | AL | ||||||||
| 25 | 6.05 | 3.4 | 0.1 | 16 | 14.3 | 1.6 | 41 | 2400 | 1900 |
| 35 | 7.10 | 3.4 | 0.1 | 16 | 15.3 | 1.6 | 43 | 2800 | 2200 |
| 50 | 8.25 | 3.4 | 0.1 | 16 | 16.5 | 1.7 | 46 | 3400 | 2500 |
| 70 | 9.90 | 3.4 | 0.1 | 16 | 18.1 | 1.7 | 50 | 4200 | 2900 |
| 95 | 11.7 | 3.4 | 0.1 | 16 | 19.9 | 1.8 | 54 | 5300 | 3400 |
| 120 | 13.3 | 3.4 | 0.1 | 16 | 21.3 | 1.8 | 57 | 6200 | 3900 |
| 150 | 14.3 | 3.4 | 0.1 | 25 | 22.5 | 1.9 | 60 | 7200 | 4400 |
| 185 | 16.3 | 3.4 | 0.1 | 25 | 24.5 | 1.9 | 64 | 8600 | 5100 |
| 240 | 18.7 | 3.4 | 0.1 | 25 | 26.9 | 2.0 | 70 | 10700 | 6100 |
| 300 | 20.9 | 3.4 | 0.1 | 25 | 29.1 | 2.1 | 75 | 12900 | 7100 |
| 400 | 23.7 | 3.4 | 0.1 | 25 | 31.9 | 2.2 | 81 | 15900 | 8500 |
Three core 8.7/15kv without armor
| Normal cross sectional area(mm²) | Appro conductor dia(mm) | Nom insulation thickness(mm) | Copper tape thickness(mm) | Copper wire screen area(mm²) | Appro. Insulation dia(mm) | Nom sheath thickness(mm) | Appro overall diameter(mm) | Appro weight(kg/km) | |
| CU | AL | ||||||||
| 25 | 6.05 | 4.5 | 0.1 | 16 | 16.5 | 1.7 | 46 | 3500 | 2400 |
| 35 | 7.10 | 4.5 | 0.1 | 16 | 17.5 | 17 | 48 | 3800 | 2600 |
| 50 | 8.25 | 4.5 | 0.1 | 16 | 18.7 | 1.7 | 51 | 4400 | 3000 |
| 70 | 9.90 | 4.5 | 0.1 | 16 | 20.3 | 1.8 | 55 | 4200 | 2900 |
| 95 | 11.7 | 4.5 | 0.1 | 16 | 22.1 | 1.8 | 59 | 5300 | 3400 |
| 120 | 13.1 | 4.5 | 0.1 | 16 | 23.5 | 1.8 | 62 | 6400 | 4000 |
| 150 | 14.3 | 4.5 | 0.1 | 25 | 24.7 | 1.9 | 65 | 7400 | 4500 |
| 185 | 16.3 | 4.5 | 0.1 | 25 | 26.7 | 1.9 | 69 | 10000 | 5800 |
| 240 | 18.7 | 4.5 | 0.1 | 25 | 29.1 | 2.0 | 75 | 12200 | 6800 |
| 300 | 20.9 | 4.5 | 0.1 | 25 | 31.3 | 2.1 | 80 | 14400 | 7900 |
| 400 | 23.7 | 4.5 | 0.1 | 35 | 34.1 | 2.2 | 87 | 17500 | 9300 |
medium voltage copper cable 3Cx95sqmm MV copper cable IEC60502-2 cu-xlpe-sta-pvc images
medium voltage copper cable 3Cx95sqmm MV copper cable IEC60502-2 cu-xlpe-sta-pvc Package
Cable testing
About Zhenglan Cable Technology Co., Ltd
Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.
Why Choose Zhenglan Cable:
- OEM/ODM services provided;
- Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
- Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
- Registered capital of $30 million and factory covers an area of 60,000㎡;
- Advanced test equipment and procedures, 100% inspection before factory;
- Enough stocks and the higest efficient shipping time guarranteed;
- Professional pre-sales and after-sales services provided.
FAQ
1. Is your company a factory or a trade company?
Factory, more than 20 years in China
2. How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
3. What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.
4. What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
5. What is your MOQ?
Generally for medinum voltage poer cable MOQ is 1000m.
