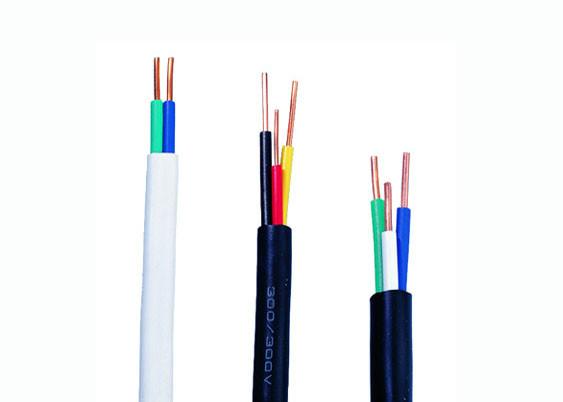

3 Core Electrical Cable solid or stranded Cu-Conductor PVC- Sheathed Type 227 IEC 10
3 Core Electrical Cable solid or stranded Cu-Conductor PVC- Sheathed Type 227 IEC 10 image
Brand Name :
Shenzhen Chengtiantai cable
Model Number :
BVV
Certification :
CE, CB, CCC
Place of Origin :
China mainland
MOQ :
100 Unit
Price :
On request
Payment Terms :
L/C, T/T
Supply Ability :
50000 m / day
Delivery Time :
15 working day
Packaging Details :
coil in foil / drum
Rate Voltage :
300/500 V
Conductor Material :
Bear Copper Solid or Strand
No. of Conductor :
3 Core
Insulaton :
PVC
Inner Sheath :
PVC
Outer sheath :
PVC
300/500V 70°C PVC INSULATED AND SHEATHED, THREE CORES
|
Application For installation exposed, or in raceway,wet or dry location. Classification Maximum conductor temperature 70°C Circuit voltage does not exceed 500 volts. |
Standard : 60227 IEC 10 Conductor : Solid or Stranded annealed copper,size 1.5 – 35 mm² Insulation : Polyvinylchloride (PVC) Sheath : Polyvinylchloride (PVC) |
| Nominal cross sectional area |
Number and diameter of wire |
Insulation thickness |
Inner sheath thickness |
Outer sheath thickness |
Overall diameter |
Minimum insulation resistance at 70°C |
Cable weight (approx.) |
Standard length |
|
| min. | max. | ||||||||
| (mm²) | (No./mm) | (mm) | (mm) | (mm) | (mm) | (MΩ.km) | (kg/km) | (m) | |
| 3 × 1.5 | 1/1.38 | 0.7 | 0.4 | 1.2 | 8.0 | 10.5 | 0.011 | 137 | 1000/D |
| 3 × 1.5 | 7/0.53 | 0.7 | 0.4 | 1.2 | 8.2 | 11.0 | 0.01 | 147 | 1000/D |
| 3 × 2.5 | 1/1.78 | 0.8 | 0.4 | 1.2 | 9.2 | 12.0 | 0.01 | 190 | 1000/D |
| 3 × 2.5 | 7/0.67 | 0.8 | 0.4 | 1.2 | 9.4 | 12.5 | 0.009 | 200 | 1000/D |
| 3 × 4 | 1/2.25 | 0.8 | 0.4 | 1.2 | 10.0 | 13.0 | 0.0085 | 251 | 1000/D |
| 3 × 4 | 7/0.85 | 0.8 | 0.4 | 1.2 | 10.5 | 13.5 | 0.0077 | 264 | 1000/D |
| 3 × 6 | 1/2.74 | 0.8 | 0.4 | 1.4 | 11.5 | 14.5 | 0.007 | 325 | 1000/D |
| 3 × 6 | 7/1.04 | 0.8 | 0.4 | 1.4 | 12.0 | 15.5 | 0.0065 | 355 | 1000/D |
| 3 × 10 | 1/3.56 | 1.0 | 0.6 | 1.4 | 14.0 | 17.5 | 0.007 | 534 | 1000/D |
| 3 × 10 | 7/1.35 | 1.0 | 0.6 | 1.4 | 14.5 | 19.0 | 0.0065 | 583 | 1000/D |
| 3 × 16 | 7/1.70 | 1.0 | 0.6 | 1.4 | 16.5 | 21.5 | 0.0052 | 819 | 1000/D |
| 3 × 25 | 7/2.14 | 1.2 | 0.8 | 1.6 | 20.5 | 26.0 | 0.005 | 1244 | 1000/D |
| 3 × 35 | 19/1.53 | 1.2 | 1.0 | 1.6 | 22.0 | 29.0 | 0.0044 | 1657 | 1000/D |
* Dimensions and specifications may be changed without prior notice.
|
CONTACT Tel: +86 (0755) 61145028 |
|
|
PACKAGING
|
Shenzhen chengtiantai cable operates certified management systems compliant with:
| Certificate | Information | |
|
ISO 9001:2008 Quality management systems
|
– Certificat ISO 9001:2008 – Shenzhen chengtiantai cable industry development Co.Ltd. ; – Certified through Guangdong quality Testing CTC Certification Co.Ltd.; – Valid until 13 January 2019 |
|
|
ISO 14001:2004
Environmental management systems
|
– Certificat ISO 14001:2004 – Shenzhen chengtiantai cable industry development Co.Ltd. ; – Certified through Guangdong quality Testing CTC Certification Co.Ltd.; – Valid until 13 January 2019 |
|
|
OHSAS 18001:2007
Assessment specification for occupational health & safety management systemsenvironmental management systems
|
– Certificat OHSAS 18001:2007 – Shenzhen chengtiantai cable industry development Co.Ltd. ; – Certified through Guangdong quality Testing CTC Certification Co.Ltd.; – Valid until 13 January 2019 |
| CUSTOMER SERVICES: | |
|
We manufactures a comprehensive array of wires and cables to meet diverse market needs. We look forward to assisting you in identifying the best products for your specific application and to answer any questions you might have. Head office: chengtiantai Industrial Park, Lisonglang community, Gongming office, Guangming district, Shenzhen P.R. China 518106 |
Shenzhen chengtiantai cable operates certified management systems compliant with: ISO 9001:2008 / ISO 14001:200]4 / OHSAS 18001:2007 ● Cable production started 1983 ● Sales in 2016 about 500 million USD ● 100,000 m2 Production area ● 8 workshop |
Because we continuously improve our products, CTT Cable reserves the right to change specifications and availability without prior notice.
We are China 3 Core Electrical Cable solid or stranded Cu-Conductor PVC- Sheathed Type 227 IEC 10 manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
