3/8 Inch Guy Strand Wire , Galvanized Guy Wire As Per ASTM A 475 Class A EHS
3/8 Inch Guy Strand Wire , Galvanized Guy Wire As Per ASTM A 475 Class A EHS image
Brand Name :
Litong Global
Model Number :
LT-190530
Certification :
ISO9001-2008
Place of Origin :
Anhui,China
MOQ :
1 full 20″ container
Price :
discuss
Packaging Details :
standard export packing on reel
Material :
Galvanized steel wire
Specification :
3/8″
structure :
1×7
Standard :
ASTM A 475
Zinc-coating :
Class A
Grade :
EHS
Packing :
5000ft/reel
Loading capacity :
25tons/20″
3/8 inch Galvanized guy wire as per ASTM A 475 Class A EHS

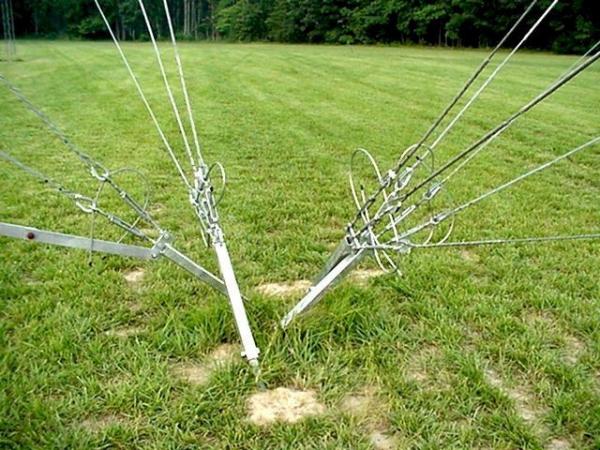

Whether you have heard it called guy strand, guy wire or guide wire, these normally refer to 1×7 Extra High Strength (EHS) galvanized strand cable. Designed with very little stretch and flexibility this cable is generally used to reinforce and add stability to tall structures; reinforcing everything from radio towers to wind turbines and is ideal for bracing and tensioning applications for arborists’ and linemen.
Our Guy Wire is Class A galvanized, meets ASTM A-475 specifications, is independent lab verified and quality assured.
| Mechanical and Technological Properties of Galvanized Steel Strand | |||||||||
| Struct | Dia(mm) | Dia Stand(mm) | Dia Stand(mm²) | Tensile Strength(Mpa) | Weight(kg/100m) | ||||
| 1270 | 1370 | 1470 | 1570 | 1670 | |||||
| Minimum Breaking Force(KN) | |||||||||
|
1*3 |
2.90 | 6.20 | 19.82 | 23.10 | 24.90 | 26.80 | 28.60 | 30.45 | 15.99 |
| 3.20 | 6.40 | 24.13 | 28.10 | 30.40 | 32.60 | 34.80 | 37.07 | 19.47 | |
| 3.50 | 7.50 | 28.86 | 33.70 | 36.30 | 39.00 | 41.60 | 44.34 | 23.29 | |
| 4.00 | 8.60 | 37.70 | 44.00 | 47.50 | 50.90 | 54.40 | 57.92 | 30.42 | |
|
1*7 |
1.00 | 3.00 | 5.50 | 6.43 | 6.93 | 7.44 | 7.94 | 8.45 | 4.37 |
| 1.20 | 3.60 | 7.92 | 9.25 | 9.98 | 10.71 | 11.44 | 12.17 | 6.29 | |
| 1.40 | 4.20 | 10.78 | 12.60 | 13.59 | 14.58 | 15.57 | 16.56 | 8.56 | |
| 1.60 | 4.80 | 14.07 | 16.44 | 17.73 | 19.03 | 20.32 | 21.62 | 11.17 | |
| 1.80 | 5.40 | 17.81 | 20.81 | 22.45 | 24.09 | 25.72 | 27.36 | 14.14 | |
| 2.00 | 6.00 | 21.99 | 25.69 | 27.72 | 29.74 | 31.76 | 33.79 | 17.46 | |
| 2.20 | 6.60 | 26.61 | 31.10 | 33.55 | 36.00 | 38.45 | 40.88 | 21.00 | |
| 2.60 | 7.80 | 37.17 | 43.43 | 46.85 | 50.27 | 53.69 | 57.11 | 29.51 | |
| 3.00 | 9.00 | 49.50 | 57.86 | 62.42 | 66.98 | 71.54 | 76.05 | 41.19 | |
| 3.20 | 9.60 | 56.30 | 65.78 | 70.96 | 76.14 | 81.32 | 86.50 | 44.7 | |
| 3.50 | 10.50 | 67.35 | 78.69 | 84.89 | 91.08 | 97.28 | 103.48 | 53.48 | |
| 3.80 | 11.40 | 79.39 | 92.76 | 100.10 | 107.40 | 114.70 | 121.97 | 63.04 | |
| 4.00 | 12.00 | 87.96 | 102.80 | 110.90 | 119.00 | 127.00 | 135.14 | 69.84 | |
|
1*19 |
1.60 | 8.00 | 38.20 | 43.66 | 47.10 | 50.54 | 53.98 | 57.41 | 30.4 |
| 2.00 | 10.00 | 59.69 | 68.23 | 73.60 | 78.97 | 84.34 | 89.71 | 47.51 | |
| 2.60 | 13.00 | 100.90 | 115.30 | 124.40 | 133.50 | 142.60 | 151.65 | 80.30 | |
| 4.00 | 20.00 | 238.80 | 272.90 | 294.40 | 315.90 | 337.40 | 358.92 | 190.05 | |
|
1*37 |
1.60 | 11.20 | 74.39 | 80.30 | 86.63 | 92.95 | 99.27 | 105.60 | 59.50 |
| 2.00 | 14.00 | 116.20 | 125.40 | 135.30 | 145.20 | 155.10 | 164.95 | 93.00 | |
| 3.20 | 22.40 | 297.60 | 321.30 | 346.60 | 371.90 | 397.10 | 422.44 | 238.00 | |
| 4.00 | 28.00 | 465.00 | 52.00 | 541.50 | 581.00 | 620.50 | 660.07 | 372.00 | |
| Physical Properties of Zinc Coated Steel Wires Strand(ASTM A475) | |||||||||
| Nominal diameter of Strand. In (mm) | Number of Wires in Strand | Nominal diameter of Coated Wires in Strand. (mm) | Approximate Weight of Strand(kg/304.8m) | Minimum Breaking Strength of Strand (KN) | |||||
| Utilities Grade | Common Grade | Siemens Martin Grade | High Strength Grade |
Extra High Strength Grade | |||||
| 3/16 (4.76) | 7 | 1.57 | 33 | —– | 5.115 | 8.452 | 12.677 | 17.748 | |
| 7/32 (5.56) | 3 | 2.64 | 40 | —– | 6.228 | 10.409 | 15.569 | 21.796 | |
| 7/32 (5.56) | 7 | 1.83 | 44 | —— | 6.850 | 11.387 | 17.126 | 24.020 | |
| 1/4 (6.35) | 7 | 2.03 | 55 | —— | 8.452 | 14.012 | 21.129 | 29.581 | |
| 9/32 (7.14) | 7 | 2.36 | 74 | 20.462 | 11.432 | 18.905 | 28.469 | 39.812 | |
| 5/16 (7.94) | 7 | 2.64 | 93 | —– | 14.234 | 23.798 | 35.586 | 49.820 | |
| 3/8 (9.52) | 7 | 3.05 | 124 | 51.155 | 18.905 | 30.915 | 48.040 | 68.503 | |
| 7/16 (11.11) | 7 | 3.68 | 181 | 80.068 | 25.355 | 41.591 | 64.499 | 92.523 | |
| 1/2 (12.70) | 7 | 4.19 | 234 | 111.206 | 32.917 | 53.823 | 83.627 | 119.657 | |
| 1/2 (12.70) | 19 | 2.54 | 229 | —— | 33.895 | 56.492 | 84.961 | 118.768 | |
| 9/16 (14.29) | 19 | 2.87 | 289 | ——- | 42.881 | 71.616 | 107.202 | 149.905 | |
| 5/8 (15.88) | 19 | 3.18 | 361 | ——- | 48.930 | 80.513 | 124.995 | 178.819 | |
| 3/4 (19.05) | 19 | 3.81 | 524 | ——- | 71.172 | 116.643 | 181.487 | 259.331 | |
| Nominal Diameters and Minimum Weights of Coating for Zinc-Coated Steel Wires | |||||||||||||||||||
| Diameter(mm) | 1.57 | 1.65 | 1.83 | 2.03 | 2.36 | 2.54 | 2.64 | 2.77 | 3.05 | 3.18 | 3.30 | 3.63 | 3.68 | 3.81 | 4.09 | 4.19 | 4.50 | 4.55 | |
| Zinc Coated(g/m²) | 153 | 153 | 153 | 183 | 214 | 214 | 244 | 244 | 259 | 259 | 259 | 275 | 275 | 275 | 275 | 275 | 275 | 275 | |
We are China 3/8 Inch Guy Strand Wire , Galvanized Guy Wire As Per ASTM A 475 Class A EHS manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
