3.6kv XLPE Insulated 300mm2 400mm2 MV Power Cables

 China 3.6kv XLPE Insulated 300mm2 400mm2 MV Power Cables supplier

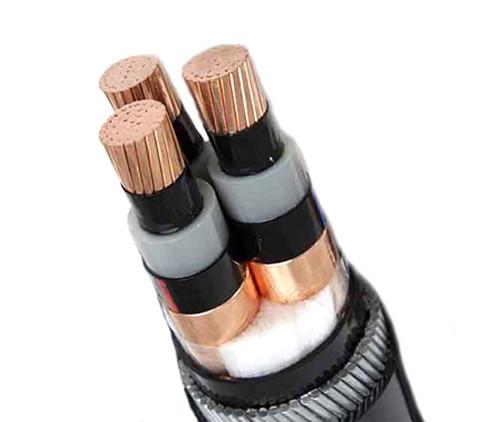

3.6kv XLPE Insulated 300mm2 400mm2 MV Power Cables image

Get a Quote Email to us

Brand Name :
OEM

Certification :
ISO/RoHS/CE

Place of Origin :
china

MOQ :
200 meters

Payment Terms :
L/C, T/T

Supply Ability :
50000meters per week

Delivery Time :
5-15day

Packaging Details :
wooden drum

Price :
Negotiable

Conductor Core :
Annealed Copper or Hard Drawn Aluminum

Insulation Material :
Crosslinked Polyethylene (XLPE)

Armoured Types :
DSTA/SWA/AWA or Unarmoured

Outer Sheath Material :
Polyvinyl Chloride (PVC) or Polyethylene (PE)

Standard :
BS IEC ASTM DIN, IEC 60502-2, GB12706, IEC60228

Colour :
Black or As Requirement

Packing :
Wooden-steel Drum, Steel Drum, Wooden Drum

Special Requiremets :
Fire-resistant,flame retardant,low smoke halogen free

Sample :
Y, Provided

Application :
Underground,Construction,Industrial,power distribution and transmission line

Voltage :
3.6kv to 35kv

3.6kv XLPE Insulated 300mm2 400mm2 MV Power Cables
MEDIUM VOLTAGE CABLE STANDARD
According to GB12706( Equal to IEC60502). The mv cable also could be producted by standard of ASTM, BS, DIN and AS/NZS or other standards as request.

MEDIUM VOLTAGE CABLE VOLTAGE

3.6/6KV, 6/10KV, 8.7/15KV, 12/20KV, 18/20KV, 21/35KV, 26/35KV

MEDIUM VOLTAGE CABLE CONSTRUCTION

1. Conductor: Copper or aluminium (class1 or class 2)

2. Inner semi-conducting layer

3. Insulation: Cross inked polyethylene (XLPE)

4. Outer semi-conducting layer

5. Armoured or Unarmoured

6. Wrapping of conductive material

7. Screen: Braiding of copper wires or copper tape

8. Separator

9. Outer jacket: PVC or PE

MEDIUM VOLTAGE CABLE APPLICATION

With the characteristics of stable capability, advanced technology, broad material resources, low price, good flexible and easy to lay and maintain, the XLPE insulated medium voltage Cable are suitable to be laid for power distribution line with rated voltage up to 35kV.

MEDIUM VOLTAGE CABLE CHARACTERISTICS

1. The long-time permissible working temperature of cable conductive core is not more than 90 °C.

2. During short circuit (max. permanent time is not more than 5 seconds), the max temperature of cable conductor is not more than 250°C.

3. The difference level of laying cable is not restricted. When laying the cable, ambient temperature is not lower than 0°C.

4. Light weight, good bending property and easy installation and maintenance.

MEDIUM VOLTAGE CABLE TYPE & APPLICATION
TYPE NAME Main Application
CU core AL core
YJV/YJY YJLV/YJLY XLPE insulated,PVC/PE sheathed power cable

For laying indoor ,tunnel, canal

and nderground. Unable to bear external mechanical forces, but bear the traction force during laid

YJV22/YJV23 YJLV22/YJLV23 XLPE insulated,steel tape armored,PVC/PE sheathed power cable

For laying indoor

,tunnel, canal and

underground. Able to bear external

mechanical forces, but unable to bear large pulling force

YJV32/YJV33 YJLV32/YJLV33 XLPE insulated,thin steel wire armored,PVC/PE sheathed power cable

For laying in shaft,water underground will large difference of level.

Able to bear external mechanical forces and moderate pulling force

YJV42/YJV43 YJLV42/YJLV43 XLPE insulated,thick steel wire armored,PVC/PE sheathed power cable

For laying in water and seabed. Able to bear positive pressure and pulling force

XLPE INSULATE PVC SHEATH MV CABLE DATA

Type Specification

Conductor diameter

Nominal thickness of insulation Nominal sheath thickness Approx. Outer diameter of cable Approx. Weight of cable
CU AL

YJV CU/XLPE/PVC

YJLV

AL/XLPE/PVC

mm2 mm mm mm mm kg/km kg/km
3×25 6.0 2.5 2.1 36.1 1660 1203
3×35 7.0 2.5 2.1 38.3 2018 1383
3×50 8.4 2.5 2.2 41.3 2481 1619
3×70 10.0 2.5 2.4 45.1 3199 1959
3×95 11.5 2.5 2.5 48.6 4064 2339
3×120 13.0 2.5 2.6 52.9 4902 2729
3×150 14.5 2.5 2.7 55.2 5758 3072
3×185 16.2 2.5 2.8 59.8 6965 3609
3×240 18.4 2.5 3.0 64.7 8724 4309
3×300 20.5 2.5 3.2 70.5 10701 5154
3×400 23.5 2.5 3.4 78.0 13417 6340
