280mm 50KN Power Line Conductor Mesh Joints

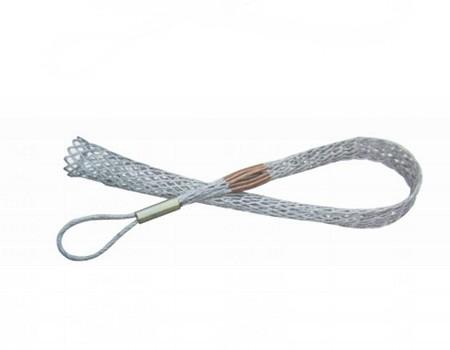

280mm 50KN Power Line Conductor Mesh Joints image
Brand Name :
Newart
Model Number :
SWL
Certification :
ISO
Place of Origin :
Ningbo,China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200pcs per month
Delivery Time :
5-7 workdays
Packaging Details :
Exported Box and carton
Product Name :
Cable Mesh Socks Joint
Item :
21361-21370
Usage :
connect, power construction
Rated Load :
8-50KN
Size :
12-280mm
Application :
Power Line Construction
Wire Laying Construction Steel Cable Socks Wire Rope Pulling Cable Grips Protection Conductor Cable Mesh Socks Joint
Feature
1. As well as advantages of light weight, large tensile load, not damage line, convenient to use and so on.It is also soft and easy to strench.
2. The most ideal tool for electric power construction. Applicatoin Apply to installing electrcity cable communication cable and normal cable.
Use Method First press the opening of the net sleeve with the palm of your hand to open it, then start to wear the cable inward. The deeper the cable is worn, the greater the pulling force. The mesh body of the net sleeve is in the form of a grid, and the tension is tightened during construction. After the construction is completed, you only need to apply force in the opposite direction to remove the net sleeve. The net sleeve can be pulled by hand or lifting tool to achieve the function of wiring and protecting the cable.
Technical Data
| Item number | Model |
Applicable Cable Diameter (mm) |
Rated Load (KN) |
Weight (kg) |
| 21361 | SWL-16 | Φ12-16 | 10 | 0.8 |
| 21362 | SWL-20 | Φ16-20 | 10 | 0.8 |
| 21363 | SWL-25 | Φ20-25 | 15 | 1.0 |
| 21364 | SWL-37 | Φ25-37 | 15 | 1.0 |
| 21365 | SWL-50 | Φ37-50 | 15 | 1.0 |
| 21366` | SWL-60 | Φ50-60 | 25 | 2.4 |
| 21367 | SWL-80 | Φ60-80 | 25 | 2.4 |
| 21368 | SWL-100 | Φ80-100 | 25 | 2.4 |
| 21369 | SWL-120 | Φ100-120 | 30 | 2.6 |
| 21370 | SWL-150 | Φ120-150 | 30 | 2.6 |
We are China 280mm 50KN Power Line Conductor Mesh Joints manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: 280mm Conductor Mesh Joints, 50KN Power Line Mesh Joints, Power Line Conductor Mesh Joints, Underground Cable Pulling Tools
