26kV / 35kV Signle / Core XLPE Insulated Power Cable With Stranded Copper Conductor

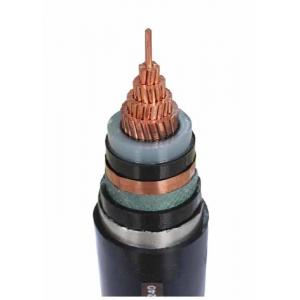

26kV / 35kV Signle / Core XLPE Insulated Power Cable With Stranded Copper Conductor image

Get a Quote Email to us

Brand Name :SHANCABLE

Model Number :YJV-26/35KV

Certification :ISO,CE,IEC,TUV,KEMA

Place of Origin :Shanghai, China

MOQ :Negotiable

Price :Negotiable

Payment Terms :L/C, T/T

Supply Ability :100KM/Week

Delivery Time :10 Days

Packaging Details :Wooden Drum

Rated Voltage :26/35KV

Application :Power Transmission and Lighting systems

Outer Seath :PVC

Sample :Available

Warranty :2 Years

Conductor :100% copper

Screen :Copper Tape

26 / 35kV Signle Core or Three Core XLPE Insulated Power Cable with stranded Copper Conductor

Applications: XLPE Insulated Cable is used as power distribution and transmission line at rated voltage 26/35kV.

Construction:

Conductor	Copper Conductor as per IEC 60228,Class 2
	Circular or Shaped conductor
	Flexible conductor(class 5) optional.
Insulation	XLPE (Cross-Linked Polyethylene) rated at 90℃,many color optional
Metallic Screen optional	Copper tape or copper wires braiding optional
Sheath	PVC or FR-PVC type ST2 to IEC 60502, black or red or customization

Ordering Advice

Rated Voltage

Application Standard: IEC/BS/UL/GB

Number of Cores

Conductor Size & Construction

Type of Insulation

Armored or unarmored. If armor, the armor type & material

The Requirement of Sheath

Length of Cable & Packing Requirement

Other Requirement

Technical data: Rated voltage:26/35kV Medium Voltage

Maximum Conductor Temperature: under normal (90℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D for single core without armor

15 x cable O.D for multi core without armor

15 x cable O.D for single core with armor

12 x cable O.D for multi core with armor

Standards: International: IEC 60502-2, IEC 60228, (IEC 60332-3 for FR-type only)

China: GB/T 12706, (GB/T 18380-3 for FR-type only)

Other standards such as BS, DIN, VDE and ICEA upon request

Technical parameter:

Nom. Cross-section of conductor	Strands No./Dia. Of Conductor	Insulation Thickness	Sheath Thickness	Approx. O.D.	Approx. Weight	Max. D.C Resistance of Conductor (20 ℃)	Testing Voltage A.C	Current Rating
mm²	pc/mm	mm	mm	mm	kg/km	Ω /km	kV/5min	In air (A)	In soil(A)
1 × 50	10/2.52	10.5	2.2	39.0	1758	0.387	91	220	215
1 × 70	14/2.52	10.5	2.4	41.0	2038	0.268	91	270	265
1 × 95	19/2.52	10.5	2.4	42.0	2355	0.193	91	330	315
1 × 120	24/2.52	10.5	2.4	44.0	2666	0.153	91	375	360
1 × 150	30/2.52	10.5	2.5	45.0	3031	0.124	91	425	400
1 × 185	37/2.52	10.5	2.5	47.0	3427	0.0991	91	485	455
1 × 240	48/2.52	10.5	2.6	49.0	4070	0.0754	91	560	525
1 × 300	61/2.52	10.5	2.7	51.0	4748	0.0601	91	650	595
1 × 400	61/2.97	10.5	2.8	55.0	5801	0.0470	91	760	680
1 × 500	61/3.23	10.5	2.9	58.0	6623	0.0366	91	875	775
1 × 630	61/3.50	10.5	3	62.0	5211	0.0283	91	1000	875
1 × 800	91/3.20	10.5	3.1	68.0	10014	0.0221	91	1130	970
1 × 1000	91/3.75	10.5	3.3	72.0	12078	0.0176	91	1250	1060
3 × 50	10/2.52	10.5	3.7	81.0	6728	0.387	91	185	200
3 × 70	14/2.52	10.5	3.8	84.0	7581	0.268	91	230	250
3 × 95	19/2.52	10.5	3.9	88.0	8630	0.193	91	280	300
3 × 120	24/2.52	10.5	4.0	91.0	9688	0.153	91	310	330
3 × 150	30/2.52	10.5	4.1	95.0	11017	0.124	91	360	380
3 × 185	37/2.52	10.5	4.2	98.0	12390	0.0991	91	400	425
3 × 240	48/2.52	10.5	4.4	103.0	14427	0.0754	91	470	490
3 × 300	61/2.52	10.5	4.5	108.0	15940	0.0601	91	540	555
3 × 400	61/2.97	10.5	4.8	116.0	19346	0.0470	91	610	625

Packing and shipping: We are capable of meeting the strictest delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.

After-service commitment: Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:

1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning
technical advisory service when establish cooperation relationship with clients.
4. Thoughtful after sales service. Our product are warranted by PICC (People's Insurance Company of China). We will
provide free maintaining and debugging within 12 month after installation(except for the wrong using).
5. We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.
6. 24 hours hot-line telephone service. We will appoint professional person answer your question timely.

We are China 26kV / 35kV Signle / Core XLPE Insulated Power Cable With Stranded Copper Conductor manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
