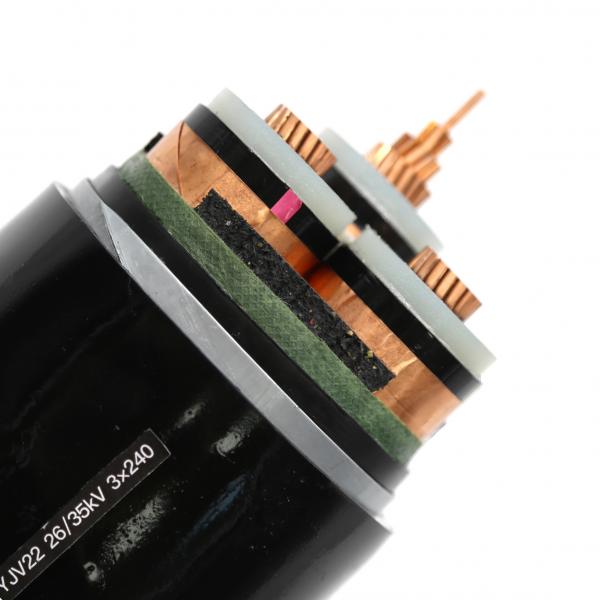

26/35kV 3 Core Copper Wire Medium Voltage Power Cables CU/XLPE/STA/PVC Electrical Cable Steel Tape Armored
26/35kV 3 Core Copper Wire Medium Voltage Power Cables CU/XLPE/STA/PVC Electrical Cable Steel Tape Armored image
Brand Name :
JHY CABLE
Model Number :
Medium voltage power cable
Certification :
ISO9001/ISO14001/OHSAS18001/CCC/CE/RoH
Place of Origin :
SHENZHEN CHINA
MOQ :
200M
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000M/Day
Delivery Time :
10~15 Days
Packaging Details :
wooden drum
Application :
Construction,Industrial,Underground,Power Station,BUILDING
Type :
Medium Voltage
Conductor :
Bare Copper
Voltage :
26 / 35 kV
Insulation :
XLPE
Sheath :
PVC
Armored :
Galvanized Steel Tape, STA
26/35kV 3 Core Copper Wire CU/XLPE/STA/PVC Electrical Cable Steel Tape Armored Medium Voltage Power Cable
Production Description:
Standards
International: IEC 60502-2, IEC 60228
China: GB/T 12706.2-2008
Other standards such as BS,DIN and ICEA upon request
Applications
Used for power transmission and distribution line with voltage rated at 35kV and below.
Compared with PVC Insulated Power Cable, xlpe power cable boasts not only characteristics of excellent electricity, mechanism, heat and aging-resistant, environment stress-resistant and chemical corrosion-resistant, but also simple structure, light weight, no restriction by laying drop, and high temperature allowance for long-term working.
Construction
| Conductor | Compact Stranded Copper Conductor, Class 2 as per IEC 60228 |
| Circular solid Copper Conductor, Class 1 as per IEC 60228 | |
| Flexible Stranded Copper Conductor, Class 5 as per IEC 60228 | |
| Conductor Screen | Semi-conductor |
| Insulation | XLPE(Cross-linked polyethylene) |
| Insulation Screen | Semi-conductor |
| Metalic Shield | Copper Tape Screen or Copper wire & copper tape Shield |
| Filler | Fillers strip |
| Wrapping Tape | Non woven wrapping tape or lsoh wrapping tape |
| Inner Covering | Extruded PVC, or LSOH |
| Armour | Steel Tape Armour |
| Overall Sheath | PVC, FR-PVC, PE or LSOH |
Specifications
| MV(6 to 35kv) Power Cable | |||
| Model and Description Uo/U(Um)=3.6/6(7.2), 6/6(7.2), 6/10(12), 8.7/10(12), 8.7/15(17.5), 12/20(24), 18/30(36), 21/35(40.5), 26/35(40.5)kV | No.of Core | Conductor cross-section area(mm2) | |
| xlpe insulation | 1 core 3 core | 10 16 25 35 70 95 120 150 185 240 300 400 500 630 sq mm | |
| Cu core | Al Core | ||
| YJV, N2XSY;PVC sheathed power cable | YJLV, NA2XSY; PVC sheathed power cable | ||
| YJV22;steel tape armoured,PVC sheathed power cable | YJLV22;steel tape armoured,PVC sheathed power cable | ||
| YJV32,YJV42;steel wire armoured ,PVC sheathed power cable | YJLV32,YJLV42;steel wire armoured ,PVC sheathed power cable | ||
| pvc insulation | |||
| Cu Core | Al Core | ||
| VV(VY);PVC(PE)sheathed power cable | VLV(VLY);PVC(PE)sheathed power cable | ||
| VV22(VV23);steel tape armoured,PVC(PE)sheathed power cable | VLV22(VLV23);steel tape armoured,PVC(PE)sheathed power cable | ||
| VV32(VV33),VV42(VV43);steel wire armoured ,PVC(PE)sheathed power cable | VLV32(VLV33),VLV42(VLV43);steel wire armoured ,PVC(PE)sheathed power cable | ||
Technical data
| Test voltage | 6 / 10 kV | [kV] | 21 / 5 min. |
| 12 / 20 kV | [kV] | 42 / 5 min. | |
| 18 / 30 kV | [kV] | 63 / 5 min. | |
| Temperature range | in motion | -20°C till +90°C | |
| fixed | -20°C till +90°C | ||
| Operating temperature | short circuit | °C | 250 |
| Short circuit time | max. | [sec] | 5 |
| Bending radius | min. | x diameter | 15 |
| Flammability | standard | EN 50265-2-1 |
| Nom. Cross-section of conductor | Strands No./Dia. Of Conductor | Insulation Thickness | Inner Sheath Thickness | Steel Tape Thickness | Sheath Thickness | Approx. O.D. | Approx. Weight | Max. D.C Resistance of Conductor (20 ℃) | Testing Voltage A.C | Current Rating | |
| mm2 | pc/mm | mm | mm | mm | mm | (mm) | kg/km | Ω /km | kV/5min | In air (A) | In soil(A) |
| 3 × 35 | 7/2.52 | 5.5 | 1.8 | 2 × 0.5 | 2.9 | 58.0 | 4840 | 0.524 | 42 | 140 | 155 |
| 3 × 50 | 10/2.52 | 5.5 | 1.8 | 2 × 0.5 | 3.0 | 61.0 | 5463 | 0.387 | 42 | 165 | 180 |
| 3 × 70 | 14/2.52 | 5.5 | 2.0 | 2 × 0.5 | 3.1 | 65.0 | 6446 | 0.268 | 42 | 210 | 220 |
| 3 × 95 | 19/2.52 | 5.5 | 2.0 | 2 × 0.5 | 3.2 | 68.0 | 7457 | 0.193 | 42 | 255 | 265 |
| 3 × 120 | 24/2.52 | 5.5 | 2.0 | 2 × 0.5 | 3.3 | 71.0 | 8459 | 0.153 | 42 | 290 | 300 |
| 3 × 150 | 30/2.52 | 5.5 | 2.2 | 2 × 0.5 | 3.4 | 75.0 | 10555 | 0.124 | 42 | 330 | 340 |
| 3 × 185 | 37/2.52 | 5.5 | 2.2 | 2 × 0.5 | 3.5 | 78.0 | 11925 | 0.0991 | 42 | 375 | 380 |
| 3 × 240 | 48/2.52 | 5.5 | 2.2 | 2 × 0.8 | 3.7 | 83.0 | 13959 | 0.0754 | 42 | 435 | 435 |
| 3 × 300 | 61/2.52 | 5.5 | 2.2 | 2 × 0.8 | 3.9 | 88.0 | 16314 | 0.0601 | 42 | 495 | 485 |
| 3 × 400 | 61/2.97 | 5.5 | 2.3 | 2 × 0.8 | 4.1 | 95.0 | 19032 | 0.047 | 42 | 565 | 520 |
Construction
| 1. Conductor material: | Copper | |
| 2. Sheath Material | PVC | |
| 3.Insulation Material | XLPE | |
| 4.Filler | Fiberglass tape or non-woven fabric | |
| 5.Armour | STA, SWA |
8. Product Image
