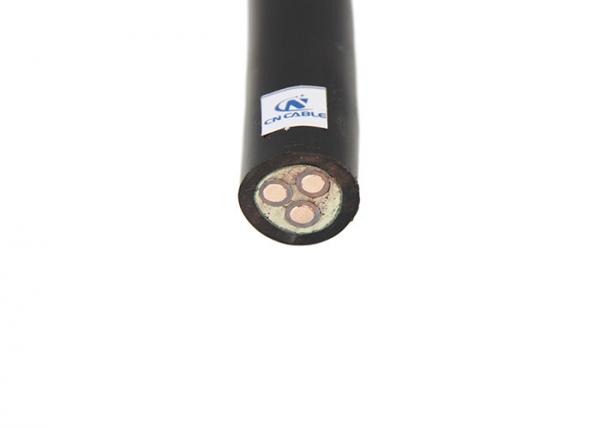

25mm2 LV Power Cable

 China 25mm2 LV Power Cable supplier

25mm2 LV Power Cable image

Get a Quote Email to us

Model Number :LV Cable 25 mm2
Place of Origin :Henan, China (Mainland)
MOQ :200 Meter/Me
Insulation Material :XLPE
Type :without amoured
Application :underground, canal, water and seabed
Conductor Material :Copper conductor
Jacket :PVC/PE
Filler :PVC
Core Number :3
Insulation :XLPE
Dia :25mm2
Outer Sheath :PVC sheath
Rated voltage :600V/1kv
Standard :According to customer needs



PVC Outer Sheath 3 Core XLPE Insulated 25mm2 Copper Conductor Low Voltage Cable

Product Description

The three-core cable is a wire on the outside and three wires on the inside. The three-core power cord generally comes with brown wire as the live wire, blue wire as the neutral wire, and yellow-green wire as the ground wire. The three-core cable can be used for three-phase power or Ground single-phase power supply line.



Application:

25mm2 Low Voltage Cable are used for laying indoor, tunnel, underground, canal, water and seabed, etc.



Standard:

IEC60502-1 , BS 5467, ICEA S-95-658, CSA C22.2 , NFC 33-210 /NFC 32-322, AS-NZS 5000.1,etc



Why is CN CABLE?



Construction:

3 Core Cu Conductor+Xlpe Insulation + PVC Inner sheath + PVC Outer Sheathe



Advantage:







Three (3) core, XLPE Insulated Power Cable
Size Cable dia. Cable weight
None-armored Steel tape armored Steel wire armored None-armored Steel tape armored Steel wire armored
CU AL CU AL CU AL
mm2 mm kg/km
16 18.1 20.9 23.4 629 335 846 552 1175 880
25 21.1 23.9 27.1 923 465 1175 718 1705 1248









Packaging & Shipping













We are China 25mm2 LV Power Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
