25mm 3 Core Electrical Cable , Aluminium Wire Armoured Cable XLPE Insulation

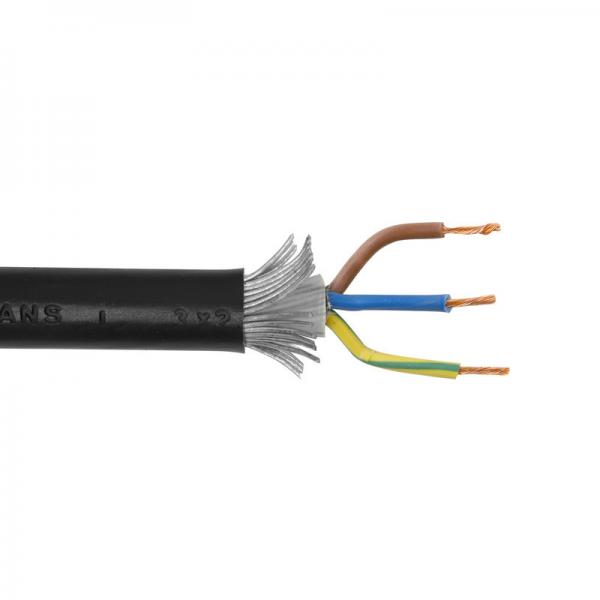

25mm 3 Core Electrical Cable , Aluminium Wire Armoured Cable XLPE Insulation image

Get a Quote Email to us

Brand Name :
HOLD-ONE

Certification :
ISO,CE,IEC,TUV,KEMA

Place of Origin :
China

MOQ :
500 Meters

Price :
US$ 0.35-120 / Meter

Payment Terms :
T/T, L/C

Supply Ability :
15,000 KM / Month

Delivery Time :
a week or two

Packaging Details :
Wooden Drums or Steel

Product Model :
AL/XLPE/STA/PVC YJLV22

Conductor :
Aluminum

Insulation :
XLPE

Armour material :
Steel Tape

Cores :
three phase

Voltage :
High Voltage

Sheath material :
PVC, PE, LSOH

Warranty :
two years

Certificate :
KEMA, Type test

Standard :
IEC, BS, IS, VDE

Aluminum Conductor Steel Tape Armoured Electrical Cable Three Phase XLPE Insulation High Voltage Cable

Used for power transmission and distribution line with voltage rated at 35kV and below.
High and Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain.

PVC insulated power armoured electrical cable is suitable for electricity transmission and distribution line whose rated voltage is 0.6/1kV. The flame retardant type is used in place where high density and good fire-proof property are required, such as subway, power station, high-rise building, entertainment place, large industriall and mining enterprises etc

Property

1. The highest allowed operating temperature of conductor for long-term working is 90 degrees.
2. In short circuit (Max long term is no more than 5 seconds),the highest temperature for conductor is no more than 250 degrees.
3. the environmental temperature of operating in air should be no more than 40 degrees, and 25 degrees underground.
4. Excellent electrical performance, resistance to chemical corrosion.

Conductor

Plain, annealed electrolytic copper or Aluminum conductors, solid, circular stranded, or sectorial stranded, conforming to the applicable requirements of IEC 60228.

Insulation

PVC based thermoplastic or XLPE thermosetting material, conforming to the

applicable requirements of IEC 60502-1.

Assembly

Insulated conductors are laid up, filled where necessary with non-hygroscopic material and covered with an extruded thickness of thermoplastic mate

Features

► High dielectric strength

► Excellent resistance to deformations under high temperature and pressure

► High resistance to ageing, abrasion, moisture, chemicals, acids and oils

► Standard: IEC60502-1, BS5467, BS6346 ,VDE 0276-603, IEC60502-2 ,BS 6622

Voltage rating for Medium Voltage XLPE Power Cable	No. x Nominal Cross Section of Conductor No. x mm2
Voltage rating for Medium Voltage XLPE Power Cable	1 core	3 core
3.6/6(7.2)kV 3.6/6.6(7.2) kV, 6/10(12)kV 8.7/10(12)kV, 8.7/15(17.5)kV 12/20(24)kV 18/30(36)kV 21/35(40.5)kV 26/35(40.5)kV	1x 25 mm2	3x 25 mm2
	1×35 mm2	3x 35 mm2
	1×50 mm2	3x 50 mm2
	1×70 mm2	3x 70 mm2
	1×95 mm2	3x 95 mm2
	1×120 mm2	3x 120 mm2
	1×150 mm2	3x 150 mm2
	1×185 mm2	3x 185 mm2
	1×240 mm2	3x 240 mm2
	1×300 mm2	3x 300 mm2
	1×400 mm2	3x 400 mm2
	1×500 mm2	3x 500 mm2
	1×630 mm2

We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.

We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!
