24V DC Slewing Ring Drive With Hydraulic Motor For Sun Solar Tracker

 China 24V DC Slewing Ring Drive With Hydraulic Motor For Sun Solar Tracker supplier

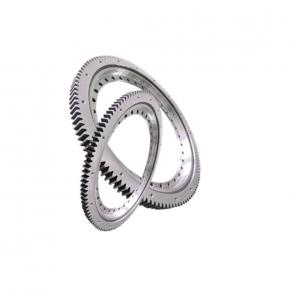

24V DC Slewing Ring Drive With Hydraulic Motor For Sun Solar Tracker image

Get a Quote Email to us

2wProduct Description

Drawing No. Balltrackdia. DL [mm] Tooth width Permissible tangential forcesnormal Permissible tangential forcesmaximum
Weight Outerdiameter Innerdiameter Overall External Internal Number of bolt
(O.D.) (I.D) height bolt circle dia. bolt circle dia. holes per hole circle
Da Di H La Li n b
[kg] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [kN] [kN]
011.20.0755.000.11.1504 011.20.0755.001.21.1504 101 862,8 679 82 800 706 24 50 1560 2400 3120 4800
011.20.0971.000.11.1504 011.20.0971.001.21.1504 128 1078,4 895 82 1015 922 30 50 2080 3200 4160 6400
011.20.1220.000.11.1504 011.20.1220.001.21.1504 178 1342,4 1140 82 1270 1170 48 58 2915 4483 5830 8966
011.20.1385.000.11.1504 011.20.1385.001.21.1504 201 1502,4 1305 82 1435 1335 54 58 2915 4483 5830 8966
011.25.1200.600.11.1503 011.25.1200.601.21.1503 301 1378,6 1100 102 1290 1135 36 76 4770
6975
9540 13950
011.25.1461.000.11.1503 011.25.1461.001.21.1503 381 1648,6 1360 102 1555 1395 40 76 4770
6975
9540 13950
011.25.1800.000.11.1503 011.25.1800.001.41.1503 488 2001,6 1700 102 1890 1735 48 76 5725 8371 11450 16742
011.30.1440.190.11.1503 011.30.1440.191.41.1503 520 1653,6 1320 120 1545 1365 36 91 685
1002
1371
2004
011.30.1734.000.11.1503 011.30.1734.001.41.1503 636 1953,6 1615 120 1845 1660 44 91 685
1002
1371
2004
011.30.2031.600.11.1503 011.30.2031.601.41.1503 755 2253,6 1910 120 2140 1955 48 91 685
1002
1371
2004
011.30.2235.000.11.1503 011.30.2235.001.41.1503 827 2457,6 2115 120 2345 2160 52 91 685
1002
1371
2004
011.35.1750.700.11.1503 011.35.1750.701.41.1503 789 1985,2 1620 138 1860 1670 44 104 914
1336
1828
2672
011.35.2220.000.11.1503 011.35.2220.001.41.1503 1019 2461,2 2090 138 2335 2135 60 104 914
1336
1828
2672
011.35.2620.000.11.1503 011.35.2620.001.41.1503 1244 2876,8 2490 138 2735 2540 60 104 1045
1527
2090
3054
011.40.2240.000.11.1502 011.40.2240.001.41.1502 1316 2524,8 2090 156 2375 2145 48 117 1175
1627
2351
3255
011.40.2619.000.11.1502 011.40.2619.001.41.1502 1615 2912,4 2465 156 2755 2520 52 117 1322
1831
2645
3662
011.40.2795.000.11.1502 011.40.2795.001.41.1502 1723 3096,0 2645 156 2930 2700 54 117 1469
2034
2939
4068
011.40.2915.000.11.1502 011.40.2915.001.41.1502 1790 3216,0 2765 156 3050 2820 60 117 1469
2034
2939
4068
011.40.3150.000.11.1502 011.40.3150.001.41.1502 1969 3456,0 3000 156 3285 3055 60 117 1469
2034
2939 4068
011.50.2987.001.49.1502 2288 3290,4 2820 185 3130 2880 66 138 2160 4320
011.50.3167.001.49.1502 2431 3470,4 3000 185 3310 3060 66 138 2160 4320
011.50.3347.001.49.1502 2566 3650,4 3180 185 3490 3240 72 138 2160 4320
011.50.3567.001.49.1502 2702 3866,4 3400 185 3710 3460 78 138 2160 4320
011.50.3747.001.49.1502 2837 4046,4 3580 185 3890 3640 84 138 2160 4320
011.50.4140.001.49.1502 3282 4456,0 3970 187 4285 4030 90 140 2434 4869
012.18.0748.000.11.1504 012.18.0748.002.21.1504 90 823 648 77 798 705 24 45 1520 2325 3040 4650
012.20.0895.000.11.1504 012.20.0895.001.21.1504 118 971 784 82 944 850 30 50 2260 3475 4520 6950
012.20.1085.000.11.1504 012.20.1085.001.21.1504 154 1161 960 90 1134 1040 36 55 3110 4800 6220 9600
012.20.1360.000.11.1504 012.20.1360.001.21.1504 213 1440 1210 82 1410 1300 54 58 3640 5600 7280 11200
012.25.1360.600.11.1503 012.25.1360.601.21.1503 336 1460 1180 102 1425 1270 36 76 4770
6975
9540
13950
012.25.1600.000.11.1503 012.25.1600.001.21.1503 405 1700 1404 102 1665 1510 42 76 5720
8370
11440
16740
012.30.1381.000.11.1503 012.30.1381.001.41.1503 474 1500 1164 120 1455 1275 36 91 685
1002
1370
2004
012.30.1630.000.11.1503 012.30.1630.001.41.1503 558 1750 1416 120 1705 1525 40 91 685
1002
1370
2004
012.30.1800.000.11.1503 012.30.1800.001.41.1503 643 1920 1568 120 1875 1695 48 91 685
1002
1370
2004
012.30.1995.000.11.1503 012.30.1995.001.41.1503 716 2115 1764 120 2070 1890 48 91 800
1169
1600
2338
012.30.2330.000.11.1503 012.30.2330.001.41.1503 839 2450 2100 120 2405 2225 54 91 800
1169
1600
2338
012.30.2538.000.11.1503 012.30.2538.001.41.1503 963 2660 2288 120 2615 2430 60 91 914
1336
1828
2672
012.35.1960.400.11.1503 012.35.1960.401.41.1503 851 2090 1722 138 2045 1850 52 104 914
1336
1828
2672
012.35.2500.000.11.1503 012.35.2500.001.41.1503 1112 2630 2254 138 2585 2385 66 104 914
1336
1828
2672
012.35.2690.000.11.1503 012.35.2690.001.41.1503 1225 2820 2432 138 2775 2580 72 104 1045
1527
2090
3054
012.40.2199.300.11.1502 012.40.2199.301.41.1502 1238 2350 1920 156 2295 2065 52 117 1175
1627
2350
3255
012.40.2622.400.11.1502 012.40.2622.401.41.1502 1495 2770 2336 156 2715 2485 60 117 1175
1627
2350
3255
012.40.2950.000.11.1502 012.40.2950.001.41.1502 1764 3100 2646 156 3045 2815 60 117 1322
1831
2645
3662
012.40.3300.000.11.1502 012.40.3300.001.41.1502 1935 3450 3006 156 3395 3165 66 117 1322
1831
2645
3662
012.45.2940.000.19.1502 012.45.2940.001.49.1502 1950 3100 2656 175 3045 2800 66 132 1326
1836
2652
3673
012.45.3400.100.19.1502 012.45.3400.101.49.1502 2435 3560 3080 175 3505 3260 72 132 1658
4591
3316
2295
012.50.2559.201.49.1502 1892 2725 2250 185 2670 2410 60 138 2160 4320
012.50.3520.001.49.1502 2657 3685 3200 185 3630 3370 78 138 2400 4800
012.50.3739.001.49.1502 2823 3905 3420 185 3850 3590 84 138 2400 4800
012.50.3839.001.49.1502 2905 4005 3520 185 3950 3690 84 138 2400 4800

We are China 24V DC Slewing Ring Drive With Hydraulic Motor For Sun Solar Tracker manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
