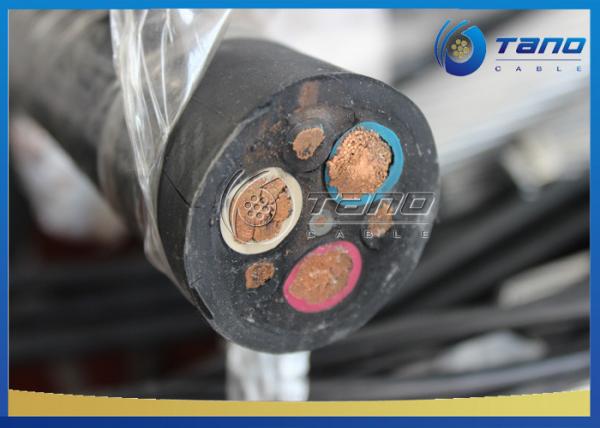

241.1 Rubber Insulated Cable Flexible Mining Cable 0.6 / 1kV Low Voltage image
Brand Name :
TANO CABLE
Model Number :
H05RN-F H07RN-F
Certification :
ISO CE
Place of Origin :
Zhengzhou, China
MOQ :
2000m
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20000 mts per month
Delivery Time :
525 work days
Packaging Details :
by wooden drum, steel-wooden drum and steel drum with strong protection to suit for the long-distance delivery
material :
annealed copper conductor
Type :
241.1
application :
mining
conductor type :
flexible
voltage :
low voltage
product name :
mining cable
TANO CABLE 241.1 Rubber Insulated Flexible Mining Cable
Application
Mining cables are often used to transport power deep into a mineshaft for powering and controlling mining equipment. They're often subjected to mechanical abuse, extreme weather, extreme temperatures, moisture, abrasion, corrosive agents and highly explosive atmospheres. Due to the unforgiving environment, special standards are mandated for cables and electrical distribution in both open-pit and underground mining.
Standard
AS/NZS 1802:2003
AS/NZS 1125
AS/NZS 3808
AS/NZS 5000.1
Construction
1. Conductor: class 5 plain annealed tinned copper conductor
2. Insulation: EPR(red, white, blue)
3. Insulation screen: semi-conductive elastomer
4. Earth core: Semi-conductive PCP insulated (Black)
5. Central pilot core: EPR insulated (Grey)
6. Cradle separator: semi-conductive PCP(Black)
7. Semi-conductive elastomer screen for core assembly
8. Textile braid reinforcement
9. Outer sheath: Heavy duty PCP(Black).Heavy duty CPE/CSP sheath can be offered upon request.
Voltage
0.6/1kV
Package
Standard Wooden Drum With Protection
1/2/3 km/reel, or according to customer's request
Technical data
Nominal Conductor Area |
Strand Size |
Insulation Thickness |
Earth Conductor | Pilot Conductor | Thickness of Sheath Including SC PCP Layer |
Nominal Overall Diameter |
Nominal Weight |
||
Strand Size |
Thickness of Covering |
Strand Size |
Thickness of Covering |
||||||
mm2 | No/mm | mm | No/mm | mm | No/mm | mm | mm | mm | kg/km |
6 | 84/0.30 | 1.5 | 18/0.30 | 1.0 | 24/0.20 | 0.8 | 3.8 | 28.5 | 1060 |
10 | 77/0.40 | 1.5 | 27/0.30 | 1.0 | 24/0.20 | 0.8 | 3.8 | 31.1 | 1270 |
16 | 126/0.40 | 1.6 | 42/0.30 | 1.0 | 24/0.20 | 0.8 | 3.9 | 34.1 | 1640 |
25 | 209/0.40 | 1.6 | 66/0.30 | 1.0 | 24/0.20 | 0.8 | 4.2 | 37.9 | 2080 |
35 | 285/0.40 | 1.6 | 90/0.30 | 1.0 | 24/0.20 | 0.8 | 4.4 | 41.2 | 2540 |
50 | 380/0.40 | 1.7 | 120/0.30 | 1.0 | 40/0.20 | 0.8 | 4.9 | 45.9 | 3280 |
70 | 203/0.67 | 1.8 | 39/0.67 | 1.0 | 40/0.20 | 0.8 | 5.3 | 52.2 | 4800 |
95 | 259/0.67 | 2.0 | 39/0.67 | 1.0 | 40/0.20 | 0.8 | 5.8 | 56.7 | 6000 |
120 | 336/0.67 | 2.1 | 42/0.67 | 1.2 | 40/0.20 | 0.8 | 6.3 | 62.7 | 7100 |
150 | 427/0.67 | 2.3 | 54/0.67 | 1.2 | 40/0.20 | 0.8 | 6.7 | 68.3 | 8650 |
185 | 518/0.67 | 2.5 | 63/0.67 | 1.4 | 40/0.20 | 0.8 | 7.3 | 74.9 | 10300 |
240 | 672/0.67 | 2.8 | 77/0.67 | 1.4 | 40/0.20 | 0.8 | 8.0 | 83.3 | 13000 |
300 | 854/0.67 | 3.0 | 98/0.67 | 1.4 | 40/0.20 | 0.8 | 8.7 | 91.2 | 16000 |
Port
Qingdao, shanghai,ningbo,etc.
