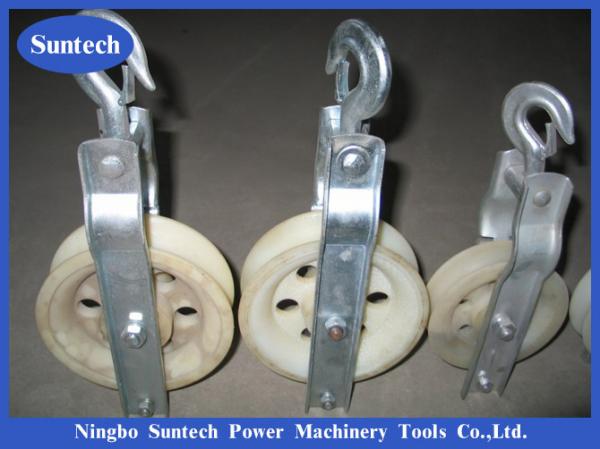

20KN MC Nylon Material Transmission Line Stringing Tools
20KN MC Nylon Material Transmission Line Stringing Tools image
Brand Name :
Suntech
Model Number :
SHDN
Certification :
ISO
Place of Origin :
Ningbo,China
MOQ :
1 SET
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
900 sets per month
Delivery Time :
7-10 DAYS AFTER DEPOSIT
Packaging Details :
Exported Wooden Boxes and pallets
Material :
MC Nylon Sheave
Type :
Stringing Equipment
Name :
Single Sheave Stringing Blocks
Rated Load :
20KN
Warranty :
One Year
Weight :
9.5KG
Usage :
Transmission Line
SHDN Model Transmission Line Stringing Tools Light Weight MC Nylon Material

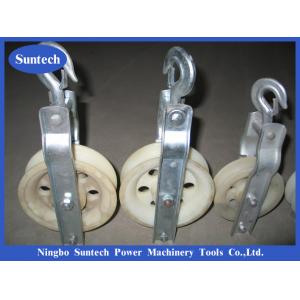

SHDN Model Stringing Equipment Accessories Nylon Single Conductor Pulleys
Stringing Equipment Accessories Nylon Single Conductor Pulleys
Wheel material aluminum or nylon, and it could be covered by rubber.
Cable Pulley
Stringing blocks have different diameter were used to string different conductors.
Our Large diameter stringing blocks are High strength and flexibility,easy to use,light weight,and long service.
Product: stringing pulley blocks; stringing blocks.
Usage:Protect the cable and conductor from fricting when they are laying.They can save time and effort.
Description:
a. We manufacture a lot of models for different uses in the overhead transmission line construction.
b. They have are used to support conductors,OPGW,ADSS, communicatio lines.
c. The sheave of the pulley blocks are made from higth strength MC nylon,or aluminum materials ,and the frame of blocks are made of galvanized steel.The lateral ones are mounted on ball bearings.
Remarks:All kinds of pulley blocks can be manufactured according to the customers's requirements.
If any interested,please feel free to contact with us for more information,and we will try our best to comply with your requirements
Performance
| Model |
Wheel size Diameter x Width (mm) |
Conductor size (mm2) |
Rated load (kN) |
Weight (kg) |
Wheel material |
| SHD-120X30 | 120×30 | 25~70 | 5 | 2.1 | Aluminum |
| SHD-160X40 | 160X40 | 95~120 | 10 | 3.1 | |
| SHD-200X40 | 200X40 | 150~240 | 15 | 3.7 | |
| SHD-200X60 | 200X60 | 150~240 | 15 | 4.1 | |
| SHD-250X40 | 250X40 | 150~240 | 20 | 5.1 | |
| SHD-250X60 | 250X60 | 300~400 | 20 | 5.4 | |
| SHD-270X60 | 270X60 | 300~400 | 20 | 6.7 | |
| SHD-320X60 | 320X60 | 300~400 | 20 | 10.4 | |
| SHD-400X80 | 400X80 | 400~500 | 20 | 11.9 | |
| SHDN-120X30 | 120×30 | 25~70 | 5 | 1.5 | Nylon |
| SHDN-160X40 | 160X40 | 95~120 | 10 | 2.3 | |
| SHDN-200X40 | 200X40 | 150~240 | 15 | 2.5 | |
| SHDN-200X60 | 200X60 | 150~240 | 15 | 3.0 | |
| SHDN-250X40 | 250X40 | 150~240 | 20 | 3.6 | |
| SHDN-250X60 | 250X60 | 300~400 | 20 | 3.8 | |
| SHDN-270X60 | 270X60 | 300~400 | 20 | 4.3 | |
| SHDN-320X60 | 320X60 | 300~400 | 20 | 7.5 | |
| SHDN-400X80 | 400X80 | 400~500 | 20 | 8 | |
| SHD-508X75 | 508X75 | ≤400 | 20 | 22.3 | Aluminum |
| SHD-660X100 | 660X100 | ≤500 | 20 | 30 | |
| SHDN-508X75 | 508X75 | ≤400 | 20 | 18 | Nylon |
| SHDN-660X100 | 660X100 | ≤500 | 20 | 20 | |
| SHDN-822X110 | 830X110 | ≤630 | 30 | 25 | |
| SHDN-916X110 | 916X110 | ≤800 | 50 | 45 | |
| SHDN-1040X125 | 1040X125 | ≤1000 | 55 | 105 | |
| SHDN-1160X150 | 1160X150 | ≤1250 | 60 | 165 | |
| SHDNN-255X110 | 255X110 | ≤630 | 100 | 77 | |
| SHDNN-325X150 | 325X150 | ≤1520 | 120 | 85 |
We are China 20KN MC Nylon Material Transmission Line Stringing Tools manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: 20KN Nylon Single Conductor Pulleys, 20KN Single Sheave Stringing Blocks, MC Nylon Material Stringing Tools, Transmission Line Stringing ToolsSimilar Or Related
