20kN ACSR Conductor Stringing Heavy Duty Pulley Block

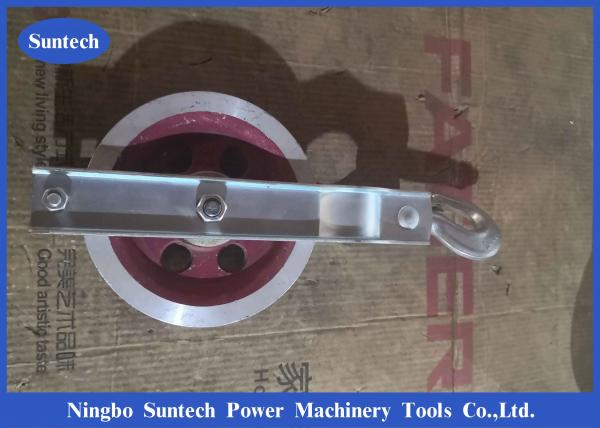

20kN ACSR Conductor Stringing Heavy Duty Pulley Block image
Brand Name :
Suntech
Model Number :
SHD
Certification :
ISO9001
Place of Origin :
Ningbo,Zhejiang,China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T,Western Union, MoneyGram
Supply Ability :
2000pcs per month
Delivery Time :
5-7 days after payment
Packaging Details :
Exporting Cases or Containers
Nylon Material :
Aluminum
Name :
Stringing Conductor Block
Usage :
ACSR Conductor
Applicable Conductor ACSR :
LGJ25-500
Type :
Single Wheel Stringing Blocks
Rated Load :
5-20KN
Transmission Line Conductor Stringing Block And Pulley ,Heavy Duty Pulley Block
Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China. Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.
Use and Characteristic
Apply to pull conductor on straight pole.Splicing sleeve,steel wire rope and connector can pass through the groove.
Pulley Block With Hook Single Sheave is used for releasing the aluminum wire, ACSR, insulated wire in pole and tower erection.
The wheel groove can be through with clamp pipe, aluminum tube, connector etc..
The material is aluminum alloy and MC nylon .
Pulley pendant is combined plate and hook type.
The stringing roller is suitable to string single stranded aluminum and ACSR conductors on tangent structures in overhead transmission line.
The sheaves of stringing block are made of aluminum alloy lined with neoprene or high strength MC nylon. All the sheaves are mounted on ball bearings. The frame of block is made of galvanized steel.
| Item number | Model | Suitable conductor | Rated load | Weight | Remark |
| (kN) | (kg) | ||||
| 10171 | SHD-120×30 | LGJ25～70 | 5 | 1.5 | |
| 10172 | SHD-160×40 | LGJ95～120 | 10 | 2.5 | Aluminium sheave |
| 10173 | SHD-200×40 | LGJ150～240 | 15 | 4 | |
| 10174 | SHD-200×60 | LGJ150～240 | 15 | 4.6 | |
| 10175 | SHD-250×40 | LGJ150～240 | 20 | 4.6 | |
| 10176 | SHD-250×60 | LGJ300～400 | 20 | 6 | |
| 10177 | SHD-270×60 | LGJ300～400 | 20 | 7 | |
| 10178 | SHD-320×60 | LGJ300～400 | 20 | 9.5 | |
| 10179 | SHD-400×80 | LGJ400～500 | 20 | 15 | |
| 10191 | SHDN-120×30 | LGJ25～70 | 5 | 1.5 | |
| 10192 | SHDN-160×40 | LGJ95～120 | 10 | 2.5 | Nylon sheave |
| 10193 | SHDN-200×40 | LGJ150～240 | 15 | 3.6 | |
| 10194 | SHDN-200×60 | LGJ150～240 | 15 | 4 | |
| 10195 | SHDN-250×40 | LGJ150～240 | 20 | 4 | |
| 10196 | SHDN-250×60 | LGJ300～400 | 20 | 4.5 | |
| 10197 | SHDN-270×60 | LGJ300～400 | 20 | 5.6 | |
| 10198 | SHDN-320×60 | LGJ300～400 | 20 | 6.7 | |
| 10198-1 | SHDN-320×80 | LGJ300～400 | 20 | 8 | |
| 10199 | SHDN-400×80 | LGJ400～500 | 20 | 13 | |
| 10199-1 | SHDN-400×100 | LGJ400～500 | 20 | 15 | |
| 10199-2 | SHDN-400×120 | LGJ400～500 | 20 | 18 |
We are China 20kN ACSR Conductor Stringing Heavy Duty Pulley Block manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
