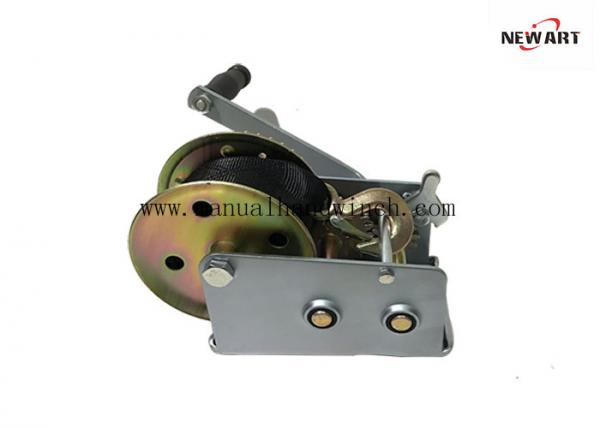

2000 Lb Manual Cable Winch / Color Zinc Plated Boat Trailer Winch With Strap
2000 Lb Manual Cable Winch / Color Zinc Plated Boat Trailer Winch With Strap image
Brand Name :
Suntech
Model Number :
LDC2500W
Certification :
ISO,CE & SGS
Place of Origin :
China
MOQ :
300pcs
Price :
Get newest price
Payment Terms :
L/C, T/T,
Supply Ability :
15000pcs/month
Delivery Time :
30-35days after deposit
Packaging Details :
Exported Cartons and Pallets
Load Capacity :
2000LB(900KG)
Gear Ratio :
4.1:1&9.8:1
Surface Treatment :
Color Zinc Plated
Power Source :
Manual Hand Source
Product name :
Boat Trailer Winch
Application :
Boat & Trailer / Lifting Crane
2000 lb Manual Cable Winch , Color Zinc Plated Boat Trailer Winch With Strap
Ningbo Newart Trailer Winch Co.,Ltd. is a honest factory for kinds of hand winch,hand puller,worm gear winch,jockey wheel,trailer parts.
Also we also have some electric winch,boat winch.Our brake winch is a high quality multi-purpose winch used for a wide variety of lifting and hoisting applications.
The automatic brake ensures the load remains suspended when the crank is released and avoids unchecked descent of the load; there is no freewheeling making the hand winch extremely safe to operate. All the mechanical components are enclosed for protection against dust, dirt and rain contamination. This equipment has a lifting capacity ranging from 800lbs to 2600lbs. It is compact and lightweight yet rugged and durable.
Competitive price and best service to get our customers.Welcome to send inquiries to us.
Features:
1)Reversible ratchet to allow cranking webbing or cable onto the drum in either direction.
2)Load matched gear ratios for easier cranking.
3)2-Ways mode makes both forward and reverse cranking from one side.
4)Heavy duty winch body, Standard mounting holes.
5)Surface Treatment: powder coating and zinc plating.
6)Carbon steel heat treated bushes, shaft and gears.
7)Resistanl to bad weather, Easy to mount, Portable.
8)Mooring Hook Equipped with a Safety pawl.
Specifications:
Model | Capacity (LBS/KN) | Gear Ratio | Handle Length(mm) | Drum-Hub Dia(mm) | Cable Size (mm×m) | Size of Color Belt | PCS/Carton | Size package (cm) |
LDC600C | 600(270) | 3.1:1 | 165 | φ16 | φ4.2×8 | 1.0×50×8m | 6 | 59×26×16 |
LDC800C | 800(360) | 3.1:1 | 175 | φ16 | φ4.2×8 | 1.0×50×8m | 6 | 59×26×16 |
LDC1000C | 1000(450) | 4.1:1 | 200 | φ18 | φ4.2×10 | 1.2×50×8m | 6 | 66×27×18 |
LDC1200C | 1200(540) | 4.1:1 | 225 | φ18 | φ4.2×10 | 1.4×50×8m | 6 | 66×27×18 |
LDC1400C | 1400(630) | 4.5:1 | 225 | φ18 | φ4.5×10 | 1.6×50×8m | 6 | 67×27×19 |
LDC1600C | 1600(720) | 5.1:1 | 225 | φ20 | φ4.8×10 | 1.6×50×8m | 4 | 46×31×20 |
LDC1800C | 1800(810) | 4.1:1&9.8:1 | 250 | φ20 | φ4.8×10 | 1.8×50×8m | 4 | 52×31×20 |
LDC2000C | 2000(900) | 4.1:1&9.8:1 | 250 | φ20 | φ5×10 | 1.8×50×8m | 4 | 52×31×20 |
LDC2500C | 2500(1100) | 5.1:1&12.2:1 | 275 | φ42 | φ5×10 | 2.0×50×8m | 4 | 54×31×22 |
LDC3000C | 3000(1363) | 5.1:1&12.2:1 | 275 | φ42 | φ5×10 | 2.0×50×8m | 4 | 54×31×22 |
LDC3500C | 3500(1590) | 5.1:1&12.2:1 | 275 | φ42 | φ5.5×10 | 2.0×50×8m | 4 |
54×31×22 |
We are China 2000 Lb Manual Cable Winch / Color Zinc Plated Boat Trailer Winch With Strap manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: manual cable winch, manually operated winch, Trailer Spare Parts
