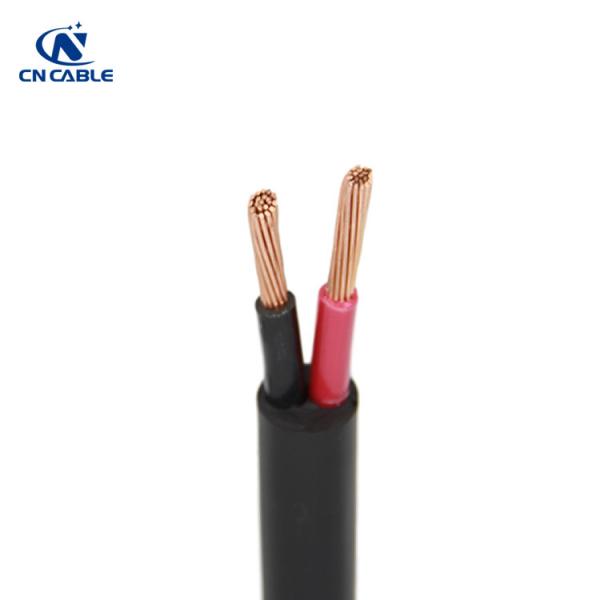

2 Cores Flame Retardant 500V Flexible Electric Cable
2 Cores Flame Retardant 500V Flexible Electric Cable image
Model Number :H05GG-F
Certification :CE, ISO9001
Place of Origin :Henan
MOQ :200meters
Price :USD 0.5-3.0 meter
Payment Terms :L/C, T/T
Delivery Time :1-4 weeks
Packaging Details :Iron-wooden drum
Conductor :Fine tinned copper strands
Core :2 cores
Insulation :Cross-linked elastomere
Jacket :Cross-linked elastomere
Color :Black
Sample :Free
Low Voltage 300/500V Flexible Electric Cable H05GG-F Cable
Application
The H05GG-F cable is for general use in domestic premises, kitchens and offices and for supplying appliances where the cables are subjected to low mechanical stresses. Also for low temperature uses.(eg., cooking appliances, soldering irons, toasters).
Standard
<HAR> HD 22.11 S1
Cable Construction
Technical Characteristics:
Working voltage: 300/500V
Test voltage: 2000V
Flexing bending radius: 4 x O
Static bending radius: 3 x O
Temperature range: -15 oC to +110 oC
Short circuit temperature: 200 oC
Flame retardant: IEC 60332 -1
Halogen-free: IEC 60754-1
Low smoke: IEC 60754-2
Smoke density: IEC 61034
Cable Parameter
| AWG | No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Thickness of sheath | Nominal Overall Diameter | Nominal Weight |
| # x mm^2 | mm | mm | mm | kg/km | |
| 18(24/32) | 2×0.75 | 0.6 | 0.8 | 6.3 | 53 |
| 17(32/32) | 2×1 | 0.6 | 0.9 | 6.8 | 64 |
| 16(30/30) | 2×1.5 | 0.8 | 1 | 8.3 | 95 |
| 14(50/30) | 2×2.5 | 0.9 | 1.1 | 9.8 | 140 |
| 18(24/32) | 3×0.75 | 0.6 | 0.9 | 6.8 | 65 |
| 17(32/32) | 3×1 | 0.6 | 0.9 | 7.2 | 77 |
| 16(30/30) | 3×1.5 | 0.8 | 1 | 8.8 | 115 |
| 14(50/30) | 3×2.5 | 0.9 | 1.1 | 10.4 | 170 |
| 12(56/28) | 3 x 4 | 1 | 1.2 | 12.2 | 240 |
| 10(84/28) | 3 x 6 | 1 | 1.4 | 13.6 | 320 |
| 18(24/32) | 4×0.75 | 0.6 | 0.9 | 7.4 | 80 |
| 17(32/32) | 4×1 | 0.6 | 0.9 | 7.8 | 95 |
| 16(30/30) | 4×1.5 | 0.8 | 1.1 | 9.8 | 145 |
| 14(50/30) | 4×2.5 | 0.9 | 1.2 | 11.5 | 210 |
| 12(56/28) | 4 x 4 | 1 | 1.3 | 13.5 | 300 |
| 10(84/28) | 4 x 6 | 1 | 1.5 | 15.4 | 405 |
| 18(24/32) | 5×0.75 | 0.6 | 1 | 8.3 | 100 |
| 17(32/32) | 5×1 | 0.6 | 1 | 8.7 | 115 |
| 16(30/30) | 5×1.5 | 0.8 | 1.1 | 10.7 | 170 |
| 14(50/30) | 5×2.5 | 0.9 | 1.3 | 12.8 | 255 |
We are China 2 Cores Flame Retardant 500V Flexible Electric Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
