2 Core 4 Core Indoor Outdoor Telephone Cable Wire Copper Conductor -10℃-70℃
2 Core 4 Core Indoor Outdoor Telephone Cable Wire Copper Conductor -10℃-70℃ image
Brand Name :
JHY CABLE
Model Number :
telephone cable
Certification :
ISO9001/ISO14001 /OHSAS18001/CCC
Place of Origin :
SHENZHEN CHINA
MOQ :
1000m
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20 kilometer/ day
Delivery Time :
10~15 working days
Packaging Details :
100 meters per roll or 200 meters per roll or according to the customer’s request.
Conductor :
Plain annealed copper wire
Core :
2 cores or 4 cores
Insulation :
PE or HDPE
Jacket :
PVC or PE
Package :
200 meters/roll
Conductor diameter :
0.5mm
Operating Temperature :
-10℃-70℃
Type :
Cat 3
Standard :
IEC60708,YD/T840,YD/T322,AS/ACIF S008
Color :
different color you required
Application :
networking
2 core 4 core indoor outdoor copper conductor telephone cable
Production Description:
1. Production specifications
– Bare copper
– Color-coded PE insulation
– Lead free PVC or LSZH or PE jacket
– Fire classionfication
PVC IEC60332-1
LSZH IEC60332-1/IEC61034/IEC60754
– Min Insulation bending radius:4*D
2. Production Application
- These cables are used for the connection between floor cabling system in the telephone communication cabling system and the user’s telephone outlet.
- Transmitting audio frequency signals,analog signals up to 150kHz or digital signals up to 2048kbits/s. The product is suitable for transmitting system of long-distance optical network cell and subscriber, or subsystem abd connection between floor and floor in integrated wiring system of buildings. Transmitting frequency(Max.):30MHz or 100MHz.
3. Company Certificates
ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.
4. Features
- Fast and Convenient Connection
- The Perfect Combination of the High Quality Cat5e Cable and RJ45 Connetor
- Multi-Strands Conductor Insures the Excellent Reliability and Stability.
- Color in Grey, Blue, Yellow, Red or as per Your Requirements
5. Tabular data
Construction
| 1. Conductor material: | Solid bare copper 0.50mm | |
| 2. Insulation material: | HDPE (High density Polyethylene) | |
| 3. Outer sheath material: | PVC | |
| 4. Drain Wire: | Tinned Copper | |
| 5. Rip cord: | Nylon |
Packaging
| Approx.Weight | Package | Package Dimension(cm) | Outer packing |
| 2.82 kg | 200 m per roll | 20 x 20 x 8 |
Carton box |

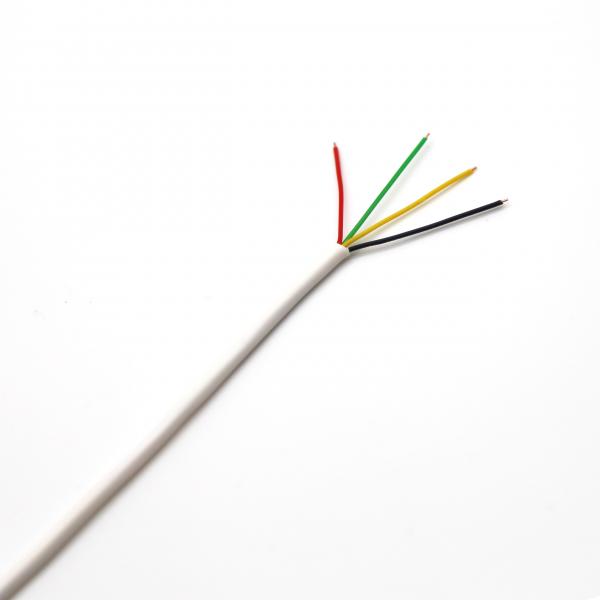

6. Product Image
7. Company certificate
ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.
8. Company information
Company Contact Information:
| OUR SERVICE | |
|
To provide quality products and excellent service are our missions. OEM and ODM are welcome. Above we provide a wide range of products’ information, any further information you need please contact us as below: Our entire team can serve you and look forward to working with you. |
Shenzhen Jinhuanyu Wire and Cable Co., Ltd. Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc
Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106 |
We are China 2 Core 4 Core Indoor Outdoor Telephone Cable Wire Copper Conductor -10℃-70℃ manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
