2 Core 1.5mm 2.5mm PVC Insulated 450V 750V LV Power Cable

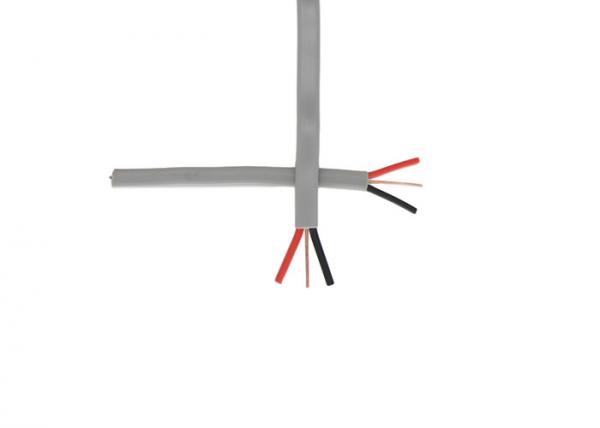

2 Core 1.5mm 2.5mm PVC Insulated 450V 750V LV Power Cable image
450/750V 2 Core 1mm 1.5mm 2.5mm PVC Insulated Copper Electric Flat Wires
Application
The cable is mainly used in power lines, control lines and signal transmission lines for electrical appliances, instruments, electronic equipment and automation devices. It can be used in burglar alarm systems, building intercom systems, etc. And it can also be used for connecting small home appliances such as vacuum cleaners, washing machines, refrigerators, etc.
Construction
Cu conductor, PVC Insulation, PVC Sheath, LSHF, Flame retardant are both available if required.
Standard
IEC227, BS6004, ANSI
Why is CN CABLE?
1. Factory price
2. Customized cable
3. Quality assurance
4. Project experience
Packing
Roll/ Wooden drum
Technical parameter
| 450/750V , 2Core, 3Core Flat Electric Wire | ||||||||
| Core No. | Conductor Size | Cu conductor | Insulation | Outer sheath | Overall Dimension | Approx. Weight | ||
| mm2 | Str. No. | Dia. | Nominal Thickness | Thickness | Width | Height | kg/km | |
| 2 | 1.5 | 1 | 1.38 | 0.7 | 0.9 | 7.4 | 4.6 | 63 |
| 2 | 2.5 | 1 | 1.78 | 0.8 | 1 | 8.8 | 5.4 | 94 |
| 2 | 4 | 7 | 2.55 | 0.8 | 1 | 10.3 | 6.2 | 132 |
We are China 2 Core 1.5mm 2.5mm PVC Insulated 450V 750V LV Power Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: 2.5mm LV Power Cable, 750V LV Power Cable, LV Power Cable, PVC Jacket Copper Core CableSimilar Or Related
