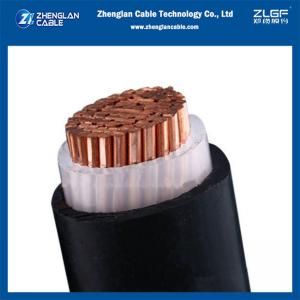

1x95sqmm Low Voltage Power Cable Copper Core Xlpe Insulated Flame Retardant image

Get a Quote Email to us

1kv 1x95sqmm copper core xlpe insulated flame retardant pvc sheathed low voltage power cable IEC60502-1

Applications:

These cables are used for electricity supply in low voltage installation system. Such as high rise buildings and apartments, airports, shopping centres, cinemas and road and rail tunnels. And tall building, Hospital, Theatre, Power station, Metro Tunnel or Petrochemical Industry or other special place required for low smoke , zero halogen clean and safe cable.

Construction:
Conductors:Copper or Aluminium conductor, round standed or Shaped, Class 2 to IEC 60228, BS EN 60228. For smaller sizes, a solid round conductor, Class 1 as per IEC 60228, BS EN 60228 can also be supplied upon request.

Noted: Insulation color as per standards or customer requirement.

Standard:

Basic design to IEC 60502-1, IEC 60228,BS EN 60228
China: GB/T 12706.2-2008
Other standards such as BS7870,DIN and ICEA upon request

Certificates:
CE, ROHS,KEMA and more others at request

Insulation:XLPE material and thickness shall be as per IEC 60502 or BS 5467 rated for 90°C continuous operation.

Colour Code Colour Code (1):
1 Core: Red or Black; 2 Cores: Red, Black; 3 Cores: Red, Yellow, Blue; 4 Cores: Red, Yellow, Blue, Black; 5 Cores: Red, Yellow, Blue, Black, Green; Above 5 Cores: Black Cores with White numerals

Outer Sheath: Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467.Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSF, CPE are available on request.

Fire Performance of Cable Sheaths: Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, can also supply cables with Low Smoke Halogen Free (LSHF) material according to IEC 60502-1, BS 7211, BS 6724 or other equivalent standards.

Cable Parameters:

Nominal

Cross

Section

Diameter of

Conductor

(Approx.)

Nominal

Insulation

Thickness

Nominal

PVC Sheath

Thickness

Overall

Diameter

(Approx.)

Weight

of Cable

(Approx.)

mm² mm mm mm mm Kg/Km
1×1.5 1.6 0.7 1.4 6.0 50
1×2.5 2.0 0.7 1.4 6.5 70
1×4 2.25 0.7 1.4 7.0 80
1×6 2.76 0.7 1.4 7.5 110
1×10 4.0 0.7 1.4 8.5 150
1×16 5.0 0.7 1.4 9.5 215
1×25 6.3 0.9 1.4 11.5 315
1×35 7.4 0.9 1.4 12.0 415
1×50 8.8 1.0 1.4 13.0 555
1×70 10.6 1.1 1.4 15.0 760
1×95 12.4 1.1 1.5 17.0 1025
1×120 14.0 1.2 1.5 18.5 1270
1×150 15 .5 1.4 1.6 21.5 1575
1×185 17.4 1.6 1.6 23.0 1955
1×240 20.3 1.7 1.7 26.0 2470
1×300 22.7 1.8 1.8 28.0 3155
1×400 25.4 2.0 1.9 32.0 4049
