1kv XLPE Insulated LSZH Sheathed Underground Cable Unarmored 4x10mm2 BS8573

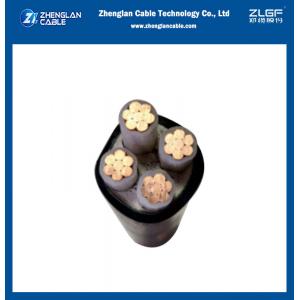

1kv XLPE Insulated LSZH Sheathed Underground Cable Unarmored 4x10mm2 BS8573 image
Brand Name :
Zhenglan cable
Model Number :
XLPE insulated LSZH Sheathed Underground Cable Unarmored 4x10mm2 BS8573
Certification :
3C，ISO 9001:2015，ISO 14001:2005
Place of Origin :
China
MOQ :
500 meters
Price :
0.5-100USD/m
Payment Terms :
L/C, T/T, , Western Union
Delivery Time :
7-10 working days
Packaging Details :
Wooden drum, wood and steel drum, as customer’s request
Name :
XLPE insulated LSZH Sheathed Underground Cable Unarmored 4x10mm2 BS8573
Number of cores :
4 cores
Material :
CU
Insulated :
XLPE
Sheath :
LSZH
Sheath Color :
Black
Certificate :
CCC,ISO9001,ISO14001
Length :
As customer required
XLPE insulated LSZH Sheathed Underground Cable Unarmored 4x10mm2 BS8573
Application
XLPE insulated LSZH Sheathed Underground Cable Unarmored 4x10mm2 BS8573 are generally used for fi xed installation. Suitable for building wiring, especially in areas where smoke and fume emissions may cause a potential threat to life but not for burial in the ground, either directly or in ducts.
Operating characteristics
1.Cable laying temperature: ≥0°C
2.Cable conductor long-term allowable working temperature:≤90°C
3.Higest working temperature of cable in case of short circuit (the longest lasting time is not over 5s): 250°C
4.Minimum allowable bending radius: Single core cable: 20D mm; multi-core cable: 15D mm Note: D is actual outer diameter of the cable
Conductor: Annealed copper conductor, strand according to BS EN 60228 class 2.
Insulation: XLPE type GP8 according to BS 7655-1.3. HEPR type GP6 according to BS 7655-1.2, or crosslinked polyolefi n material type EI 5 according to BS EN 50363-5 can be offered as option.
Inner Covering option: The laid up cores may be coverd by an optional extrued inner covering or separating tape. It shall be possible to separate the cores easily.
Outer Sheath: Thermoplastic LSZH type LTS 4 according to BS 7655-6.1.
Outer Sheath option: UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option.
1kv XLPE insulated LSZH Sheathed Underground Cable Unarmored 4x10mm2 BS8573 Technical parameter
| No. of CoresxCross Section | Class of Conductor | Nominal Insulation Thickness | Nominal Inner Covering Thickness | Nominal Sheath Thickness |
| No.xmm2 | mm | mm | mm | |
| 4×1.5 | 2 | 0.7 | 0.4 | 1.8 |
| 4×2.5 | 2 | 0.7 | 0.4 | 1.8 |
| 4×4.0 | 2 | 0.7 | 0.4 | 1.8 |
| 4×6.0 | 2 | 0.7 | 0.6 | 1.8 |
| 4×10 | 2 | 0.7 | 0.6 | 1.8 |
| 4×16 | 2 | 0.7 | 0.6 | 1.8 |
| 4×25 | 2 | 0.9 | 0.8 | 1.8 |
| 4×35 | 2 | 0.9 | 1 | 1.8 |
| 4×50 | 2 | 1 | 1 | 1.8 |
| 4×70 | 2 | 1.1 | 1.2 | 2 |
| 4×95 | 2 | 1.1 | 1.2 | 2.1 |
| 4×120 | 2 | 1.2 | 1.2 | 2.3 |
1kv XLPE insulated LSZH Sheathed Underground Cable Unarmored 4x10mm2 BS8573 show
About us
We, Zhenglan Cable Technology Co., Ltd, are manufacturer of cable and wire with over 20years' experience.
Our factory workshop taking up about 60000SQM is located in Wuzhi County, Jiaozuo city, Henan province, in the middle of China.
Our main products are
- overhead transmission line use bare conductor(ACSR, AAC, AAAC etc)
- 1-35kv overhead transmission line use insulated conductor
- power distribution use 0.6/1kv, 1.8/3kv PVC/XLPE/PE insulated LV(low voltage) power cable armored or unarmored
- power distribution use 3.6/6kv, 6/10kv,8.7/10kv, 8.7/15kv, 12/20kv, 21/35kv, 26/35kv XLPE insulated MV(medium voltage) power cable armored or unarmored;
- 300/300V, 300/500V, 450/750V cotrol cable, house wire
FAQ
1. Is your company a factory or a trade company?
Factory, more than 20 years in China
2. How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
3. What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.
4. What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
5. What is your MOQ?
Generally it is 500m.
We are China 1kv XLPE Insulated LSZH Sheathed Underground Cable Unarmored 4x10mm2 BS8573 manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
