1kv Quadruplex Service Drop Cable Aluminum Overhead Insulated Cable Abc Icea S-76-474

 China 1kv Quadruplex Service Drop Cable Aluminum Overhead Insulated Cable Abc Icea S-76-474 supplier

1kv Quadruplex Service Drop Cable Aluminum Overhead Insulated Cable Abc Icea S-76-474 image

Get a Quote Email to us

Brand Name :
Zhenglan Cable

Model Number :
1kv QUADRUPLEX SERVICE DROP CABLE Overhead Insulated Cable ABC Cable ICEA S-76-474

Certification :
ISO 9001:2015,ISO 14001:2005; CCC

Place of Origin :
Henan, China

MOQ :
1000m

Price :
Negotiable

Payment Terms :
L/C, T/T

Supply Ability :
15,000 KM/Year

Delivery Time :
10 days

Packaging Details :
Wooden drum, iron wooden drum or as required

Insulation Material :
XLPE

Cable conductor :
Aluminum

Standard :
ICEA S-76-474

structure :
AAC/XLPE

Voltage :
0.6/1KV

Port :
Qingdao or Shanghai

1kv QUADRUPLEX SERVICE DROP CABLE Overhead Insulated Cable ABC Cable ICEA S-76-474

Application:

This quadruplexed cable is suited for use as drop cable from a pole mounted transformer to the service entrance of a structure, or as secondary distribution between poles. The cable should be limited to 600V phase to phase and not exceed 90˚C.

Structure

Conductor material: aluminum;

Insulation material: XLPE;

Temperature range
Minimum installation temperature: 0°C
Maximum operating temperature: +80°C
Minimum operating temperature: -25 °C
Minimum bending radius of circumscribed diameter
Installed cables: 6D ≤ 50 mm2
9D >50 mm2
4D Single Core
During installation: 9D ≥ 50 mm2
14D < 50 mm2
6D Single Core

1kv QUADRUPLEX SERVICE DROP CABLE Overhead Insulated Cable ABC Cable ICEA S-76-474 Parameters:

Code Name Phase Conductor Bare Neutral Messenger Weight/kft. (lbs.) Allowable Ampacities*
Size Stranding Covering
Thickness
(mill)
Size Stranding Rated Strength
(lbs.)
Poly XLP Poly XLP
QUADRUPLEX SERVICE DROP – AAC NEUTRAL MESSENGER
Clydesdale 4 1 45 4 7 881 198 199 80 100
Pinto 4 7 45 4 7 881 211 218 80 100
Mustang 2 7 45 2 7 1350 312 318 105 135
Criollo 1/0 19 60 1/0 7 1990 505 520 140 180
Percheron 2/0 19 60 2/0 7 2510 622 639 160 205
Hanovarian 3/0 19 60 3/0 19 3310 750 761 185 235
Oldenburg 4/0 19 60 4/0 19 4020 928 941 210 275
Lippizaner 336.4 19 80 336.4 19 6146 1519 1519 370 280

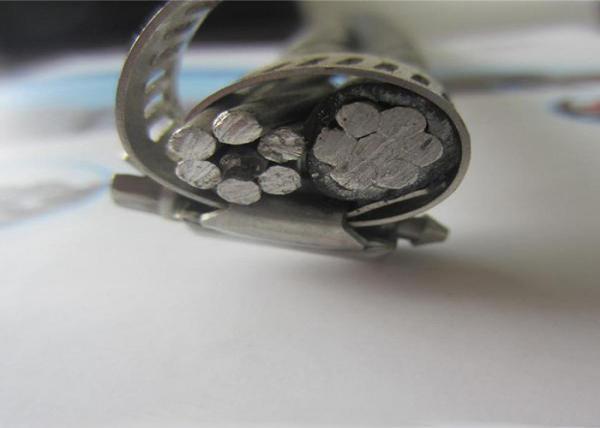

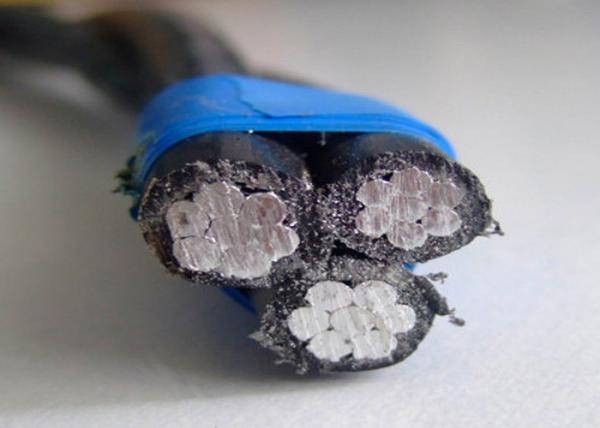

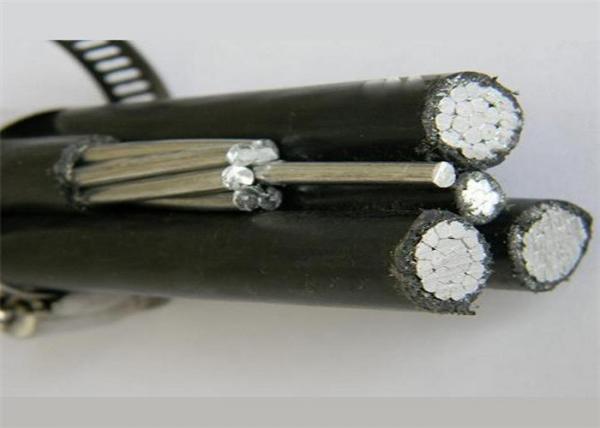

1kv QUADRUPLEX SERVICE DROP CABLE Overhead Insulated Cable ABC Cable ICEA S-76-474 Products images:

Why Choose Zhenglan Cable:

  • OEM/ODM services provided
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007
  • Advanced test equipment and procedures, 100% inspection before factory
  • Enough stocks and the higest efficient shipping time guarranteed
  • Professional pre-sales and after-sales services provided
  • Strict quality control system, excellent quality with reasonable price.

FAQ
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 5000m.

We are China 1kv Quadruplex Service Drop Cable Aluminum Overhead Insulated Cable Abc Icea S-76-474 manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
