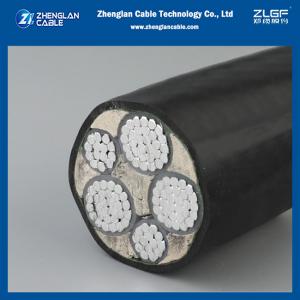

1kv Multicore Xlpe Power Cable Insulated Aluminum Core Underground Unarmored image

Get a Quote Email to us

1kv multicore xlpe insulated cable aluminum core (3+2) power cable underground cable unarmored

Applications:

1kv multicore xlpe insulated cable aluminum core (3+2) power cable underground cable unarmored is for fixed installation use in transmission and distribution lines.

1kv multicore xlpe insulated cable aluminum core (3+2) power cable underground cable unarmored are referred to multicore power cable IEC60502-1, suitable for installation indoor/outdoor, enclosed in conduit or in underground duct where not subject to mechanical force or damage. Additional protection is available for UV, low smoke zero halogen (LS0H) and Flame Retardant (FR) properties where required.

Operating characteristics

1. Cable laying temperature: ≥0°C

2. Cable conductor long-term allowable working temperature:≤90°C

3. Higest working temperature of cable in case of short circuit (the longest lasting time is not over 5s): 250°C

4. Minimum allowable bending radius: Single core cable: 20D mm; multi-core cable: 15D mm Note: D is actual outer diameter of the cable

Construction:
Conductors:Copper or Aluminium conductor, round standed or Shaped, Class 2 to IEC 60228, BS EN 60228. For smaller sizes, a solid round conductor, Class 1 as per IEC 60228, BS EN 60228 can also be supplied upon request.

Noted: Insulation color as per standards or customer requirement.

1kv multicore xlpe insulated cable aluminum core (3+2) power cable underground cable unarmored Standard:

Basic design to IEC 60502-1, IEC 60228,BS EN 60228
China: GB/T 12706.2-2008
Other standards such as BS7870,DIN and ICEA upon request

Certificates:
CE, ROHS,KEMA and more others at request

1kv multicore xlpe insulated cable aluminum core (3+2) power cable underground cable unarmored Insulation:

XLPE material and thickness shall be as per IEC 60502 or BS 5467 rated for 90°C continuous operation.

Colour Code:

Colour Code (1) :
1 Core Red or Black
2 Cores Red, Black
3 Cores Red, Yellow, Blue
4 Cores Red, Yellow, Blue, Black
5 Cores Red, Yellow, Blue, Black, Green

Outer Sheath material and feature: Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467.Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSF, CPE are available on request.

Cable Sheaths's Fire Performance: Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, can also supply cables with Low Smoke Halogen Free (LSHF) material according to IEC 60502-1, BS 7211, BS 6724 or other equivalent standards.

1kv multicore xlpe insulated cable aluminum core (3+2) power cable underground cable unarmored Parameters:

Conductor dimensions (mm2) Insulation thickness (mm) Nonmetallic sheath, unarmored cable
Sheath thickness Outer diameter (approximate) Cable weight (Kg/km)
mm mm Copper core Aluminum core
Phase line Null line Phase line Null line 3+2C 3+2C 3+2C 3+2C
2.5 1.5 0.7 0.7 1.8 12.6 229
4 2.5 0.7 0.7 1.8 13.7 302 196
6 4 0.7 0.7 1.8 15.1 402 240
10 6 0.7 0.7 1.8 17.5 584 321
16 10 0.7 0.7 1.8 20.5 865 437
25 16 0.9 0.7 1.8 23.9 1278 605
35 16 0.9 0.7 1.8 25.9 1558 709
50 25 1 0.9 1.9 29.9 2243 984
70 35 1.1 0.9 2 33.2 3038 1273
95 50 1.1 1 2.2 37.8 4105 1679
120 70 1.2 1.1 2.3 41.6 5265 2112
150 70 1.4 1.1 2.4 45.9 6200 2480
185 95 1.6 1.1 2.6 51.4 7792 3095
240 120 1.7 1.2 2.8 58.6 9960 3907
300 150 1.8 1.4 3 65.4 12394 4823
400 185 2 1.6 3.3 74.2 16132 6225

1kv multicore xlpe insulated cable aluminum core (3+2) power cable underground cable unarmored Productos show:
