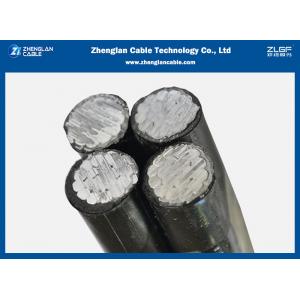

1kv Aerial Bundled Cable Cond. Al 3×70+1x50mm2 Quadruplex Service Drop Cable image
1kv aerial bundled cable Cond. Al 3×70+1x50mm2, Aislados quadruplex service drop cable IS:14255-1995
Overhead line is a line which is erected by tower to transmit electric energy at a certain height. For the high-voltage transmission and distribution network, the ground insulation of the overhead line is generally based on air, and the distribution line (except 380V under 10kV) generally uses bare conductor. However, due to the complex urban distribution environment, short-circuit grounding and lightning strike often occur, resulting in the decrease of power supply reliability. So far, the overhead line under 10kV generally uses insulated conductor (that is, the outer layer of conductor is wrapped with insulation layer), which is the so-called insulated overhead cable.
Conductor:
1. Aluminum Wire, 1350-H19 for Electrical Purposes.
2. Aluminum Conductors, Concentric-Lay-Stranded.
3. Aluminum Conductor, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
4. Concentric-Lay-Stranded 6201-T81 Conductors.
5. Compressed Round Stranded Aluminum Conductors Using Single Input Wire.
Insulation: PVC, XLPE, PE
Phase Cable identificaation: number 111, 222, 333
Standards:
GB/T 12527-2008, IEC60502,
Rated voltage: 0.6/1kV
Relative manufacturing standards: IEC61089, ASTM B231, ASTM B232, BS215, DIN48201, DIN48204.
We can also manufacture ABC cable according to customer's special requirements.
Application:
Aerial Bundle Cables have an operating temperature range of -40oC to +80oC and can be installed in temperatures as low as -20oC. These ABC are unscreened and without an additional outer sheath.
1kv aerial bundled cable Cond. Al 3×70+1x50mm2, Aislados quadruplex service drop cable IS:14255-1995 parameters
No. | Description and Type of Cable | Number of Wires | Thickness of XLPE Insulation | Approx overall Diameter | Approx Weight of Cable | Breaking Load of Messenger | Maximum D.C Resistance(Ohms/Km) | AC Current Rating (Amps) | |||
Phase | Messenger | Phase | Messenger | ||||||||
mm | mm | mm | Kg/KM | KN (min) | Phase | Messenger | In air at 40°C | ||||
With insulated messenger conductor without lighting conductor | |||||||||||
1 | 1 C x 16 mm2 + 25 mm2 (insulated) | 7 | 7 | 1.2 | 1.2 | 20 | 165 | 7 | 1.91 | 1.38 | 72 |
2 | 3 C x 16 mm2 + 25 mm2 (insulated) | 7 | 7 | 1.2 | 1.2 | 22 | 301 | 7 | 1.91 | 1.38 | 64 |
3 | 1 Cx25 mm2 + 25mm2(insulated) | 7 | 7 | 1.2 | 1.2 | 22.4 | 195 | 7 | 1.2 | 1.38 | 99 |
4 | 3 C x 25 mm2 + 25 mm2 (insulated) | 7 | 7 | 1.2 | 1.2 | 25 | 390 | 7 | 1.2 | 1.38 | 84 |
5 | 1 Cx35 mm2 + 25mm2(insulated) | 7 | 7 | 1.2 | 1.2 | 27.3 | 227 | 7 | 0.868 | 1.38 | 120 |
6 | 3 C x 35 mm2 + 25 mm2 (insulated) | 7 | 7 | 1.2 | 1.2 | 27.4 | 486 | 7 | 0.868 | 1.38 | 105 |
7 | 1 Cx35 mm2 + 35mm2(insulated) | 7 | 7 | 1.2 | 1.2 | 28 | 259 | 10.1 | 0.868 | 0.986 | 120 |
8 | 3 C x 35 mm2 + 35 mm2 (insulated) | 7 | 7 | 1.2 | 1.2 | 28.4 | 518 | 10.1 | 0.868 | 0.986 | 105 |
9 | 1 C x 50 mm2 + 35 mm2 (insulated) | 7 | 7 | 1.5 | 1.2 | 29 | 317 | 10.1 | 0.641 | 0.986 | 150 |
10 | 3 C x 50 mm2 + 35 mm2 (insulated) | 7 | 7 | 1.5 | 1.2 | 32.3 | 692 | 10.1 | 0.641 | 0.986 | 130 |
11 | 3Cx70 mm2 + 50 mm2 (insulated) | 7 | 7 | 1.5 | 1.5 | 37.5 | 939 | 14 | 0.443 | 0.689 | 155 |
12 | 3 C x 70 mm2 + 70 mm2 (insulated) | 7 | 7 | 1.5 | 1.5 | 39 | 1002 | 19.7 | 0.443 | 0.492 | 155 |
13 | 3 C x 95 mm2 + 70 mm2 (insulated) | 19 | 7 | 1.5 | 1.5 | 42.7 | 1237 | 19.7 | 0.32 | 0.492 | 190 |
14 | 3 C x 120 mmz + 70 mm2 (insulated) | 19 | 7 | 1.6 | 1.5 | 46 | 1482 | 19.7 | 0.253 | 0.492 | 220 |
15 | 3 C x 150 mm2 + 70 mm2 (insulated) | 19 | 7 | 1.8 | 1.5 | 50 | 1791 | 19.7 | 0.206 | 0.492 | 250 |
1kv aerial bundled cable Cond. Al 3×70+1x50mm2, Aislados quadruplex service drop cable IS:14255-1995 images
1kv Cond. Al 3x16mm2+1x16mm2 xlpe insulated overhead service drop cable aerial bundle cable IEC60502-1 packages
