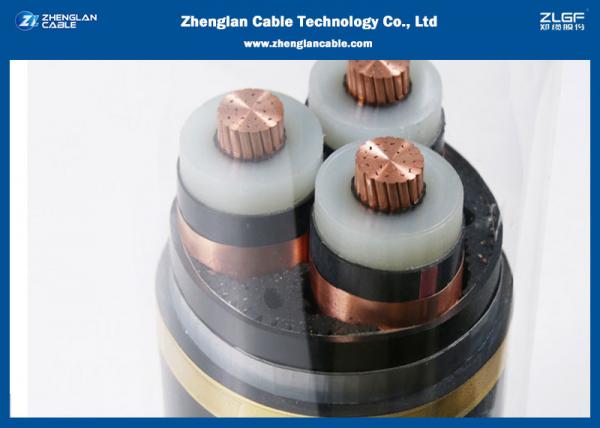

18/30KV Three Core Armoured Power Cable MV IEC 60502/60228 Standard（CU/XLPE/LSZH/DSTA）

18/30KV Medium Voltage Three Cores Power Cable (Armoured) , Insulated Cable according to IEC 60502/60228

Three Cores Power Cable APPLICATIONS:

The three core cables are designed for distribution of electrical power with nominal voltage Uo/U ranging from 1.8/3KV to 26/35KV and frequency 50Hz. They are suitable for installation mostly in power supply stations, indoors and in cable ducts, outdoors, underground and in water as well as for installation on cable trays for industries, switchboards and power stations.

Three Cores Power Cable STANDARD:

IEC 60502 Part 2(3.6/6KV to 18/30KV)

18/30KV Medium Voltage Three Cores Power Cable (Armoured) , Insulated Cable according to IEC 60502/60228 CONSTRUCTION:

1. Conductor: Plain annealed copper or aluminium complying with IEC 60228 class 1 or 2.

2. Conductor Screen: The conductor screen consists of an extruded layer of non metallic, semi-conducting compound applied on top of a semi-conducting tape.

3. Insulation: cross-linked polyethylene compound (XLPE)

Noted:Three Core Cables to BS 6622/BS 7835/IEC 60502/VDE 0276

Insulation Screen

This will be a layer of semi-conducting crosslinkable compound which will be applied by triple extrusion process over the insulation.

Metallic Screen

It will consist of a layer of copper tape applied helically with overlap over insulation screen. Other combinations of metallic screens as per customer ’s requirement can also be provided on request.

Laying-Up

In case of three core cables, the three cores are laid up with non-hygroscopic fillers like polypropylene(PP) fillers at interstices and a binder tape is applied with an overlap. These binder tapes can be of PVC or foamed Polyethylene.

Inner Sheath (Bedding) for Armoured Cables

Extruded layer of PVC or PE is applied over the laid up cores for armoured cables. PVC is normally of grade ST2 and PE of grade ST7 as per IEC 60502 Part 2.

Armouring

In case of armoured cables, the armour is applied helically over inner sheath. For single core cables, it is of aluminium wires and for multicore cables, the armour can be of one among the following options:

a) Galvanized steel wire.

b) Galvanized steel tape.

Over Sheath

An extruded layer is applied over the armour in case of armoured cables and over laid up cores in case of unarmoured cables. Outer sheath material can be either PVC, PE, HDPE or MDPE.

Fire Performance on Cable Sheaths

Cables can also be supplied with special flame retardant PVC over sheaths to comply with the IEC 60332 standard. We can also supply cables with Low Smoke Halogen Free (LSZH) sheaths according to BS 7211 and BS 6724 standards or other equivalent international standards.

Cable Parameters for 18/30KV Medium Voltage Three Cores Power Cable (Amoured)

18/30KV Three Core Armoured Power Cable MV IEC 60502/60228 Standard(CU/XLPE/LSZH/DSTA)​ Properties

Special features which we can offer for MV cables:

l Watertight construction (both radial and longitudinal).

l Lead sheath available for options.

l Resistant to heavy vibration.

l Available in long delivery lengths to reduce number of joints.

l Copper or aluminum conductor up to 630mm².

l Metallic sheath and radial moisture barrier made of copper wire or tape.

l Different options for outer PE jackets (LDPE, MDPE & HDPE).

l Different options for LSF, LSZH & FRPVC, being anti-termite or UV resistant as per BS 7835, IEC 60332 etc.

l Strippable insulation screen.

l Metallic screen made of multiple layers of copper tapes or a combination of copper wires and tapes to increase the earth fault current carrying capacity.

l Increased armour conductivity by insertion of hard drawn copper wires in armour.
