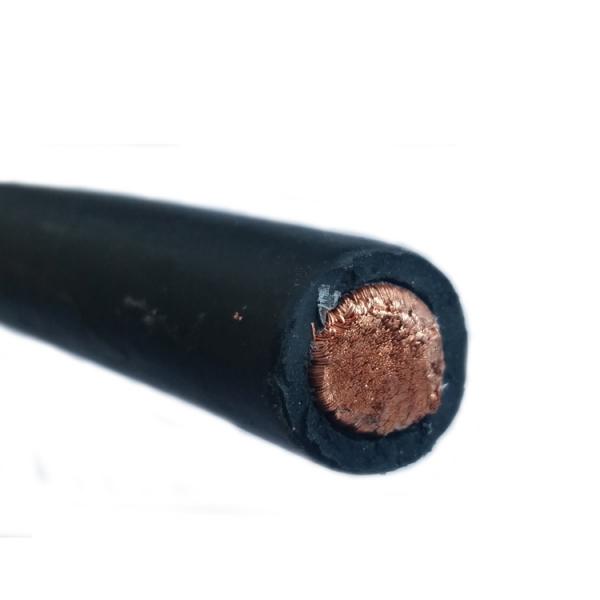

16mm Flexible Welding Cable
16mm Flexible Welding Cable image
Place of Origin :
Henan, China
Brand Name :
HOLD-ONE
Model Number :
flex welding cable
Supply Ability :
100 Kilometer/Kilometers per Month
Packaging Details :
The flex welding cable package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirement.
MOQ :
500.0 Meter/Meters
Price :
Get within 12 hours
Insulation Material :
Rubber
Type :
Rubber Cable
Application :
Construction
Conductor Material :
Copper/Aluminum
Jacket :
Rubber
Hot Sale Size :
25mm,35mm,50mm,70mm,95mm,150mm
Other Core :
Single Core
Certificate :
ISO9001/CCC
MOQ :
1000m
Standard :
IECA, BS, DIN,
Sample :
Contact to get free sample
Warranty :
100%quanlified
Color :
Black, Yellow, As you request
16mm Flexible Welding Cable
Flex welding cable are suitable for the connection between welding equipment and welding tools used in manual and automatic application. As well as welding robots on assembly lines used by the shipbuilding and automobile industries. Welding flex cable is strong and durable. 600 volt welding cable is designed to carry high current under harsh operating conditions and to withstand the high temperature implied by their purpose. If you just need to wholesale welding cable, pls contact us without hesitate.
flexible wire pure 10mm 16mm 50mm welding cable for sales Construction:
1. Conductor : Flexible bare annealed copper wire or tinned copper wire
2. Insulation: PVC or Rubber Material or EPR
3. Sheath: Natural rubber, Horoprene rubber or other syntheitic rubber,PVC or or CSP.
4. No.Cross-section: 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120m2, 150mm2, 185mm2 , 240mm2.
5. AWG: 6, 4, 2, 1, 1/0, 2/0, 3/0, 4/0, 250, 350, 500
6. Color: Choice of Black, Orange, Red or Yellow Blue jacket, single & double insulated.
Welding Cable to ASTM Standard:
| AWG | Nominal stranding | Nominal overall diameter | Approx. net weight (LBS/1000ft) | Max. conductor resistance at 20℃(Ω/km) | ||
|---|---|---|---|---|---|---|
| AWG | mm | inch | mm | |||
| 6 | 259/30 | 259/0.254 | 0.43 | 10.92 | 152 | 1.33 |
| 4 | 418/30 | 418/0.254 | 0.475 | 12.07 | 215 | 0.84 |
| 2 | 646/30 | 646/0.254 | 0.54 | 13.72 | 296 | 0.53 |
| 1 | 836/30 | 836/0.254 | 0.58 | 14.73 | 360 | 0.42 |
| 1/0 | 1032/30 | 1032/0.254 | 0.615 | 15.62 | 424 | 0.33 |
| 2/0 | 1290/30 | 1290/0.254 | 0.655 | 16.64 | 513 | 0.26 |
| 3/0 | 1672/30 | 1672/0.254 | 0.72 | 18.29 | 644 | 0.21 |
| 4/0 | 2066/30 | 2066/0.254 | 0.78 | 19.81 | 824 | 0.17 |
1. The time you can get the quotation after the sending the inquiry
In the working time, our sales manager will send quotation to your email box within 1 or 2 hours. On the contrast, we will send you email within 12 hours. Therefore, email is needed to let us know, then we can contact with you.
2. For Sample
We can provide you the sample for free, if you want to check the cable, you can ask the sales manager.
3.Payment
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight
4. what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirement.
……
If you have any other question, you can send us inquiry, we will reply to you as soon as possible
We are China 16mm Flexible Welding Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
