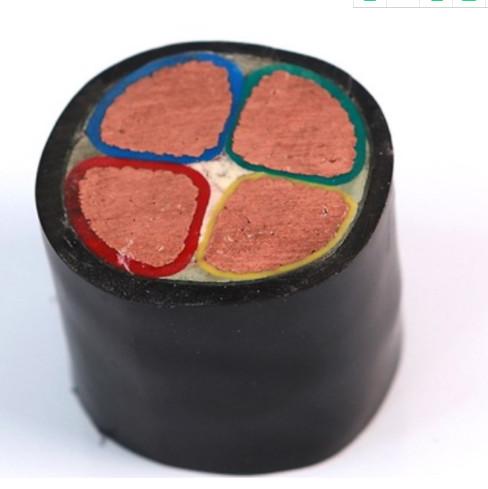

16mm 4 Cores Insulated Power Cable 1kV Copper Core Xlpe Insulated Pvc Sheath

 China 16mm 4 Cores Insulated Power Cable 1kV Copper Core Xlpe Insulated Pvc Sheath supplier

16mm 4 Cores Insulated Power Cable 1kV Copper Core Xlpe Insulated Pvc Sheath image

Get a Quote Email to us

Brand Name :
Huanghe

Model Number :
XLPE Insulated Copper Cable

Certification :
ISO OHSAS CCC IEC

Place of Origin :
China

MOQ :
200

Payment Terms :
TT/Western Union /LC

Supply Ability :
50000meters per week

Delivery Time :
5-8days

Packaging Details :
wooden drum

Material :
XLPE PVC PE

Size :
1cores 2 cores 3 cores 4 cores 5 cores

color :
Black and customized

Original :
china henan

insulation :
PVC

Sheath :
PVC

16mm 4 Cores Insulated Power Cable 1kV Copper Core Xlpe Insulated Pvc Sheath

Cross-linked polyethylene insulated power cable not only has excellent electric, mechanical properties,but also has powerful resistance against chemical corrasion, heat aging and environmental stress. lts struc-ture is simple. The long term operating temperature is 90"C.lt is convenient to use and can be laid with norestrictionof different level.

Our enterprise can produce both flame retardant and non-flame retardant series of XLPE power cable,pvc insulated power cable.
Our XL PE Power cable covers all kinds of low-smoke low-halogen, low-smoke halogen free and threeclasses ofA, B, C.
We can design and manufacture special XLPE cable according to the other standards required by thecustomers, such as Heavy section cut apart conductors, water-resistance, defend termites, defend mouse ,and SO on.
Service Conditions and Parameters of 20kv power cable

Max.Conductor Operating Temperature:90℃
Short Circuit Temperature: 250"C Not more than 5 secondsx
Environmental temperature of operating: In air: 40℃ underground: 25℃
Depth of laying in direct: 80cm
Thermal Resistance of soil: 100℃. cm/W

16mm 4 cores 1kV copper core xlpe insulated pvc sheath power cable

Type Designation Applications
YJV YJLV Copper/Aluminium conductor, XLPE insulated, PVC sheathed power cable For laying indoors, in tunnel or cable trench, unable to bear external mechanical forces. Single core cable is not permissible to lay in magnetic duct
YJY YJLY Copper/Aluminium conductor, XLPE insulated, PE sheathed power cable
YJV22 YJLV22 Copper/Aluminium conductor, XLPE insulated, steel tape armoured, PVC sheathed power cable For laying indoors, in tunnel, in cable trench or direct in ground, able to bear external mechanical forces, but unable to bear large pulling force
YJV23 YJLV23 Copper/Aluminium conductor, XLPE insulated, steel tape armoured, PE sheathed power cable
YJV32 YJLV32 Copper/Aluminium conductor, XLPE insulated, steel wire armoured, PVC sheathed power cable For laying indoors, in tunnel, in cable trench or direct in ground, able to bear external mechanical forces, able to bear large pulling force
YJV33 YJLV33 Copper/Aluminium conductor, XLPE insulated, steel wire armoured, PE sheathed power cable
Note: The armoured single core cables is only used for D.C. system. As for A.C. system, non-magnetic armour material should be applied

16mm 4 cores 1kV copper core xlpe insulated pvc sheath power cable

We are China 16mm 4 Cores Insulated Power Cable 1kV Copper Core Xlpe Insulated Pvc Sheath manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
