15kV Concentric Cables Full Neutral Conductor CU/XLPE/CU/PVC 2x400mm2 2x300mm2 2x185mm2

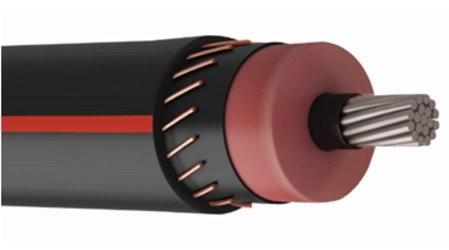

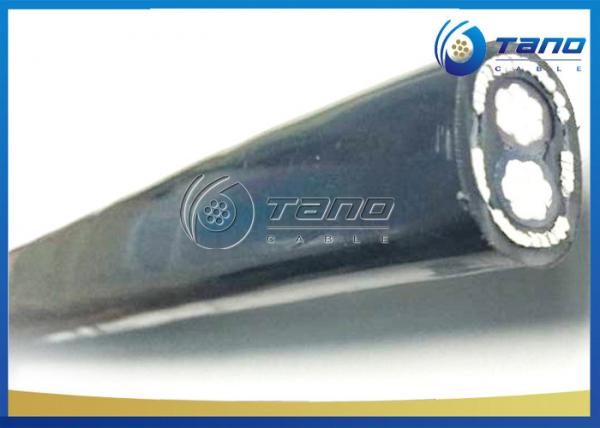

15kV Concentric Cables Full Neutral Conductor CU/XLPE/CU/PVC 2x400mm2 2x300mm2 2x185mm2 image
Brand Name :
Yifang
Model Number :
Concentric Cable
Certification :
CE, ISO, KEMA
Place of Origin :
China
MOQ :
1000 meter
Price :
USD 1~10 per meter
Packaging Details :
Treated Wooden Drum
Standard :
IEC 60502
Working Temperature :
90°C
Sheath Color :
Black
Structure :
CU/XLPE/CU/PVC
Aplication :
Power translated or High voltage grounded
Voltage :
15kV or higher voltage
15kV Concentric Cables Full Neutral Conductor CU/XLPE/CU/PVC 2x400mm2 2x300mm2 2x185mm2
Application
For use in high voltage transforamtion or high voltage system grounded.
Global data
Brand YIFANG
Standard IEC 60502
Design features
Conductor Compacted round concentric Copper stranded,IEC 60228,2004
Conductor Screen Semi-conductive XLPE compound
Insulation XLPE
Insulation Screen: Semi-conductive XLPE compound
Neutral Conductor: Full size copper wire
Jacket PVC with carbon black content from 2%~10%
Marking Printed as per customer requirements
Thermal parameters
Max. permissible temperature at conductor 90 °C
Max. short circuit temperature of the conductor 250 °C
Specification
| ITEM | DESCRIPTION | UNIT | DATA |
| 1 | Standard to which the cable conform | — | IEC 60502-2 |
| 2 | Conductor | ||
| Conductor Material | — | Stranded Copper Wire, compacted round |
|
| Core number of conductor | — | 1 | |
| Conductor Cross-sectional Area | mm2 | 400 | |
| Min. Stranding Number | No. | 53 | |
| Approx. Conductor Diameter | mm | 23.6 | |
| Max. D.C. Resistance of conductor at 20℃ | Ω/km | 0.047 | |
| 3 | Conductor Screen | ||
| Material | Semi-conducting compound | ||
| Nominal thickness | mm | 0.6 | |
| 4 | Insulation | ||
| Material | — | XLPE | |
| Nominal thickness | mm | 4.5 | |
| 5 | Insulation screen | ||
| Material | — | Semi-conducting compound | |
| Nominal thickness | mm | 0.7 | |
| 6 | Concentric layer | ||
| Material | — | Copper wire | |
| Dia. of single wire | mm | 4.3 | |
| 7 | Wrapping tape | — | Non-woven clothing tape |
| 8 | Outer sheath | ||
| Material | — | PVC | |
| Nominal thickness | mm | 2.4 | |
| 9 | Complete cable | ||
| Overall diameter (approx.) | mm | 50.2 | |
| Weight per km (approx.) | Kg/km | 8300 |
Drawing
We are China 15kV Concentric Cables Full Neutral Conductor CU/XLPE/CU/PVC 2x400mm2 2x300mm2 2x185mm2 manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
