15kv 133% XLPE Insulated Copper Tape Screened PVC Sheathed Power Cable 1x500MCM

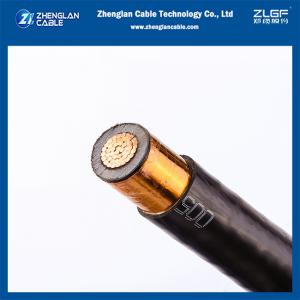

15kv 133% XLPE Insulated Copper Tape Screened PVC Sheathed Power Cable 1x500MCM image

Get a Quote Email to us

Brand Name :Zhenglan cable

Model Number :15kv 133% XLPE insulated Copper tape screened PVC sheathed power cable 1x240mm2

Certification :CE, ISO

Place of Origin :China

MOQ :1000meters

Price :0.1-100USD/m

Payment Terms :Western Union, L/C, T/T

Packaging Details :wood case,

Structure :Cu/SC/XLPE/SC/CTS/PVC

Conductor :Copper

Screen :Copper tape screen

Insulation :133% XLPE

Outer sheath :PVC

Core number :1

15kv 133% XLPE insulated Copper tape screened PVC sheathed power cable 1x500MCM

Single core cables are made of stranded copper conductor, triple extruding insulating system consisting of thermosetting semi-conducting conductor shield, XLPE insulation and thermosetting semi conducting insulation shield. The metallic shields is copper tape helically applied with overlap. And the outer sheath is PVC, LSZH or PE jacket.

CONDUCTOR

Class B compressed copper or aluminum. Cable element that allows for the flow of electrial current.

INSULATION SHIELD

The semiconducting thermoset extruded layer transfer insulation charging current to the metallic shield. It provides symmetrical distribution of voltage stress within insulation.

Its function ia also to restrict the electric field within the insulation

CONDUCTOR SHIELD

The semiconducting thermoset extruded layer equalizes electrical charge across the conductor surface. It also

minimizes electrical stresses should the conductor surface become uneven due to voids between conductor and

insulation. The semiconducting layer eliminates potential for corona discharge by reduction of air voids between

the conductor and the insulation. This greatly improves insulation life expectancy.

METALLIC SHIELD

The bare copper tape reduces the risk of shock to personnel by safely carrying and transferring leaked current in case

of a cable fault. The metallic shield provides additional mechanical damage protection for the cable core.

INSULATION

Thermoset extruded EPR layer whose main function is to contain electricity and resist leakage of electrical charges.

Insulation also serves as a protective layer

JACKET

External layer of extruded thermoplastic PVC provides protection for all internal cable elements from any

mechanical, chemical or thermal abuse it may experience during cable installation and operation.

Standards

ICEA S-93-639 (NEMA WC74), Standard for shielded power cable 5KV-46KV

IEC60502-2

Features

Maximum working temperature: 90 ° C.

The maximum working temperature in emergency situations is 130 ° C.

Maximum operating temperature during short circuit: 250 ° C

15kv 133% XLPE insulated Copper tape screened PVC sheathed power cable 1x500MCM technical data

Conductor	Insulation Thickness (mm/ mils)	Sheath Thickness (mm/ mils)	Overall Diameter (mm / in.)		Cable Weight (kg/km / lbs/kft)		Ampacity (Amps)
							90°C In Duct
			(D)		CU		CU	AL
15kV 133% to ICEA Standard
500 MCM	5.59/220	2.03/80	40.4	1.59	3290	2211	500	400
750 MCM	5.59/220	2.03/80	47.0	1.85	4759	3199	610	490
1000 MCM	5.59/220	2.79/110	50.8	2.00	6081	4087	690	565

15kv 133% XLPE insulated Copper tape screened PVC sheathed power cable 1x500MCM images

15kv 133% XLPE insulated Copper tape screened PVC sheathed power cable 1x500MCM packing image

Why Choose Zhenglan Cable:

OEM/ODM services provided;
Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
Registered capital of $30 million and factory covers an area of 60,000㎡;
Advanced test equipment and procedures, 100% inspection before factory;
Enough stocks and the higest efficient shipping time guarranteed;
Professional pre-sales and after-sales services provided

We are China 15kv 133% XLPE Insulated Copper Tape Screened PVC Sheathed Power Cable 1x500MCM manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
