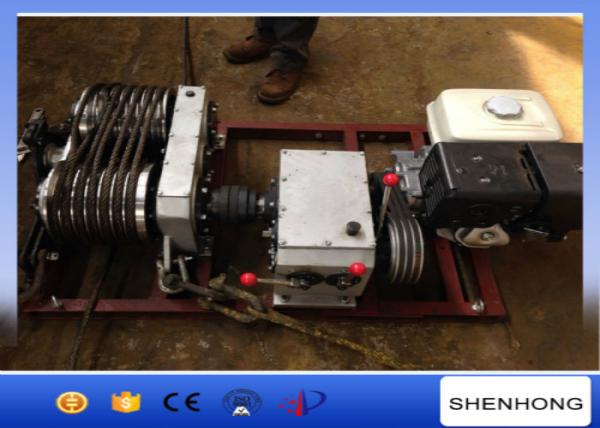

13HP Double Drum Electric Cable Pulling Winch Dual – Bull Wheel Powered Winch

13HP Double Drum Electric Cable Pulling Winch Dual – Bull Wheel Powered Winch image

Get a Quote Email to us

Brand Name :
SHENGHONG

Model Number :
JJM-5SQ

Certification :
ISO

Place of Origin :
MADE IN CHINA

MOQ :
1set

Price :
USD2000-3000

Payment Terms :
L/C, T/T, Western Union

Delivery Time :
15 days after deposite

Packaging Details :
Plywood case

Selling Point :
Double Capstan Winch

Engine :
Honda GX390

Power :
13HP

Weight :
300kg

Capstan :
Double Capstan

Name :
5 Ton Double Drum Gas Engine Powered Winch

13HP Double Drum Electric Cable Pulling Winch Dual – Bull Wheel Powered Winch

Quick details

1. Transimission line stringing tools

2. Dual-bull wheel powered winch

3. Groove number 7

4. Pull force 50kn

5. weight: 300kg

Characteristics
1. This machine uses diesel or gasoline engine as power, especially for the
wild mountain region of the traction power supply without lifting. In the case of
power supply, it can also use the motor as the driving force.
2. The machine structure is solid, heavy, traction, stable performance, high
safety factor. The machine detachable transport, easy to complex areas of
human handling. Maintenance and overhaul convenient, simple operation.
3. This machine is four lifting gear, according to weight lifting, choose a
different traction speed, thereby improving efficiency.
4.This machine has locking brake system.which can effectively prevent double
traction wheels reversed, to ensure safety.

Data sheet

Model	JJM-5SQ/JJM-5SC
Engine	HODNA GX390/186F Diesel Engine
Power	13HP,3600rpm/6.3KW,3600rpm
Suitable Wire Rope(mm)	15
Bottom diameter of Groove(mm)	240
No. Of Groove	6
Gear	Forward				Reverse
Gear	Slow I	Slow II	Fast I	Fast II	Slow	Fast
Pull Force(KN)	50	30	13	10	No lifting	No lifting
Speed(m/min)	6	10	23	30	5	17
Weight(KG)	280/300
Dimension(mm)	1330×800×600

Suzhou Shenhong Import&Export Company is trading company and manufacturer for Power Transmission Line Stringing Equipments & Construction Tools in China. Suzhou Shenhong is an experienced manufacture and trader of Power & Telecom Line Stringing Equipments and tools, and have engaged in this line for more than 10 years. The products comprise of hydraulic pullers, hydraulic tensioners, Motorised winches, stringing blocks,anti-twisting braided steel wire ropes, tackle blocks, come along clamps, cable pulling grips, swivels, connectors, hoists, gin poles, conductor cutters, pump-presses, insulator lifter, cable rollers etc.
