138KV HDG 33M Electric Utility Pole With Baseplate And M42 Anchor Bolt 100FT 105FT 0-5 Degree
138KV HDG 33M Electric Utility Pole With Baseplate And M42 Anchor Bolt 100FT 105FT 0-5 Degree image
Brand Name :
FUTAO
Model Number :
EP031
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
2 Pieces
Price :
$300 – $3,999.00/ Piece
Payment Terms :
L/C, T/T
Supply Ability :
1200 pieces every month
Delivery Time :
30-60 workdays
Packaging Details :
40HC or OT, wrap by mat or straw mat
Material :
gr65, q500
Height :
32,33,35meter
Thickness :
7mm -16mm
Powder Coated :
White, Blue, Sliver, Grey or more
Surface Treatment :
Hot Dip Galvanized
Wind Resistance :
270 km/h
Shape :
Round or Polygonal
138KV HDG 33M,Single Circuit Pole with baseplate and M42 Anchor bolt,100ft, 105ft 0-5degree
Product Description
The products above are steel utility poles made specifically for power distribution between 10KV to 550KV.
- Products are designed and manufactured according to ANSI/TIA-222-G structural standards
- Only our company can comply to these global manufacturing standards which gives us an edge over our competitors
- Products are hot dip galvanized according to ISO 1461/ASTM A123 standards
- Pole shaft material : ASTM GR65,GR50,Q460 A572,S355,Q345/Q235,etc
- Material code : GB/T1591-2008,GB/T700-2006
- We possess the ISO 9001:2015 certification and are committed to giving our customers the best products and service
- We provide additional assistance if required including supervision and supplementary components
- We accommodate various designs according to our customers’ specifications
UNITS OP MEASUREMENT Metric or system international (S.I.) units of measurement shall be employed in all correspondence, Technical Schedules and drawings. Angular measurement shall be in degrees, with 90° comprising one right angle. 1.7 LANGUAGE English Language shall be used in all documents contained in the Tender and in all correspondence between the Contractor and DES. Whenever any item is required under the terms of the Contract to be written, marked, printed or engraved, the English language shall be used except where otherwise stated in the specification. 1.8 CORRESPONDENCE All correspondence on matters arising out of the Contract shall be addressed by the Contractor to:- The Director, Department of Electrical Services, Old Airport Road, Berakas, Bandar Seri Begawan BB3510, Negera Brunei Darussalam. 1.9 SAFETY OF PERSONNEL The Contractor shall provide a full time Safety Officer having the necessary competency and experience to the approval of the Engineer at site. Maximum safety precautions consistent with good erection practice in all site works must be afforded to the personnel directly engaged on this Contract. A Safety Manual shall be submitted by the Contractor to DES for approval before commencement of site work. All such safety requirements shall conform strictly to the prudent occupational safety and health regulations and pertinent industry practices being adopted.
| Type | 138KV Single Circuit Intermediate Pole with baseplate and M42 Anchor bolt |
| Suitable Uses | 138kv Power Distribution |
| Shape |
Tubular, Polygonal 12side, 16side , 8side |
| Material |
ASTM 633 , ASTM 572 GR65, Q500 |
| Tolerance of Dimensions | +- 0.05% |
| Power | 138KV,230KV |
| Safety Factor |
Safety factor for conducting wire : 10 Safety factor for grounding wire : 10 |
| Design Load in Kg | 300~ 1000 Kg applied to 50cm from pole top |
| Engraving | Name plate through rivet or glue ,engraving ,embossment as per customers’ requirements |
| Surface Treatment |
Hot Dip Galvanization according to ASTM A123 standards/Powder Coating |
| Joint of Poles |
Insert Mode, Inner Flange Mode, Face to Face Joint Mode. |
| Design of pole | Against earthquake of 8 grade |
| Wind Speed | 270Km/Hour 72m/s |
| Minimum Yield Strength | 450 mpa,460Mpa, 500Mpa |
| Minimum Ultimate Tensile Strength | 550 mpa,570mpa, 590mpa, 600mpa |
| Max Ultimate Tensile Strength | 620 mpa |
| Standard | ISO 9001 |
| Length per section | Within 14.5meter |
| Welding |
Internal and external double welding process produces a seamless surface Welding Standard :AWS ( American Welding Society ) D 1.1 |
| Thickness | 7mm, 8mm, 9.5mm, 11.5mm, 12mm , 17mm, |
| Production Process | Verification of Materials→Cutting→Molding or Bending→Vertical Welding→Verification of Dimensions→Flange Welding→Hole Drilling→Calibration→Deburr Process→Galvanization or Powder Coating ,Painting→Recalibration→Threading→Packaging |

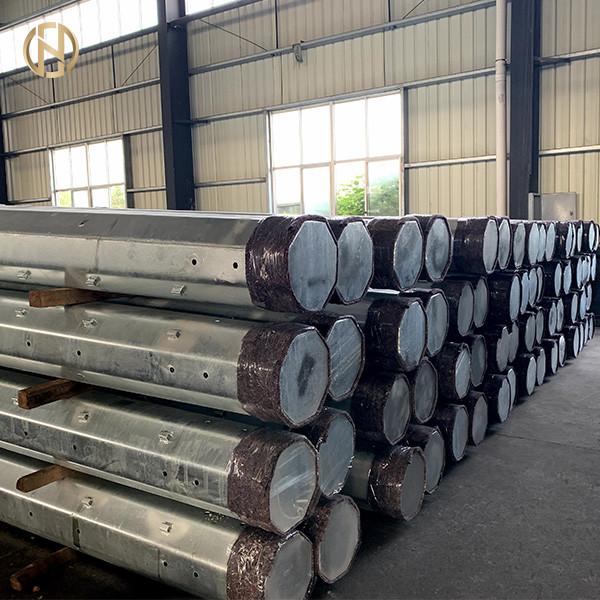

| Packaging | Our poles are usually covered by a mat or straw bale at the top and bottom. Packaging can also be done according to clients’ requirements. |
- Price Term : FOB, CFR or CIF
– The price stated includes pole shaft, base plate, cross arms, anchor bolts and any additional accessories required.
– Shipping Port: Shanghai Port. For FOB, CFR or CIF quotes, please specify which exact shipping model you require, then inform us of the quantity of your order so that we can accurately calculate the local transport charges and sea freight.
- MOQ : 1 set for customized
- Payment: 30% by T/T as initial deposit, remaining balance by T/T or L/C at sight before shipment. Other payment terms can be negotiated.
- Delivery Time : Goods will be ready for shipment within 10 working days after receiving initial deposit
- Warranty : 30 years
- Surface Treatment : Hot Dip Galvanization
We are China 138KV HDG 33M Electric Utility Pole With Baseplate And M42 Anchor Bolt 100FT 105FT 0-5 Degree manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
