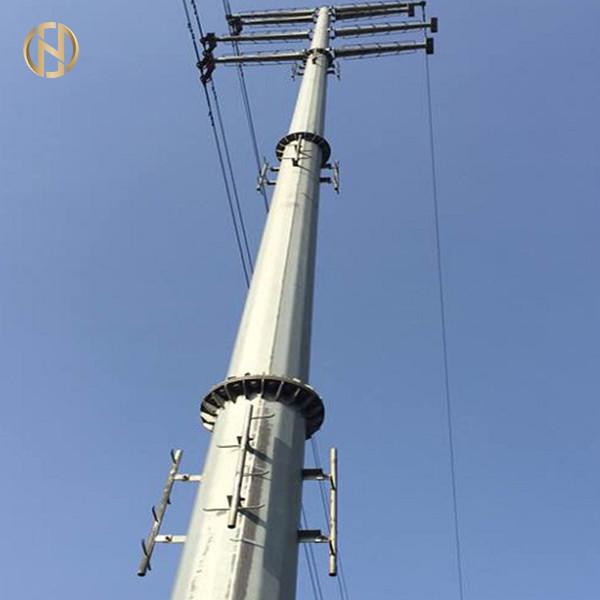

132KV 138KV Metal Power Pole 32 Meter Galvanised Power Pole 12 Side
132KV 138KV Metal Power Pole 32 Meter Galvanised Power Pole 12 Side image
Brand Name :
FUTAO
Model Number :
69KV
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
2 pieces
Price :
28000CNY- 88000CNY
Payment Terms :
L/C, T/T
Supply Ability :
Please talk with our staffs to get more details
Delivery Time :
22 workdays
Packaging Details :
Wrap by mat or straw mat
Material :
Q500C Q460C Q355C
Thickness :
7.75,9.5,17mm
Height :
32Meter
Shape :
tubular 12side
Color :
gray
Surface Treatment :
HDG
132kv 138kv metal power pole, Octagonal Galvanized Power Steel Pole 12side
Product Description
The products above are Customized NEA 50FT 55FT 60FT 65FT 70FT Octagonal Galvanized Power Steel Pole 69KV
- Products are designed and manufactured according to ANSI/TIA-222-G structural standards
- Products are hot dip galvanized according to ISO 1461/ASTM A123 standards
- Pole shaft material : Q500C
- HS. code : 730820
- We possess the ISO 9008 certification and are committed to giving our customers the best products and service
- We provide additional assistance if required including supervision and supplementary components
- We accommodate various designs according to our customers’ specifications
To design in accordance with PLS Poles software, by 3-D drawing. we will require the following design parameters:
- The operational wind speed of the region where the pole will be used
- The Antenna load and height of the pole
- The total height of the pole itself
Product Specifications
| MATERIALS LIST | ||||
| ITEM | STANDARD | minimum YIELD STRESS Fy (Mpa) |
minimum TENSILE STRESS Fu (Mpa) | OBSERVATION t = thickness |
| Poles shaft and base plate and arms | EN 10.025 S355 J0 * | 355 345 335 325 | 470-630 470-630 470-630 470-630 | t = 16 16 < t = 40 40 < t = 63 63 < t = 80 |
| Anchor bolts | Cl 6-8 ISO 898 | 480 | 600 | |
Packaging & Shipping
We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.
Process of Production
Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration→ Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging
FAQ
| Q1. How can I get a price of needed pole? |
|
A: 1. Please provide exact dimensions such as height, pole shaft material type and thickness, top and bottom diameters. We can then give you an accurate quotation based on your specifications. 2. You can send us a detail and assembly drawing; we can then provide you with an accurate quotation based on the drawing. |
| Q2. I am a small wholesaler; do you accept a small order? |
| A: It's not a problem if you are a small wholesaler; we accept orders of various quantities. |
| Q3. I am a designer; Can you help me to produce the sample which we designed? |
| A: Our mission is to help our customers be successful. We are more than happy to help you solve any problems that you may have. |
| Q4: We want be your agent for our area. How do I apply for this? |
| A: Please send your proposal and your company profile. |
| Q5. Tell me about your company? |
| We have been a manufacturer and exporter of all kinds of steel poles including power poles, street lighting poles, telecommunications poles and other steel based products since 2000. Our products have been exported to many regions around the world. |
| Q6. Do you have some special policies for Branded companies? |
| A: Yes, we have some special support for the company who has own brand but are also in our VIP customers list. Please send us a copy of your sales data so we can analyze the best course of action in supporting you for your products in your market. |
| Q7. Do you provide Door to Door service? Because i don't know how to deal with customs clearance. |
| A: We provide Door to Door service to help you reduce shipping time and costs. This is because we have additional discounts with the shipping companies as we have done many shipments in the past. This in turn will save you lots of time and money. |
We are China 132KV 138KV Metal Power Pole 32 Meter Galvanised Power Pole 12 Side manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: metal electrical pole, Metal Power Pole, metal utility polesSimilar Or Related
-
Self Supporting Metal Power Pole 32m 0-30 Degree Dodecagon 166KV Transmission Line
-
Hot Roll Galvanized Metal Power Pole 33KV Class 2 1050daN 11.8m 4mm
-

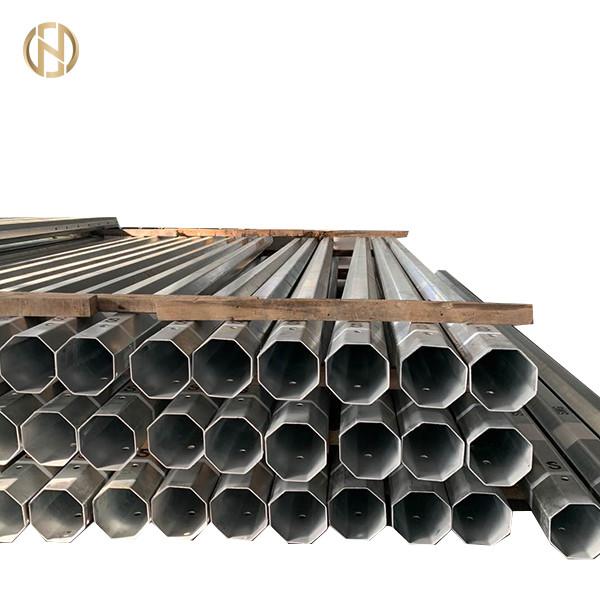

9M Galvanised Steel Utility Pole 350daN 200daN For 11kv Power Distribution
-

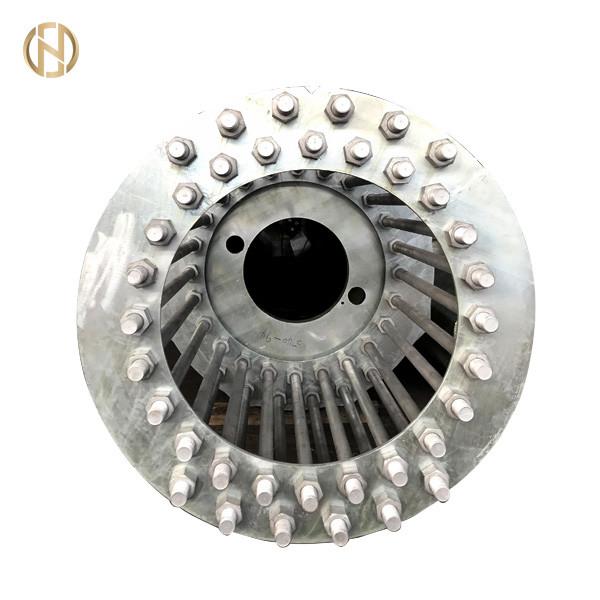

Gray Metal Power Pole For 230KV Transmission Monopole Tower 110FT ASTM A 123
