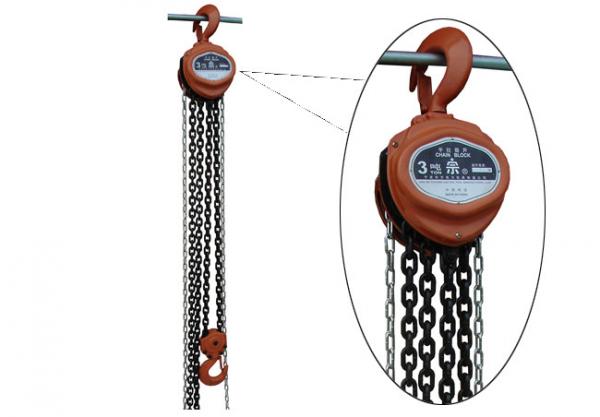

12m Manual Chain Hoist 200KN Transmission Line Stringing Tools
12m Manual Chain Hoist 200KN Transmission Line Stringing Tools image
Brand Name :
Newart
Model Number :
5-200KN
Certification :
ISO,CE
Place of Origin :
Ningbo,Zhejiang,China
MOQ :
1pcs
Price :
Get Latest Price
Payment Terms :
T/T,L/C, Western Union
Supply Ability :
1000pcs/month
Delivery Time :
7-10 days after deposit
Packaging Details :
Pallets and Cartons
Product Name :
Stringing Equipment Steel Wire Rope Manual Chain Hoist
Usage :
Tight line
Conductor Type :
Hoist
Sling Type :
Hand
Material :
Steel
Packing :
Wooden box
Application :
Tight
Warranty :
One Year
5M(Stringing Equipment Steel Wire Rope Manual Chain Hoist
Feature
1. Rated Load: 5~200kN
2. Chains Length: 2.5~12m
3. Steel Made
4. Min. distance between hooks: 280~1040mm
5. The lifting hoists are made of steel and equipped with mechanical brake; they are designed to facilitate and accelerate chain positioning operations.
| Item No. | 14282 | 14292 | 14302 | 14312 | 14321 | 14331 | 14341 | 14351 | |
| Rated load(KN) | 5 | 10 | 15 | 20 | 30 | 50 | 100 | 200 | |
| Minimum distance between hooks(MM) | 280 | 320 | 390 | 410 | 485 | 600 | 820 | 1040 | |
| Standard lifting height(M) | 3 | ||||||||
| Number of lines of lifting chain(row) | 1 | 1 | 1 | 1 | 2 | 2 | 4 | 8 | |
| Net weight(KG) | 10 | 12 | 19 | 20 | 27 | 45.5 | 83 | 193 | |
| Item No. | Lifting height(4M) | 14283 | 14293 | 14303 | 14313 | 14322 | 14332 | 14342 | 14352 |
| Lifting height(5M) | 14284 | 14294 | 14304 | 14314 | 14323 | 14333 | 14343 | 14353 | |
| Lifting height(6M) | 14285 | 14295 | 14305 | 14315 | 14324 | 14334 | 14344 | 14354 | |
| Lifting height(8M) | / | / | / | / | 14325 | 14335 | 14345 | 14355 | |
| Lifting height(10M) | / | / | / | / | 14326 | 14336 | 14346 | 14356 | |
| Weight of 1M chainKG | 1.7 | 1.7 | 2.3 | 2.3 | 3.7 | 5.6 | 9.7 | 19.4 | |
We are China 12m Manual Chain Hoist 200KN Transmission Line Stringing Tools manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
