12.7mm 0.5 Inch Prestressed Concrete Steel Strand Non Roating Grade 270

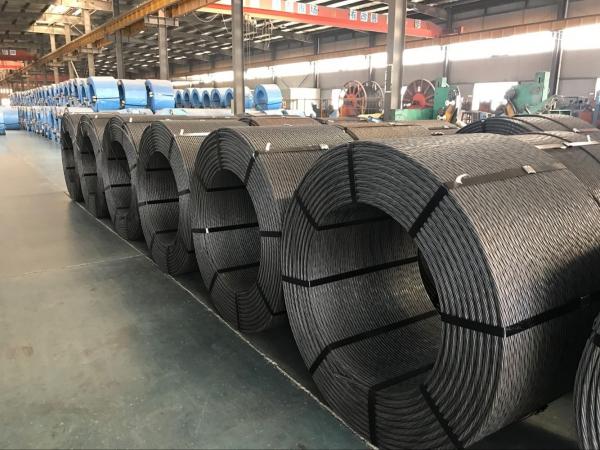

12.7mm 0.5 Inch Prestressed Concrete Steel Strand Non Roating Grade 270 image
Brand Name :
Litong Global
Model Number :
LT-180704
Certification :
ISO9001-2008
Place of Origin :
Anhui,China
MOQ :
10tons
Price :
discuss
Supply Ability :
800tons/day
Packaging Details :
standard export packing in coil on 2 pallets
Size :
12.5/12.7/15.2/15.24/15.7mm
Structure :
1×7
Alloy or Not :
Non-Alloy
Coil Weight :
2.8-3.2tons/coil
Coil Size :
ID 0.70-0.72m, Od 1.0-1.5m, Width 0.76m
12.7mm 0.5 Inch Prestressed Concrete Steel Strand Non Roating Grade 270
12.7mm(0.5") Non-roating PC Strand Grade 270
1*7 Wires Low Relaxation PC Strand
Description:
High tensile low relaxation steel strand for prestressed concrete
Specification:
Raw Material: High carbon steel wire rod SWRH 82B
Sizes: 12.5, 12.7, 12.9, 15.2,15.24, 15.7mm
Standards: ASTM A416-2006, ASTM A910-2005, ABNT NBR 7483:2008, AS 1311(Australia), AS/NZS 4672.1, BS5896-1980, EN10138-3, GB/T5224-2003, IS6006-1983, JISG3536, KSD7002, UNE36094-97 (Spain), NEN3868
Usages:
Pre-stressing steels apply to post-tensioned and pre-tensioned concrete structure in the follow civil engineering, building construction and infrastructure projects: bridges; railway sleeper, subway track board; airport; industrial buildings, commercial buildings, residential housing foundations; PC poles, piles, beams, girders, slabs, double-T board, hollow floor board, floor, parking decks, PHC, PPCP; electric power, nuclear power station; ports, dams, water project, sewage treatment, swimming pool; rock-coil anchoring, side slope stabilization, coil mine; storage tank for national gas, oil, grain; stadiums, TV tower etc.
Technical date :
7-Wire Uncoated Steel Strand for Prestressed Concrete as per ASTM A 416
Min.Breaking Strength |
Nominal Dia. |
Dia. Tolerance |
Norminal Steel Area |
Nominal Weight |
Min. Breaking Load |
Min.Load at 1%Extension |
Min.Elongation Lo≥610mm |
0.7 G.U.T.S 1000hNorminal Relaxation |
MPA | mm | mm | Mm2 | Kg/Km | KN | KN | % | % |
1860 | 9.53 |
+0.66,-0.15 |
54.84 | 432 | 102.3 | 92.1 |
≥3.5 |
≤2.5 |
11.11 | 74.19 | 582 | 137.9 | 124.1 | ||||
12.70 | 98.7 | 775 | 183.7 | 165.3 | ||||
15.24 | 140.0 | 1102 | 260.7 | 234.6 | ||||
17.80 | 190.0 | 1492 | 353.0 | 318.0 | ||||
2000 | 12.70 | +0.66,-0.15 | 98.7 | 775 | 197.4 | 177.7 | ≥3.5 | ≤2.5 |
15.24 | 140.0 | 1102 | 280.0 | 252.0 |
7-Wire Uncoated Steel Strand for Prestressed Concrete as per GB/T5224
Min.Breaking Strength |
Nominal Dia. |
Dia. Tolerance |
Norminal Steel Area |
Nominal Weight |
Min. Breaking Load |
Min.Load at 1%Extension |
Min.Elongation Lo≥610mm |
0.7 G.U.T.S 1000hNorminal Relaxation |
MPA | mm | mm | Mm2 | Kg/Km | KN | KN | % | % |
1860 | 9.50 | +0.30,-0.15 | 54.8 | 432 | 102 | 86.6 |
≥3.5 |
≤2.5 |
11.10 | 74.2 | 580 | 138 | 117 | ||||
12.70 |
+0.40,-0.20 |
98.7 | 775 | 184 | 156 | |||
15.20 | 140 | 1101 | 259 | 220 | ||||
15.70 | 150 | 1178 | 279 | 251 | ||||
17.80 | 191 | 1500 | 353 | 318 | ||||
1960 | 12.70 | +0.40,-0.20 | 98.7 | 775 | 193 | 174 | ≥3.5 | ≤2.5 |
We are China 12.7mm 0.5 Inch Prestressed Concrete Steel Strand Non Roating Grade 270 manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: PC Steel Wire, pc strand wire, seven strand wire
