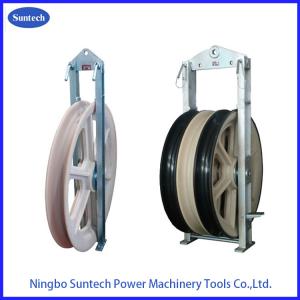

1160mm Large Diameter Conductor Cable Pulling Pulley Stringing Block MC Nylon Block image
1160mm Large Diameter Conductor Cable Pulling Pulley Stringing Block MC Nylon Block
This 1160mm Large Diameter Stringing Block has the conductor diameter of no more than LGJ1250. That is to say,
the aluminum of this conducting wire can possess the maximum cross section of 1250 square millimeters. The block
dimension (outside diameter*root diameter*sheave width) is Φ1160×Φ1000× 150 (mm).
Explain
1.Maximum suitable conductor ACSR1250
2.Sheave dimension ( outside diameter× root diameter × sheave width) Φ1160×Φ1000×150(mm).
3.Sheave dimension for steel wire rope
(outside diameterx root diameter x sheave width) Φ1160×Φ1000×130(mm)
4.Strengthening type three sheave,cast steel sheave for middle sheave.
Specifications
Customized Cable Pulley Block Plastic Guide Pulley 1-3 Sheave 1160mm Diameter
Item number | Model | Number of sheave | Rated load (kN) | Weight (kg) | Feature |
10168-1 | SHDN1160 | 1 | 60 | 65 | Middle :MC nylon sheave |
10168-2 | SHSQNK1160 | 3 | 120 | 220 | Middle :MC nylon sheave Conductor: rubber lined MC nylon sheave |
