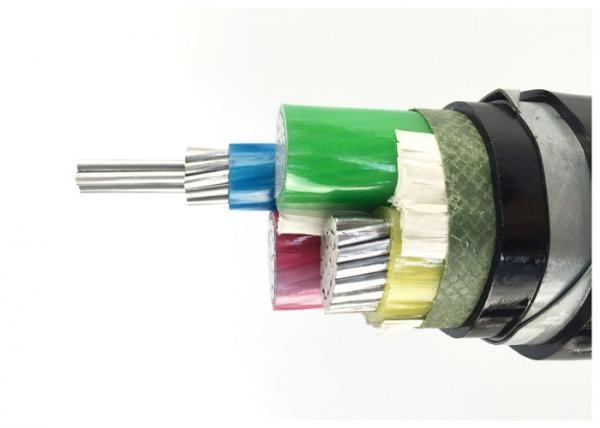

10mm2 25mm2 35mm2 Anti Chemical Corrosion 4 Core XLPE Cable
10mm2 25mm2 35mm2 Anti Chemical Corrosion 4 Core XLPE Cable image
Brand Name :
OEM
Certification :
ISO/RoHS/CE
Place of Origin :
china
MOQ :
200 meters
Payment Terms :
L/C, T/T
Supply Ability :
50000meters per week
Delivery Time :
5-15day
Packaging Details :
wooden drum
Conductor Core :
Copper or Aluminum
Insulation :
Crosslinked Polyethylene (XLPE)
Outer Sheath :
Polyvinyl Chloride (PVC) or Polyethylene (PE)
Armour Type :
STA/SWA/AWA Armoured or Unarmoured
Voltage :
600V to 35KV
Cross Section Area :
0.75mm2-1000mm2
Standard :
IEC60502, BS IEC ASTM DIN, GB/T12706, VDE, UL
Color :
Black (or customized)
Price :
Negotiable
10mm2 25mm2 35mm2 Anti Chemical Corrosion 4 Core Xlpe Cable
Number of cores:
1 core, 2 core , 3 core , 3+1 core, 3+2 core, 4 core, 4+1 core, 5 core
XLPE Electrical Cables Application:
XLPE insulated electrical cable has more advantages than PVC insulated electrical cable including the characteristics of high electric strength, mechanical strength, anti-chemical corrosion etc. In addition xlpe cable has higher long-term working temperature and current-carrying capacity than PVC cable. So xlpe cable is widely used in indoor, tunnel, canal, power plant etc.
XLPE Electrical Cables Service Characteristics:
1. The long working temperature of xlpe cable should not be higher than 90℃.
2. The temperature should not exceed 250℃ in short-circuit (max. 5s).
3. The ambient temperature should be above 0℃ otherwise the cable should be preheated when installed.
4. Bending radius of cable:
single core cable: 20*(D+d)±5% 2~5 core cable: 15*(D+d)±5%
Remarks: D (overall diameter of cable) d (diameter of conductor)
XLPE Electrical Cable Types:
|
|||||||||||||||||||||||||
We are China 10mm2 25mm2 35mm2 Anti Chemical Corrosion 4 Core XLPE Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: 10mm2 4 core xlpe cable, 25mm2 4 core xlpe cable, 4 core low voltage xlpe cable, XLPE Power CablesSimilar Or Related
