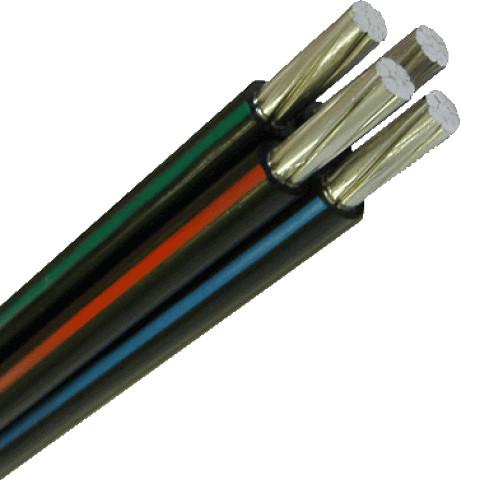

10kV AL Conductor XLPE Insulated Overhead Power Cable JKLGYJ
10kV AL Conductor XLPE Insulated Overhead Power Cable JKLGYJ image
Place of Origin :
China
Brand Name :
Sino
Model Number :
ABC
MOQ :
1000 meters
Packaging Details :
Wooden Drum/Iron Drum/As required.
Delivery Time :
10~30 days as per order
Payment Terms :
TT
Supply Ability :
2000 Kilometers per Month
Insulation Material :
XLPE
Type :
Low Voltage
Application :
Overhead
Conductor Material :
ACSR
Jacket :
NO
Certification :
ISO,CCC
10kV Aerial Cable Al Conductor XLPE Insulated JKLGYJ
Cables for overhead installations may be used in different types of installations: on free hanging facades between posts; on fixed facades; trees and poles. Interception of forest areas without the need of clearance and maintenance of openings is allowed.
– Cables with supporting zero conductor, the whole bundle is suspended and carried by the supporting conductor, which is made of aluminum compound.
– Self-supporting construction, suspension and carrying of the whole bundle is done by the phase insulated conductors.
Bundles can include one or two additional conductors for public lighting and control pair.
http://www.electriccablechina.com [email protected]
| Nominal Cross-sectional Area | Nominal Thickness of Insulation | Approx. OD. | Max. Resistance of Conductor at 20 ℃ | Min. Breaking Load of Cable | Approx. Weight of Completed Cable |
| mm2 | mm | mm | Ω/km | N | Kg/km |
| Jun-35 | 3.4 | 12.7 | 0.868 | 11990 | 285.9 |
| Aug-50 | 3.4 | 13.9 | 0.641 | 11020 | 354.5 |
| 50/30 | 3.4 | 25.9 | 0.641 | 40500 | 564.5 |
| Oct-70 | 3.4 | 15.5 | 0.443 | 22220 | 450.9 |
| 70/40 | 3.4 | 27.1 | 0.443 | 55390 | 718.9 |
| 95/15 | 3.4 | 17.8 | 0.32 | 33250 | 589.1 |
| 95/20 | 3.4 | 18.3 | 0.32 | 35340 | 623.6 |
| 95/55 | 3.4 | 27.3 | 0.32 | 74200 | 956.8 |
| 120/7 | 3.4 | 18.3 | 0.253 | 26190 | 589.9 |
| 1250/20 | 3.4 | 19.1 | 0.253 | 38950 | 690.3 |
| 120/25 | 3.4 | 19.9 | 0.253 | 45480 | 760.8 |
| 120/70 | 3.4 | 27.9 | 0.253 | 93450 | 1167.6 |
| 150/8 | 3.4 | 19.8 | 0.206 | 31220 | 689.1 |
| 150/20 | 3.4 | 20.5 | 0.206 | 44300 | 787.3 |
| 150/25 | 3.4 | 20.8 | 0.206 | 51400 | 842.8 |
| 150/35 | 3.4 | 21.1 | 0.206 | 61770 | 922.7 |
| 185/10 | 3.4 | 21.8 | 0.164 | 38830 | 832.5 |
| 185/25 | 3.4 | 22.4 | 0.164 | 56450 | 963.6 |
| 185/30 | 3.4 | 22.8 | 0.164 | 61100 | 996.5 |
| 185/45 | 3.4 | 24.1 | 0.164 | 76180 | 1116.8 |
| 240/30 | 3.4 | 25.3 | 0.125 | 71840 | 1211.1 |
| 240/40 | 3.4 | 25.9 | 0.125 | 79200 | 1262.2 |
| 240/55 | 3.4 | 26.7 | 0.125 | 97000 | 1422.3 |
We are China 10kV AL Conductor XLPE Insulated Overhead Power Cable JKLGYJ manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
