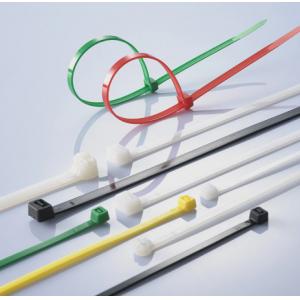

100pcs Uv Resistant Nylon Cable Tie Heavy Duty With Self-Locking
100pcs Uv Resistant Nylon Cable Tie Heavy Duty With Self-Locking image
Nylon Cable Tie-Stainless Steel Barb Locking
1.For indoor and outdoor use
2.One-piece construction for performance and reliablility
3.Lowest threading force of any one-piece cable tie in the industry
4.Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation
5.A variety of materials and color is available for specific applications
6.Working temperature:-40°C~85°C
7.Specification:UL approved material.Heat resistant,color are available
8.Material:Nylon 66;94v-2
| Part Number | Approx.Length mm(inch) |
Approx.Width mm(inch) |
Max.Bundle Dia. mm(inch) |
Min.loop Tensile Strength N(bs) |
| ST1-3X100 | 100(3.94) | 3(0.118) | 22(0.87) | 80(18) |
| ST1-4X150 | 150(5.91) | 4(0.157) | 35(1.38) | 160(36) |
| ST1-4X200 | 200(7.87) | 4(0.157) | 53(2.09) | 160(36) |
| ST1-5X250 | 250(9.84) | 5(0.197) | 65(2.56) | 200(45) |
| ST1-5X300 | 300(11.81) | 5(0.197) | 76(2.99) | 200(45) |
| ST1-5X380 | 380(14.96) | 5(0.197) | 102(4.02) | 200(45) |
| ST1-6X200 | 200(7.87) | 6(0.236) | 53(2.09) | 220(49.5) |
| ST1-7X300 | 300(11.81) | 7(0.276) | 76(2.99) | 250(56.3) |
| ST1-8X145 | 145(5.7) | 8(0.315) | 34(1.33) | 250(56.3) |
| ST1-8X175 | 175(6.89) | 8(0.315) | 43(1.69) | 250(56.3) |
| ST1-8X200 | 200(7.87) | 8(0.315) | 53(2.09) | 250(56.3) |
| ST1-8X240 | 240(9.45) | 8(0.315) | 64(2.52) | 250(56.3) |
| ST1-8X300 | 300(11.81) | 8(0.315) | 76(2.99) | 250(56.3) |
| ST1-8X400 | 400(15.75) | 8(0.315) | 102(4.02) | 500(112.5) |
| ST1-10X300 | 300(11.81) | 10(0.394) | 76(2.99) | 500(112.5) |
| ST1-10X350 | 350(13.78) | 10(0.394) | 97(3.82) | 500(112.5) |
| ST1-10X400 | 400(15.75) | 10(0.394) | 102(4.02) | 550(123.7) |
| ST1-10X450 | 450(17.72) | 10(0.394) | 120(4.72) | 550(123.7) |
| ST1-10X600 | 600(23.62) | 10(0.394) | 186(7.32) | 550(123.7) |
We are China 100pcs Uv Resistant Nylon Cable Tie Heavy Duty With Self-Locking manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
