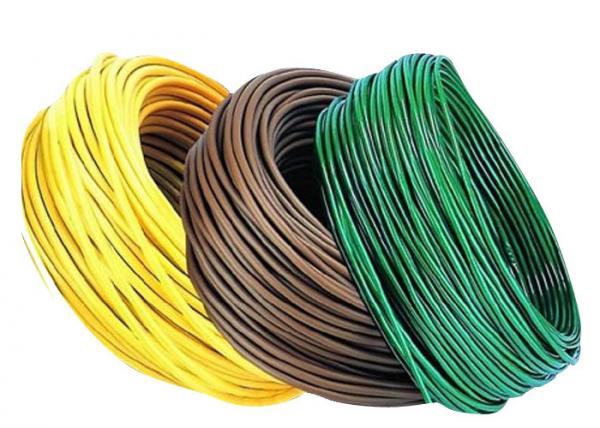

100M Length Low Smoke Zero Halogen Cable 1.5MM 2.5MM 4MM Electrical Wire Roll

100M Length Low Smoke Zero Halogen Cable 1.5MM 2.5MM 4MM Electrical Wire Roll image

Get a Quote Email to us

Brand Name :
HOLD-ONE

Certification :
CE/KEMA/CCC/TUV

Place of Origin :
China

MOQ :
500M

Price :
0.1USD to 5.0USD

Payment Terms :
L/C, T/T

Supply Ability :
100km/days

Delivery Time :
Within one week

Packaging Details :
100m/Roll

Size :
0.5mm2 -10mm2

Cable Type :
House Wiring Cable

Standard :
IEC60227,IEC60754

Rated Voltage :
450/750V

Structure :
CU/PO

Insulation Color :
As per Requirement

Working Degree :
70℃

Professional 100M Length LSZH Cable , 1.5MM 2.5MM 4MM Electrical Wire Roll

Single-core non-sheathed cables with flexible conductor for internal wiring for a conductor of 90℃
Code designation: 60227 IEC 08 (International)

Application
pvc insulated electric wire/buidling wire is suitable for use in power installations, fixed wiring or flexible connections for electrical
appliance like lighting, electronic equipment, instrument and communication equipment with rated
voltage 450/750V or less.

Construction
Conductor : cu
Insulation : PVC

Specifications

Nominal area of conductor	No./Dia. Of Conductor	Max.O.D	Approx.Weight	Max. D.C Resistance of Conductor (20 ℃)Ω /km
mm2	mm	mm2	kg/km	Ω /km
0.5	1/0.80	2.3	8.5	36.0
0.75(A)	1/0.97	2.5	11.1	24.5
0.75(B)	7/0.37	2.6	12.0	24.5
1.0(A)	1/1.13	2.7	13.9	18.1
1.0(B)	7/0.43	2.8	15.0	18.1

Nominal area of conductor	No./Dia. Of Conductor	Max.O.D	Approx.Weight		Max. D.C Resistance of Conductor (20 ℃)Ω /km
mm2	mm	mm2	kg/km		Ω /km
mm2	mm	mm2	Copper	Aluminium	Aluminium	Copper
1.5(A)	1/1.38	3.2	20.3			12.1
1.5(B)	7/0.52	3.3	21.6			12.1
2.5(A)	1/1.78	3.9	31.6	17	11.8	7.41
2.5(B)	7/0.68	4.0	34.8	17	11.8	7.41
4(A)	1/2.55	4.4	47.1	22	7.39	4.61
4(B)	7/0.85	4.6	50.3	22	7.39	4.61

Temperature range :
during installationi : +5 °C up to +90 °C
fixed installed : -30 °C up to +70 °C
at short circuit of max. 5 s : up to 150 °C
ambient temperature at storage : up to 40 °C
Nominal voltage : Uο/U = 300/500 V
Test voltage : 2000 V
Minimal inner bending radius : 4D for D < 8 mm
5D for 8 – 12 mm
6D for D > 12 mm

We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.

We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!

About us

Founded in 2000, HOLD-ONE. is a modern large-scale enterprise specializing in R&D and manufacturing of wire and cable. The company has an insulated wire workshop, a low voltage cable workshop, a high voltage cable workshop and cable accessories, and a copper processing workshop. It consists of administrative affairs department, marketing department, technology research and development department, quality management department, planning and finance department, material supply department, safety production department, etc., and has sales and service organizations in 106 large and medium cities across the country. The company's leading products are: rubber sheathed flexible cable, polyethylene sheathed flexible cable, PVC insulated control cable, PVC insulated power cable, overhead insulated cable, aluminum stranded wire and steel core aluminum stranded wire, PVC insulated Sheath (soft) wire and cable, etc., and focus on the development and production of low-smoke halogen-free, low-smoke low-halogen, pre-branch cable and various flame retardant, fire-resistant, shielding and other special cables up to more than 10,000 specifications. The annual production capacity can reach 1 billion yuan. Companies can produce according to national or international standards.

We are China 100M Length Low Smoke Zero Halogen Cable 1.5MM 2.5MM 4MM Electrical Wire Roll manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
