1000FT per box Cat6/6A UTP 23AWG BC Conductor Networking Lan Cable

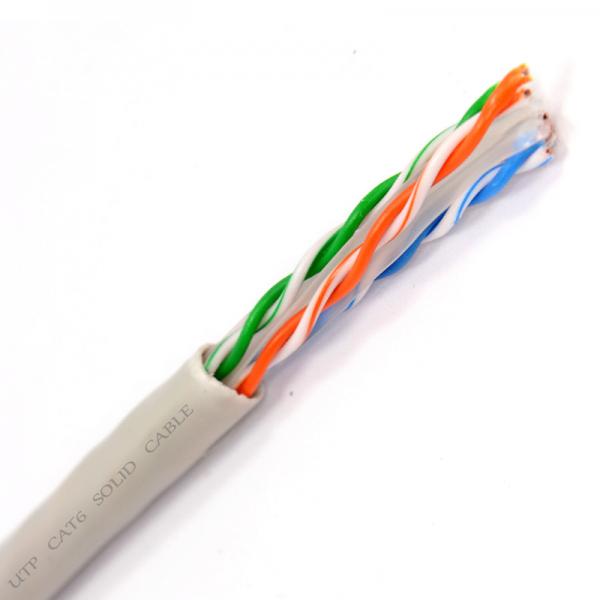

1000FT per box Cat6/6A UTP 23AWG BC Conductor Networking Lan Cable image
Brand Name :
JHY CABLE
Model Number :
CAT6 UTP
Certification :
RoHS/CE/CCC
Place of Origin :
SHENZHEN CHINA
MOQ :
1 Box / 305M
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000M/Day
Delivery Time :
7 Days
Packaging Details :
Packed in a box (305m)
Application :
Networking
Type :
Cat6
Color :
Blue/Red/Black/Grey
Pairs :
4
Conductor :
23AWG Bare Copper
Shield :
UTP
Insulation :
HDPE
Sheet :
PVC
1000FT per box Cat6/6A UTP 23AWG BC Conductor Networking Lan Cable
Production Description:
Application
• IEEE 802.3 1000Base-T, 100Base-Tx 10Base-T, PoE+
• ANSI/TIA 854: 1000Base-TX
• CDDI, Token Ring, ATM
• Digital Video
• Broadband and Baseband Analog Video
DESCRIPTION
• 23 AWG 4 Pair F/UTP Category 6 cable tested to 550Mhz premium grade, high performance for top level network cabling for maximum headroom and bandwidth. Available in wood reel for easier installation.
STANDARD COMPLIANCES
• ANSI/TIA 568-C.2
• ANSI/TIA 862 (Building Automation)
• ISO/IEC 11801 Ed. 2.0 (Class EI) • ICEA 8-102-700 (Category 6 or 5E)
• REACH Compliant
• CPR Compliant (Fully Complies to 305/2011 & EN 50575:2014-09)
• RoHS Compliant Directive 2002/95/EG
FEATURES AND BENEFITS
• Cross web filler for enhanced performance
• Rugged jacket for outside plant applications
• UV resistant polyethylene jacket
• Water blocking tape
• Sequential footage markings
• Verified by third-party for guaranteed performance
ELECTRICAL PERFORMANCE
| 1.0-250.0MHz Impedance (ohms) | 100 ± 15 |
| 1.0-250.0MHz Delay Skew (ns/100m) | <=45 |
| Pair-to-Ground Capacitance Unbalance (pF/100m) | <=330 |
| Max. Conductor DC Resistance 20oC (ohms/km) | 95 |
| Resistance Unbalance (%) | <=5 |
PHYSICAL PROPERTIES
| Conductor | Solid Bare Copper |
| AWG | 23 |
| Conductor Dia. (+/-0.005mm) | 0.57 |
| Insulation | HDPE |
| Outer Dia.(±0.20mm) | 7.90 |
MECHANICAL CHARACTERISTICS
| Test Object | Jacket | |
| Test Material | LLDPE | |
| Before | Tensile Strength (Mpa) | >=13.8 |
| Aging | Elongation (%) | >=300 |
| Aging Condition (oCxhrs) | 100×168 | |
| After | Tensile Strength (Mpa) | >=75% of unaged |
| Aging | Elongation (%) | >=75% of unaged |
| Cold Bend(-40±2oCx4hrs) | No crack |
Construction
| 1. Conductor material: | Solid bare copper 0.57mm (23 AWG) | |
|
2. Insulation material: |
HDPE (High density Polyethylene) |
|
| 3. Outer sheath material: | PVC | |
| 4. rip cord: | Nylon | |
| 5.Separator: |
cross filler |
Packaging
| Approx.Weight | Package | box Dimension(cm) | Packages per 20 ft container |
| 14.2 kg | 305m/roll pull box | 42 x 24 x 42 |
800 box |
6. Product Image
Company Contact Information:
| OUR SERVICE | |
|
Our products:
1) PVC Insulation Electrical Wires;
2) XLPE Insulated Power Cables; 3) Medium and High Voltage Power Cables; 4) Aerial Bundled Cables; 5) Mineral Insulated Fire Resistant Cables 6) Control Cables, Instrument Cables, Communication Cables etc.
To provide quality products and excellent service are our missions. OEM and ODM are welcome. Above we provide a wide range of products’ information, any further information you need please contact us as below: Our entire team can serve you and look forward to working with you. |
Shenzhen Jinhuanyu Wire and Cable Co., Ltd. Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc
Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106 |
We are China 1000FT per box Cat6/6A UTP 23AWG BC Conductor Networking Lan Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
