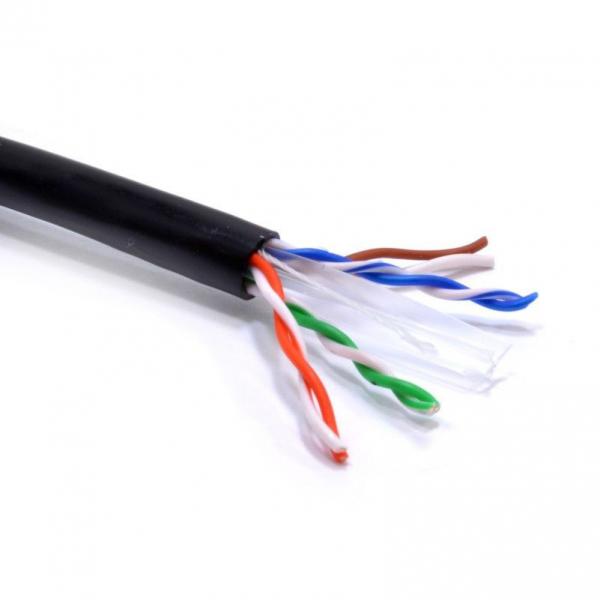

1000ft (305m) Cat6 Cable Unshielded (UTP) Solid Copper CMR Black Bulk Ethernet Cable
1000ft (305m) Cat6 Cable Unshielded (UTP) Solid Copper CMR Black Bulk Ethernet Cable image
Brand Name :
JHY CABLE
Model Number :
CAT6 UTP
Certification :
RoHS/CE/CCC
Place of Origin :
SHENZHEN CHINA
MOQ :
1 Box / 305M
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000M/Day
Delivery Time :
7 Days
Packaging Details :
Packed in a box (305m)
Application :
Networking
Type :
Cat6
Color :
Blue/Red/Black/Grey
Pairs :
4
Conductor :
23AWG Bare Copper
Shield :
UTP
Insulation :
HDPE
Sheet :
PVC
1000ft (305m) Cat6 Cable Unshielded (UTP) Solid Copper CMR Black Bulk Ethernet Cable
Production Description:
Application:
Our blue bulk 1000 foot solid Cat6 Ethernet cable comes in an easy to use pull box and is ideal for the person looking to make longer permanent network runs during installation/expansion of network infrastructure.
Cat6 Cable is used in network applications and have been designed specifically for Gigabit Ethernet applications. They perform at high-data transfer rates, and work with ATM and gigabit speed products.
This particular cable is a blue UTP (Unshielded Twisted Pair) solid cable. The individual conductors are 23 AWG (American wire gauge) solid pure copper. Pure copper conductors provide the best signal possible. Cat6 cable includes a spline to help ensure separation between the pairs which limits cross talk. Our Cat6 Ethernet cable exceeds the EIA/TIA-568-C standard.
Electrical Characteristics:
| Conductor Resistance | Max. 9.38 O /100m |
| Conductor Resistance Unbalance | Max. 5 % |
| Mutual Capacitance | Max. 5.6 nF/100m |
| Capacitance Earth Unbalance | Max. 330 pF/100m |
| Propagation Delay @ 1,10,100,250MHz | Max. 570, 545, 538 & 536 ns/100 m |
| Propagation Delay Skew 1 – 250 MHz | Max. 45 ns/100 m |
Features:
23 AWG Solid Cable
Fluke Past Test Cable
Plenum Jacket (CMP Rated)
550MHz Cable Performance
ETL Listed RoHS Compliant
Solid Pure Copper Conductor
4 Pair Un-shielded Twisted Pair (UTP) cable
EZ pull out, foot marked and easy to use a box
Meet and exceed ISO/IEC/RoHS standards and specifications
Colour Code:
| Pair 1 | : White/Blue -Blue; |
| Pair 2 | : White/Orange -Orange; |
| Pair 3 | : White/Green -Green; |
| Pair 4 | : White/Brown -Brown |
Cable Diameter , Standard Length & Packing:
| Cable Diameter | : 6.35 mm (Max.) |
| Available Packaging | : 305 mtr Pull box Or 500 / 1000 mtr spool |
| Available Colour | : Grey or As Per Customer Requirement |
Construction
| 1. Conductor material: | Solid bare copper 0.57mm (23 AWG) | |
|
2. Insulation material: |
HDPE (High density Polyethylene) |
|
| 3. Outer sheath material: | PVC | |
| 4. rip cord: | Nylon | |
| 5.Separator: |
cross filler |
Packaging
| Approx.Weight | Package | box Dimension(cm) | Packages per 20 ft container |
| 14.2 kg | 305m/roll pull box | 42 x 24 x 42 |
800 box |
6. Product Image
