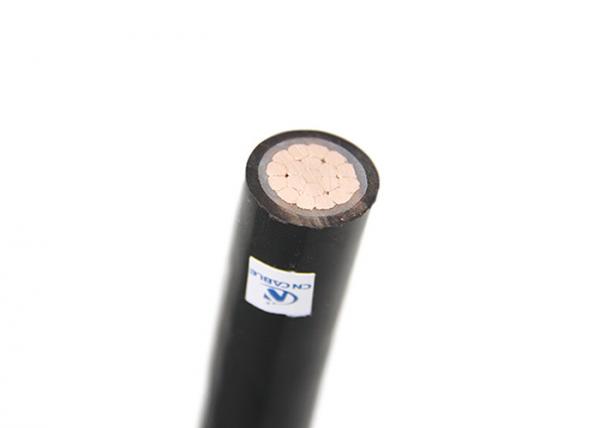

1 Core LV XLPE 50mm2 Low Voltage Armored Cable
1 Core LV XLPE 50mm2 Low Voltage Armored Cable image
A cable is a conductor covered with an insulating layer, a protective layer, a shielding layer, etc. used to transmit power, signal current, or signal voltage. According to the voltage, it can be divided into high-voltage cable and low-voltage cable. Compared with low-voltage overhead lines and low-voltage overhead insulated lines, low-voltage cable lines are more costly and difficult to lay and maintain, but because of their reliable operation, they do not stand on poles, do not occupy the ground, are unobtrusive, and are less affected by the outside world. Characteristics, and is widely used in low-voltage distribution systems.
Application:
Structure
1. Copper conductor
2. XLPE insulated
3. Cable dia.50 mm2
4. Cable core number: 1Core
5. PVC outer sheath
Characters:
| Single(1) core, 50mm2 XLPE Insulated Power Cable | |||||||||
| Size | Cable dia. | Cable weight | |||||||
| None- | Steel tape armored | Steel wire armored | None- | Steel tape armored | Steel wire armored | ||||
| armored | armored | ||||||||
| CU | AL | CU | AL | CU | AL | ||||
| mm2 | mm | kg/km | |||||||
| 35 | 11.7 | 16.5 | 17.8 | 389 | 179 | 564 | 355 | 610 | 401 |
| 50 | 13.1 | 17.9 | 19.2 | 525 | 231 | 719 | 425 | 768 | 474 |
| 70 | 15 | 19.8 | 21.1 | 717 | 305 | 935 | 522 | 988 | 575 |
We are China 1 Core LV XLPE 50mm2 Low Voltage Armored Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: 50mm2 Low Voltage Armored Cable, LV Power Cable, XLPE Low Voltage Armored CableSimilar Or Related
