1 Core 300mm2 Allied Wire And Cable 15/25/35KV ABC Aluminium Cable

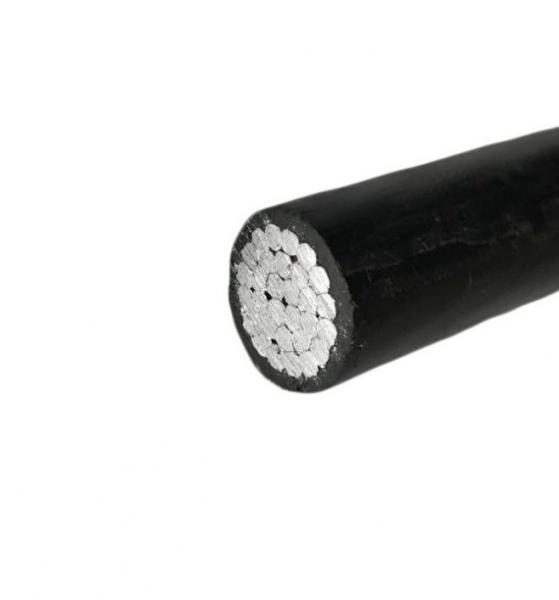

1 Core 300mm2 Allied Wire And Cable 15/25/35KV ABC Aluminium Cable image

Get a Quote Email to us

Brand Name :
Nuocing

Certification :
CE/CCC/ISO9001

Place of Origin :
China

MOQ :
1000 meters

Price :
USD 1-5

Payment Terms :
L/C, T/T, Western Union

Supply Ability :
1000 km per month

Delivery Time :
10-20 days

Packaging Details :
standard export packing in wooden drums or boxes

Product Name :
1 Core Aluminum Overhead Allied Wire & Cable 15/25/35KV

Conductor material :
Aluminum

Application :
Overhead

Insulation material :
XLPE

Standard :
IEC60502

Cross section :
35~300 MM²

1 Core XLPE Insulated Aluminum Overhead Allied Wire & Cable 15/25/35KV

Application:

The XLPE 15/25/35 KV aluminum overhead cable features a compact round conductor typically made of aluminum strands, blocked or not, and comes with a cross-linked polyethylene (XLPE) cover in black or gray color, with special characteristics to be resistant against electric tracking and UV-rays.

As XLPE is a thermoset material, the 15KV aluminum conductor insulated cable enables operation up to 90°C continuously all while delivering higher capacity when compared to the thermoplastic materials.

Main applications for insulated aluminum cables is on compact overhead, primary power distribution, medium-voltage networks located in urban and wooded areas. These overhead cables are an excellent technical and economic option for companies all over the world, since they have such advantages as low manufacturing cost and ease of installation.

Introduction:

Overhead cable (full name overhead insulated cable) is an overhead wire equipped with an insulating layer and a protective sheath. It is a special cable manufactured by a production process similar to that of a cross-linked cable. It is a new power transmission between overhead wires and underground cables. Way. Overhead cables are single-core. According to their different structures, they can be divided into hard aluminum wire structure, hard drawn copper wire structure, aluminum alloy wire structure, steel core or aluminum alloy core support structure and self-supporting three-core pattern structure (wire The core can be hard aluminum or hard copper wire) and so on. It has the main characteristics of high reliability of power supply, good power supply safety, convenient installation and maintenance, and reasonable economy. Its main technical parameters include weather resistance, insulation level, internal and external semi-conductive shielding layer. Overhead cables are widely used in power transmission at home and abroad.

Product parameter:

Product name	Aluminum Overhead Cable
Certifications	ISO9001/ISO14001 /OHSAS18001/CCC
Standard	GB, IEC, BS, ASTM
Rated voltage	15/25/35 KV
Test voltage	4 KV
Phase Conductor	Stranded Aluminum Wires
Insulation	Cross-linked polyethylene (XLPE)
Neutral	AAC AAAC ASCR
Laying temperature	min. -20
Operating temperature	-30 to +80
OEM	Available

FAQ:

Q1. Are you trading company or manufacturer ?

A: We are professional manufacture with our own independent export rights.

Q2. What if I don’t find the type and size of cable I need on this page?

A: Don't worry. Contact us and send us your requirements, we will help you choose the correct cable you need. It is better if you have the following information: cable voltage, conductor material, insulation and outer sheath material, armor type. Otherwise, you can provide us with cable installation environment, application requirements, etc.

Q3. Can you produce according to the samples ?

A: Yes, we can produce by your samples or technical drawings.

Q4. How long is you delivery time ?

A: Depends on your quantity, normally 1-3 weeks.

Aluminium Overhead Cables

We are China 1 Core 300mm2 Allied Wire And Cable 15/25/35KV ABC Aluminium Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
