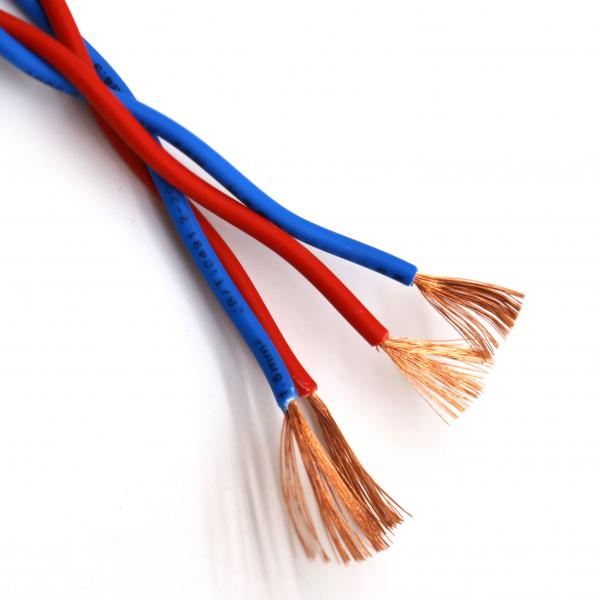

1.5mm2 OFC Conductor Flexible Electrical Cable PVC Insulated Twin Flat RVS Twisted
1.5mm2 OFC Conductor Flexible Electrical Cable PVC Insulated Twin Flat RVS Twisted image
Brand Name :
JHY CABLE
Model Number :
RVS cable-03
Certification :
RoHS/CE/CCC/CB
Place of Origin :
SHENZHEN CHINA
MOQ :
10 boxs
Price :
Negotiable
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000m/day
Delivery Time :
3-8 day
Packaging Details :
100m/roll
Product name :
Electric cable
Conductor :
OFC/BC
Size :
2*1.5
Color :
Customized
Application :
Instrumentation
MOQ :
2000M
1.5mm2 OFC conductor PVC insulated twin flat RVS Twisted Electric cable
1. Production Application
Apply to building intelligent alarm system of multi-core control, Building intercom system, three tables automatic reading system,electric appliance internal control,control meter of computer,electronic equipment and automatic device etc.Blasting Cable is useful for power leads for explosive devices,Mining, Gold Mining,Blasting underground rocks.
2. Company Certificates
ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, UL,China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.
| RVS Flexible Cable | |
| Category: | RVH wire, RVB wire |
| Specification: | 2 Cores |
| Conductor | 2*0.12*42mm,2*0.12mm*81,2*0.14*14mm,2*0.14*54mm |
| Material | Oxygen free copper |
| Jacket: | New PVC |
| Color: | Red and Green,Black and Red,Transparent Golden and Blue |
| Meters: | 1mtrs-100mtrs,100-200m,200-305m |
| Application: | Telecommunication, Computer networks, Instrumentation,Lighting |
1. The permissble long-term working temperature of the cable conductor: PVC insulated is 70 °C. During the cable laying, the ambient temperature must be above 0 °C.
2. The permissible bending radius in cable laying and installing.
a). For unarmoured cable, it shall not be less than 6 times of external diameter of cable.
b). For armoured or copper tape screened cable, it shall not be less than 12 times of the external diameter of cable.
c). For the flexible cable with screen layers, it shall not be less than 6 times of the external diameter of cable.
5. Type & Special
|
No×Area of conductor mm² |
Upper limit of average outer diameter mm |
Max conductor resistance at 20℃ Ω/km |
Min insulation resistance at 70℃ Ω/km |
Recommended value of current carrying capacity A | Reference weight kg / km |
| 2*0.5 | 6.0 | 39.0 | 0.016 | 9 | 22 |
| 2*0.75 | 6.2 | 26.0 | 0.014 | 12 | 29 |
| 2*1 | 6.6 | 19.5 | 0.013 | 14 | 34 |
| 2*1.5 | 7.2 | 13.3 | 0.012 | 18 | 46 |
| 2*2.5 | 8.2 | 7.98 | 0.0095 | 25 | 66 |
| 2*4 | 9.5 | 4.95 | 0.0079 | 33 | 96 |
| 2*6 | 11.6 | 3.30 | 0.0081 | 42 | 145 |
| Quantity(box) | 10 | 100 |
| EST.time(day) | 3-5 | 5-15 |
Company Contact Information:
| OUR SERVICE | |
|
To provide quality products and excellent service are our missions. OEM and ODM are welcome. Above we provide a wide range of products’ information, any further information you need please contact us as below:
Our entire team can serve you and look forward to working with you.
|
Shenzhen Jinhuanyu Wire and Cable Co., Ltd. Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc
Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106 |
We are China 1.5mm2 OFC Conductor Flexible Electrical Cable PVC Insulated Twin Flat RVS Twisted manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
