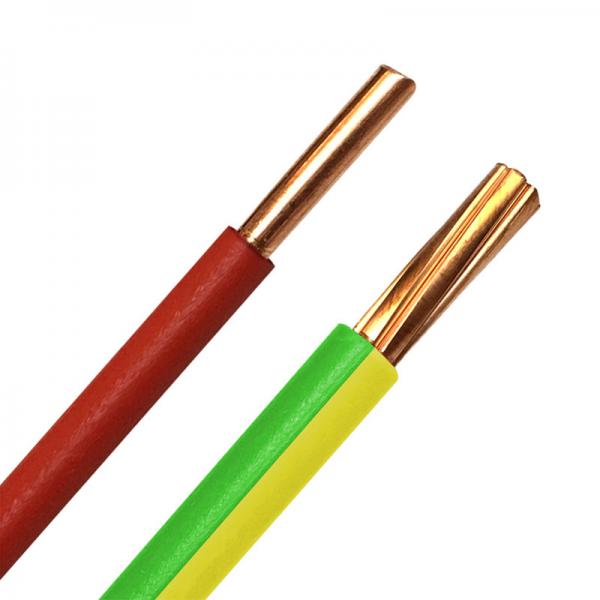

1.5mm2 2.5mm2 4mm2 Copper Conductor PVC Insulated Cable , H07V-U H07v R Cable 450/750V
1.5mm2 2.5mm2 4mm2 Copper Conductor PVC Insulated Cable , H07V-U H07v R Cable 450/750V image
Brand Name :
JHY CABLE
Model Number :
H07V-U
Certification :
ROHS/CCC/VDE/CE/On request
Place of Origin :
SHENZHEN CHINA
MOQ :
500M
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20000KM/Day
Delivery Time :
7 Days
Packaging Details :
100M/Roll
Conductor Material :
Copper
Rated Voltage :
300/500V,450/750V
Conductor Type :
solid
Core :
Single core
Insulation Material :
PVC
Size :
0.5mm To 95mm
Packing :
100m/roll
Color :
Brown, blue, red, black, yellow/green, or others
1.5mm2 2.5mm2 4mm2 copper conductor pvc insulation H07V-U H07V-R Cable 450/750V
1. Application:
H05V-U / H07V-U are harmonized PVC European single-conductor hook-up wires with a solid bare copper core. Ideal for the internal wiring of appliances, apparatus, switchboards and distributor boards or where a solid core is required. Suitable in dry rooms for fixed and flexible laying. May be used for exposed and embedded conduits. Found in electronic and electrical equipment and switchgear cabinets designed for export to a European country for MRO replacement of European made equipment wire.
The Cable is suitable for use in power installations, fixed wiring or flexible connections for electrical appliances, Like lighting, electronic equipment, instrument and communication equipment with rated voltage 300/500V, 450/750V, The Operating temperature: Allowing the wire of work for long time should not exceed +70 centigrade.
2. Standard:
GB/T 5023-2008, BS 6004, IEC 60227, VDE
3. Model and Name
| Model | Name |
| BV | Copper Core PVC Insulation Wire |
| BLV | Aluminum Core PVC Insulation Wire |
| BVR | Copper Core PVC Insulation Flexible Wire |
| BVV | Copper Core PVC Insulation PVC Sheath Round Wire |
| BVVB | Copper Core PVC Insulation PVC Sheath Flat Wire |
| BLVVB | Aluminum Core PVC Insulation PVC Sheath Flat Wire |
| BV-90 | Copper Core Heat-resistance 105oC PVC Insulation |
4. Specification Size and Technical Data
| Nominal sectional area mm2 |
Conductor No/Dia. mm |
Nominal Insulated thick mm |
Max overall Dia. mm |
Condcutor Resistance at 20 |
Min insulated resistance at 70MΩ/km |
Weight Kg/km |
||
| Cu | Al | Cu | Al | |||||
| 1.5 | 1/1.38 | 0.7 | 3.3 | 12.1 | – | 0.011 | 19.2 | – |
| 1.5 | 7/0.52 | 0.7 | 3.5 | 12.1 | – | 0.010 | 20.6 | – |
| 2.5 | 1/1.78 | 0.8 | 3.9 | 7.41 | 11.8 | 0.010 | 30.8 | 15.0 |
| 4 | 1/2.25 | 0.8 | 4.4 | 4.61 | 7.39 | 0.0085 | 45.5 | 21.0 |
| 6 | 1/2.76 | 0.8 | 4.9 | 3.08 | 4.91 | 0.0070 | 65.0 | 29.0 |
| 10 | 7/1.35 | 1.0 | 7.0 | 1.83 | 3.08 | 0.0065 | 110.0 | 52.0 |
| 16 | 7/1.70 | 1.0 | 8.0 | 1.15 | 1.91 | 0.0050 | 170.0 | 70.0 |
| 25 | 7/2.14 | 1.2 | 10.0 | 0.727 | 1.20 | 0.0050 | 270.0 | 110.0 |
| 35 | 7/2.52 | 1.2 | 11.5 | 0.524 | 0.868 | 0.0040 | 364.0 | 150.0 |
| 50 | 19/1.78 | 1.4 | 13.0 | 0.387 | 0.641 | 0.0045 | 500.0 | 200.0 |
| 70 | 19/2.14 | 1.4 | 15.0 | 0.268 | 0.443 | 0.0035 | 688.0 | 269.0 |
| 95 | 19/2.52 | 1.6 | 17.5 | 0.193 | 0.320 | 0.0035 | 953.0 | 360.0 |
| 120 | 37/2.03 | 1.6 | 19.0 | 0.153 | 0.253 | 0.0032 | 1168.0 | 449.0 |
| 150 | 37/2.25 | 1.8 | 21.0 | 0.124 | 0.206 | 0.0032 | 1466.0 | 551.0 |
| 185 | 37/2.52 | 2.0 | 32.5 | 0.099 | 0.164 | 0.0032 | 1808.0 | 668.0 |
5. Product Image
Company Contact Information:
| OUR SERVICE | |
|
To provide quality products and excellent service are our missions. OEM and ODM are welcome. Above we provide a wide range of products’ information, any further information you need please contact us as below: Our entire team can serve you and look forward to working with you. |
Shenzhen Jinhuanyu Wire and Cable Co., Ltd. Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc
Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106 |
We are China 1.5mm2 2.5mm2 4mm2 Copper Conductor PVC Insulated Cable , H07V-U H07v R Cable 450/750V manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: Flexible Electrical Cable, sheathed electrical cable, shielded electrical cableSimilar Or Related
-
3×2.5mm2 Copper Conductor PVC Flexible Electrical Cable Insulation PVC Sheath H05VV-F RV 450/750V
-
5G X 0.5mm2 Oil Acid Resistant Cable , H05VVF Overhead Electric PVC Insulated Wire Cable
-

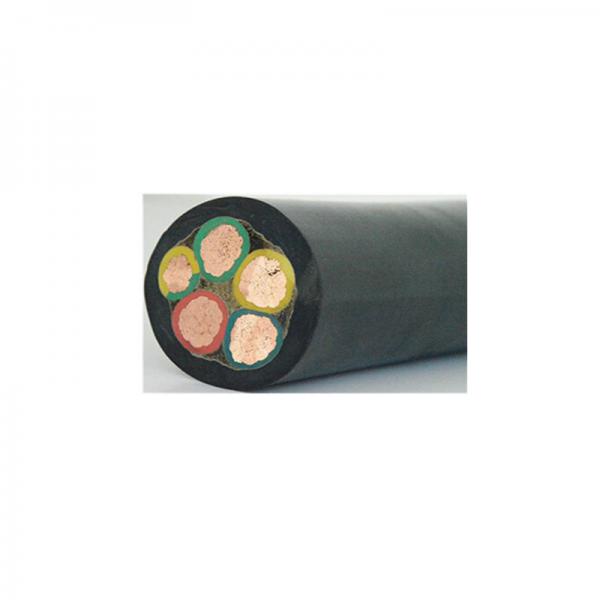

Outdoor Waterproof Flexible Electrical Cable Electrical Rubber Copper Power For Industrial
-
